117mm

REAR TRAVEL

130mm

FRONT TRAVEL

29"

WHEELS

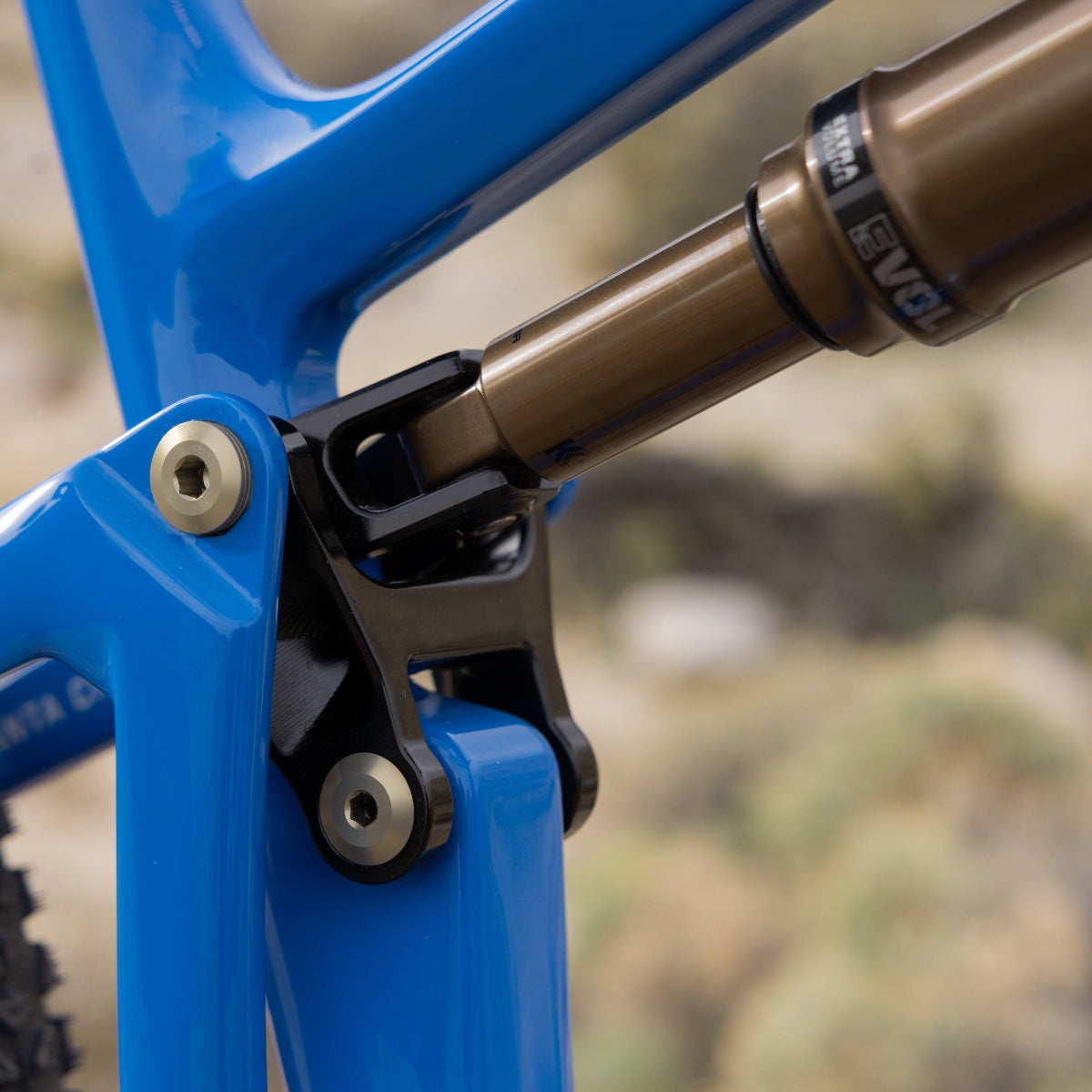

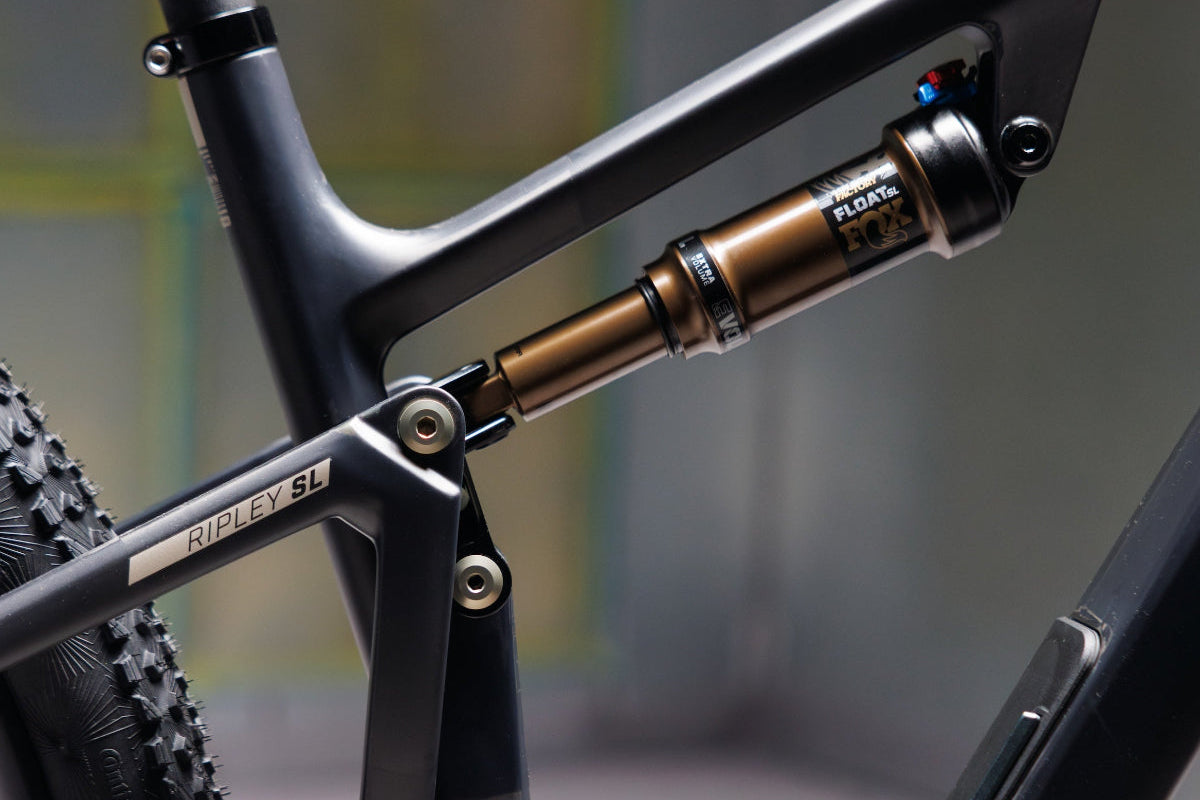

DW LINK

SUSPENSION

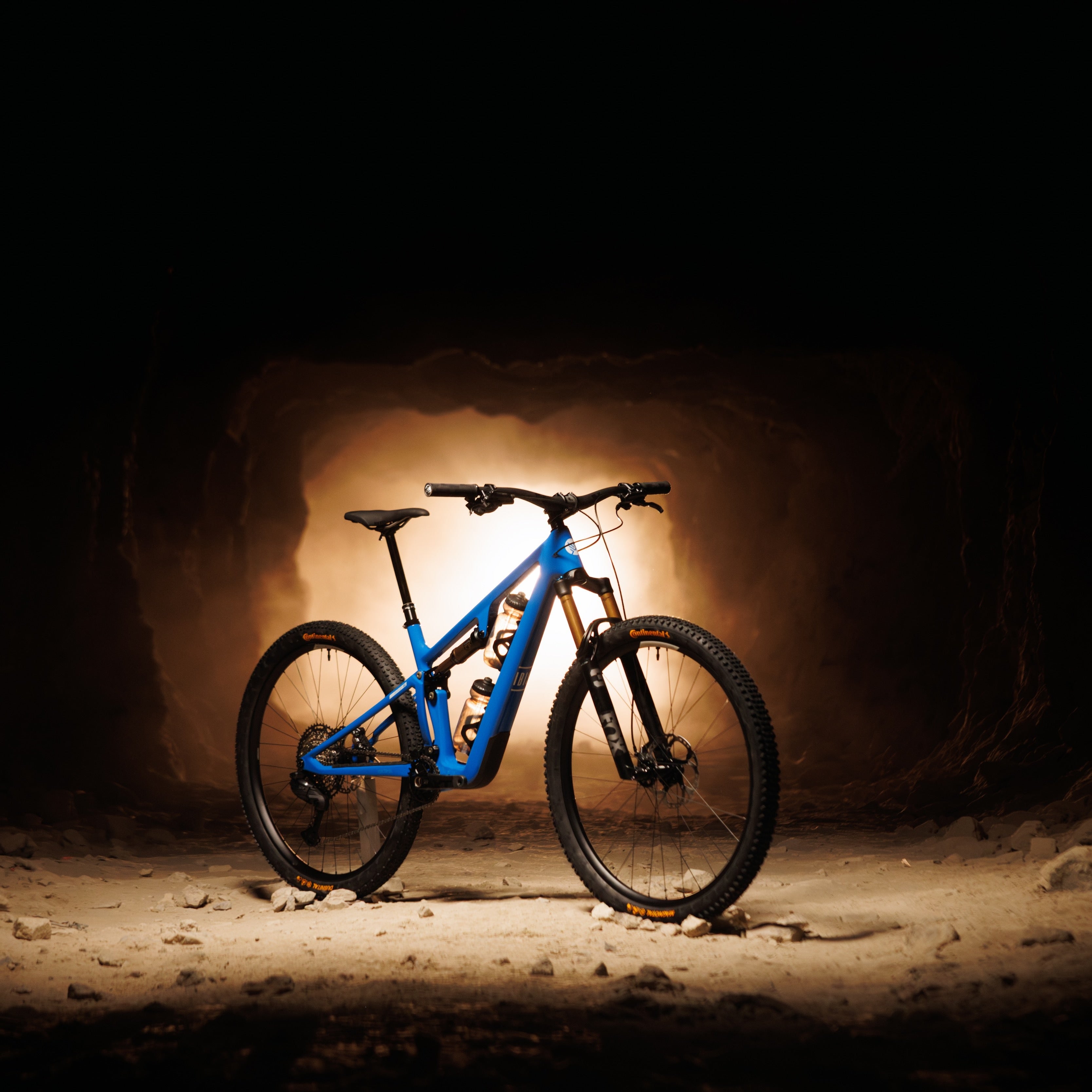

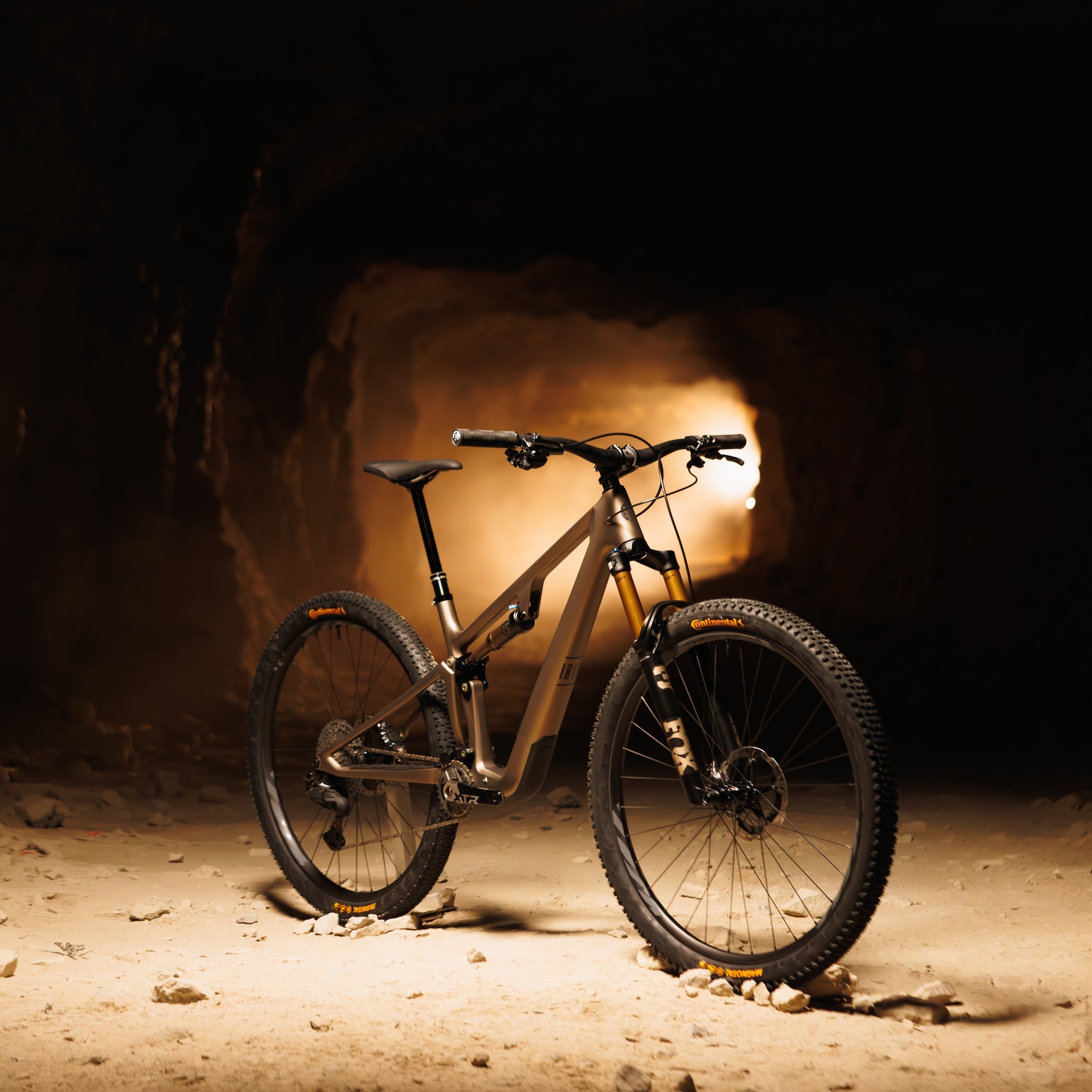

RIPLEY SL

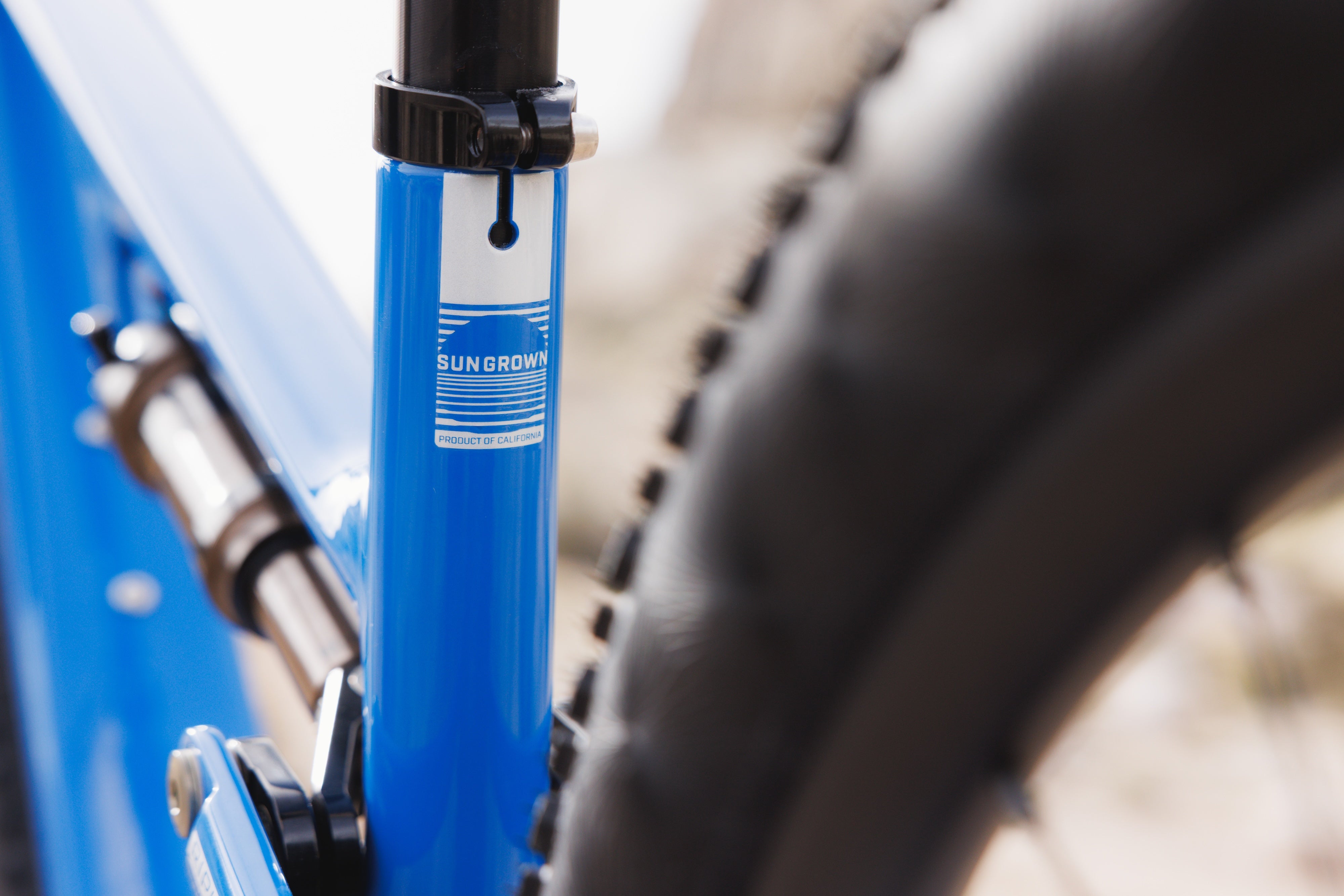

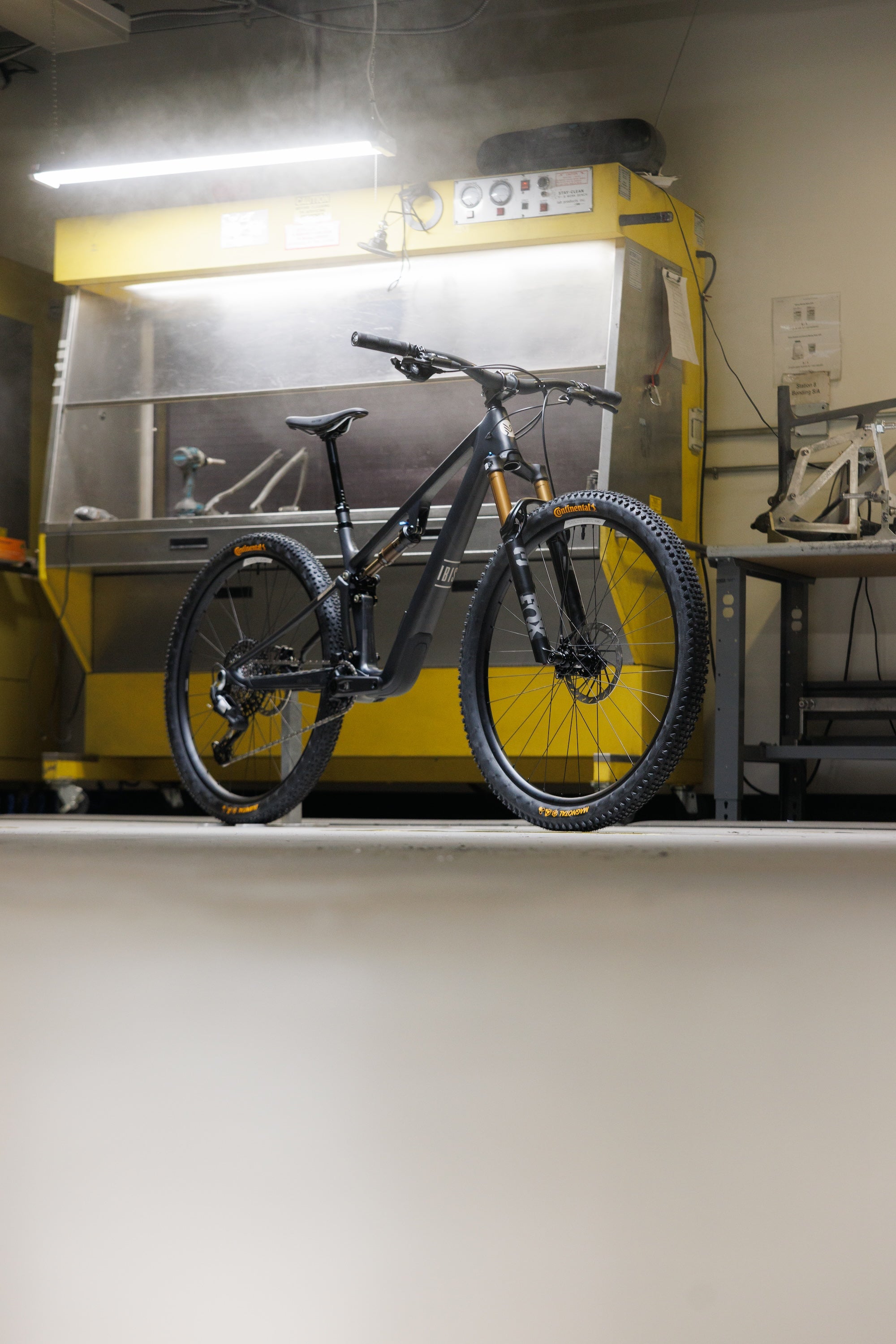

Sungrown in California at Ibis’s fully solar-powered factory, the Ripley SL reflects decades of heritage, handcrafted carbon, innovative engineering, and an unwavering passion for the ride. The result is a 5-pound rocket on wheels, built to move fast and ride hard.

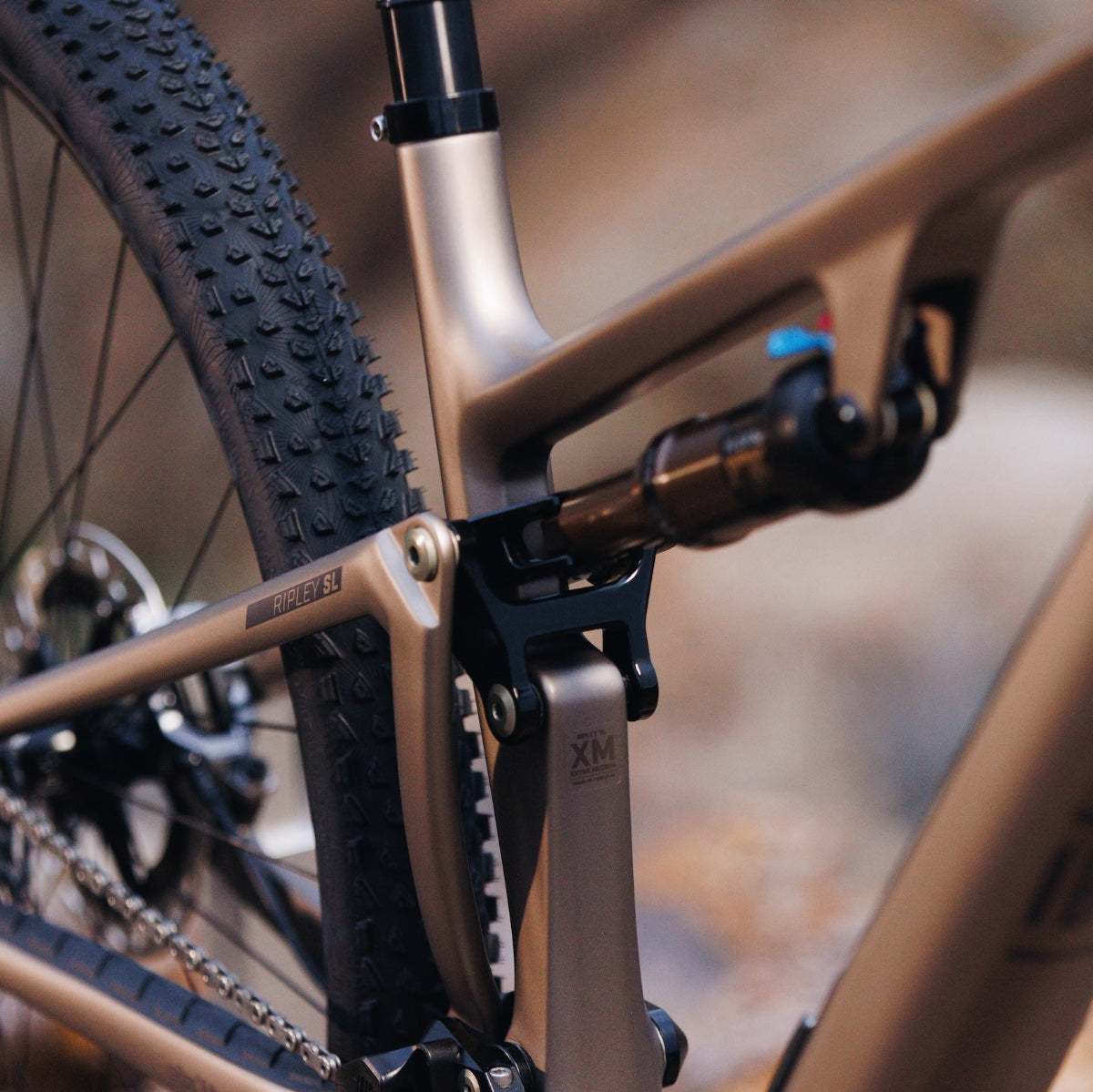

Combining 117mm of DW-link rear travel with 130mm up front, the Ripley SL delivers uncompromising fun when the trail gets rough, especially for riders chasing XC speed. Modern performance comes through thoughtful geometry, refined Ibis STOW in-frame storage with purpose-built bags, space for two bottles, and exceptional quality crafted into every detail at Ibis’s in-house manufacturing facility.

It’s the kind of bike that inspires riders to push harder, ride farther, and choose the longer route simply for the thrill of it.

Feature list image
Feature list image
Feature list image
Feature list image
Feature list image
Feature list image

What makes a RIPLEY SL a RIPLEY SL.

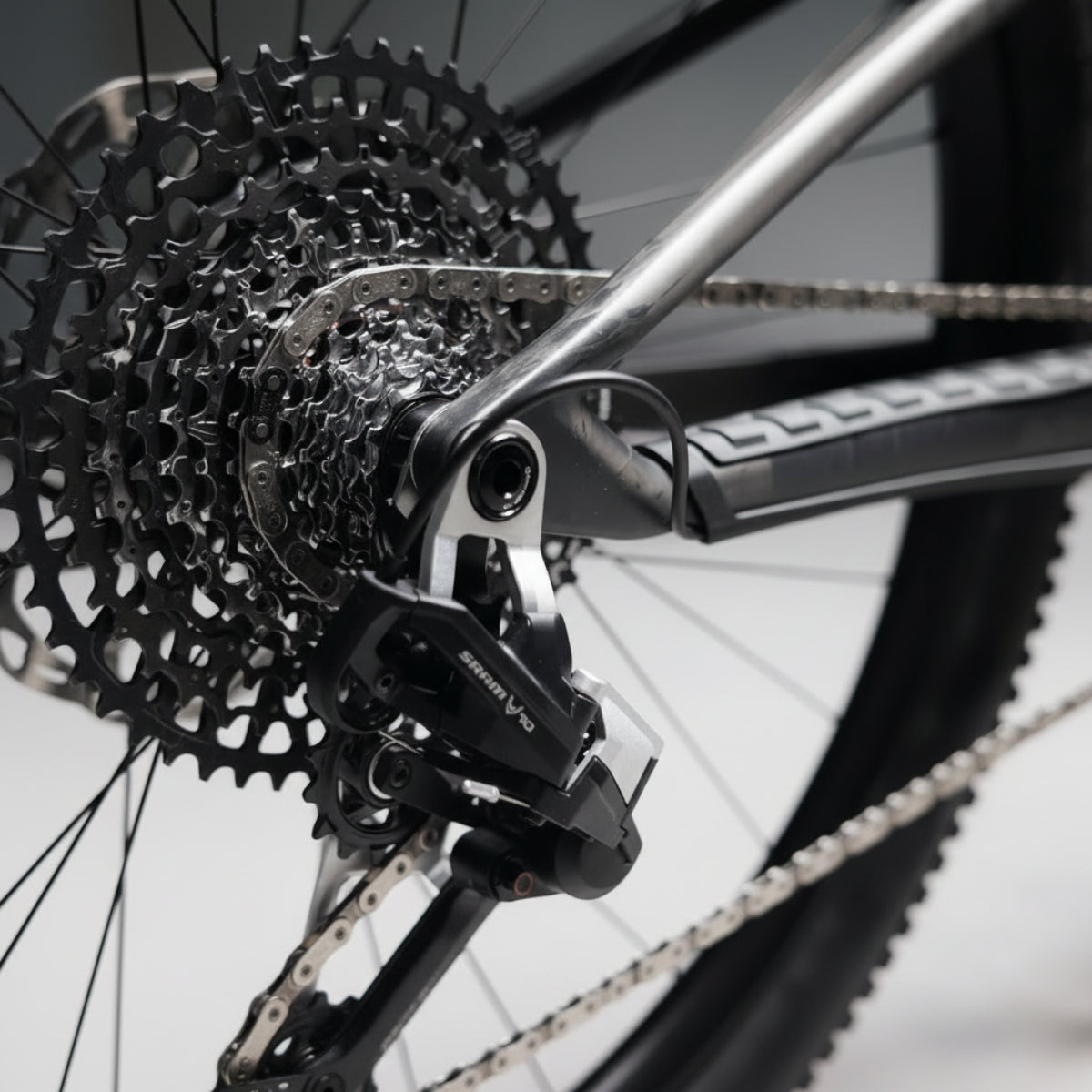

INTEGRATED SWINGARM CABLE GUIDES

The Ripley SL features neat and tidy derailleur and brake hose management. This allows for easy swingarm removal without disconnecting the brakes lines.

LIFETIME WARRANTY

If it's our fault, we'll fix it. Simple as that.

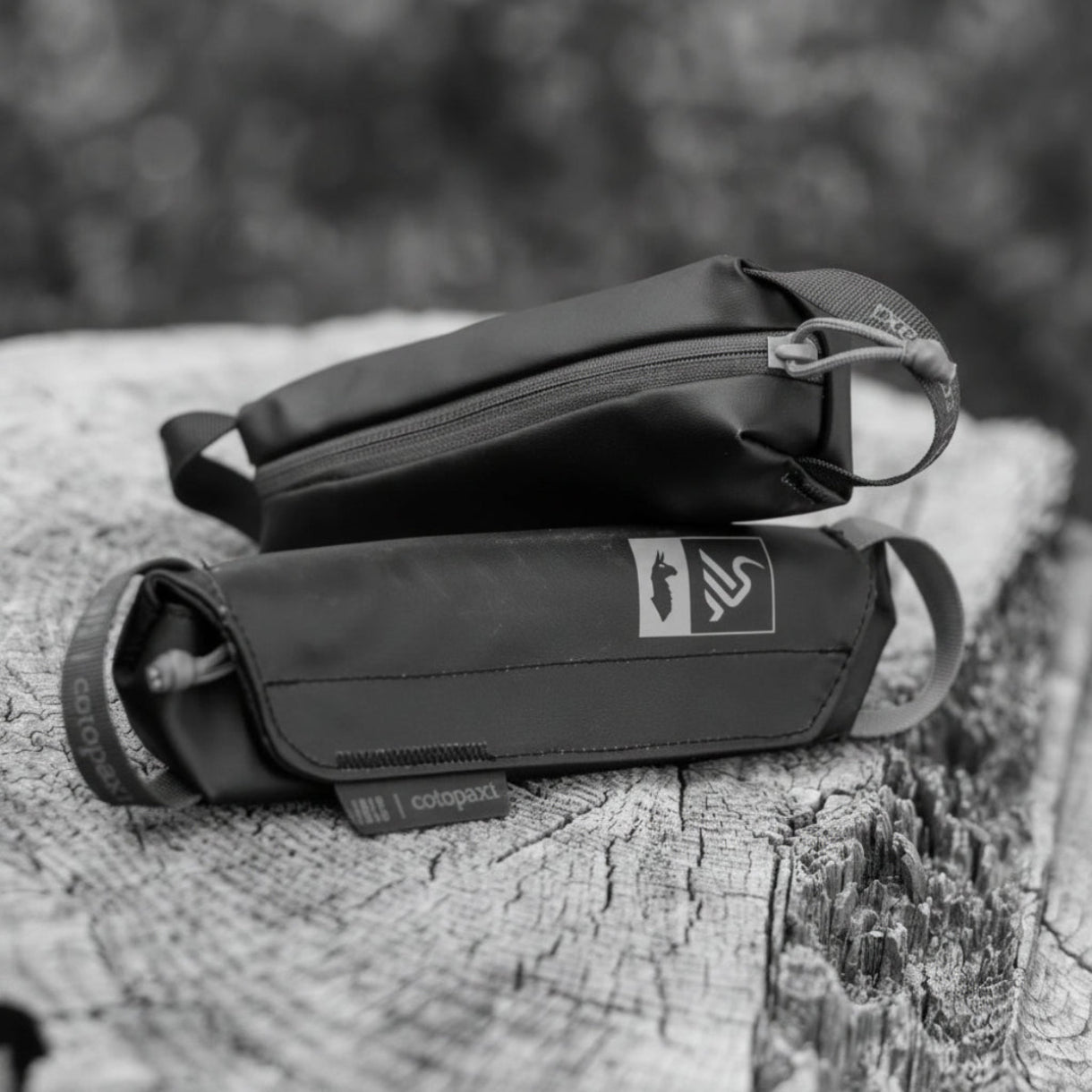

Two black pouches with colorful zippers on a wooden surface with a blurred autumn background. Two black pouches with colorful zippers on a wooden surface with a blurred autumn background.

COTOPAXI x IBIS

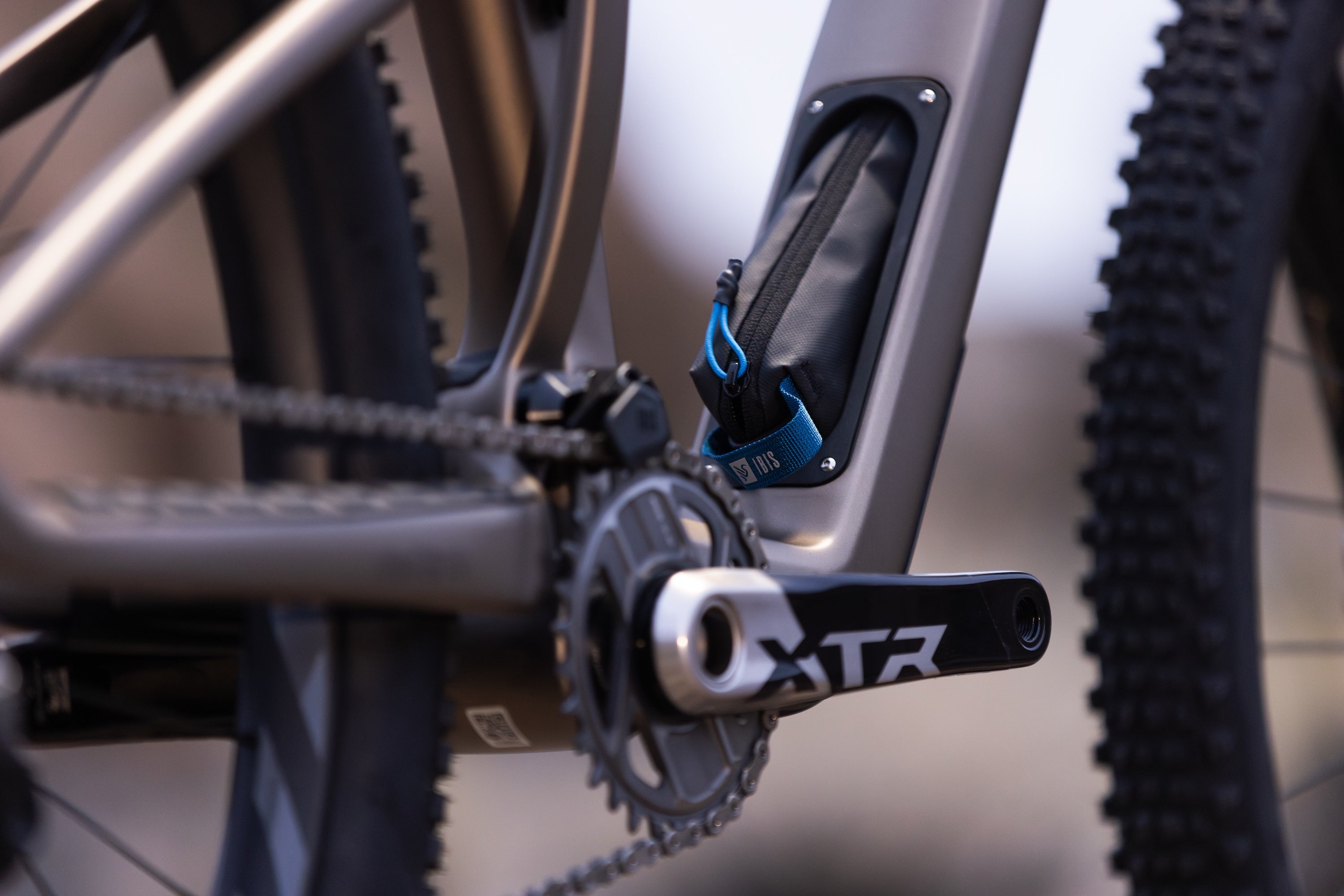

Get the gear off your body and into your frame with our new in frame stor­age sys­tem. STOW (snacks, tools, or what­ev­er) fits two bags inside your bike frame for a clean look that’s rat­tle free and easy access.

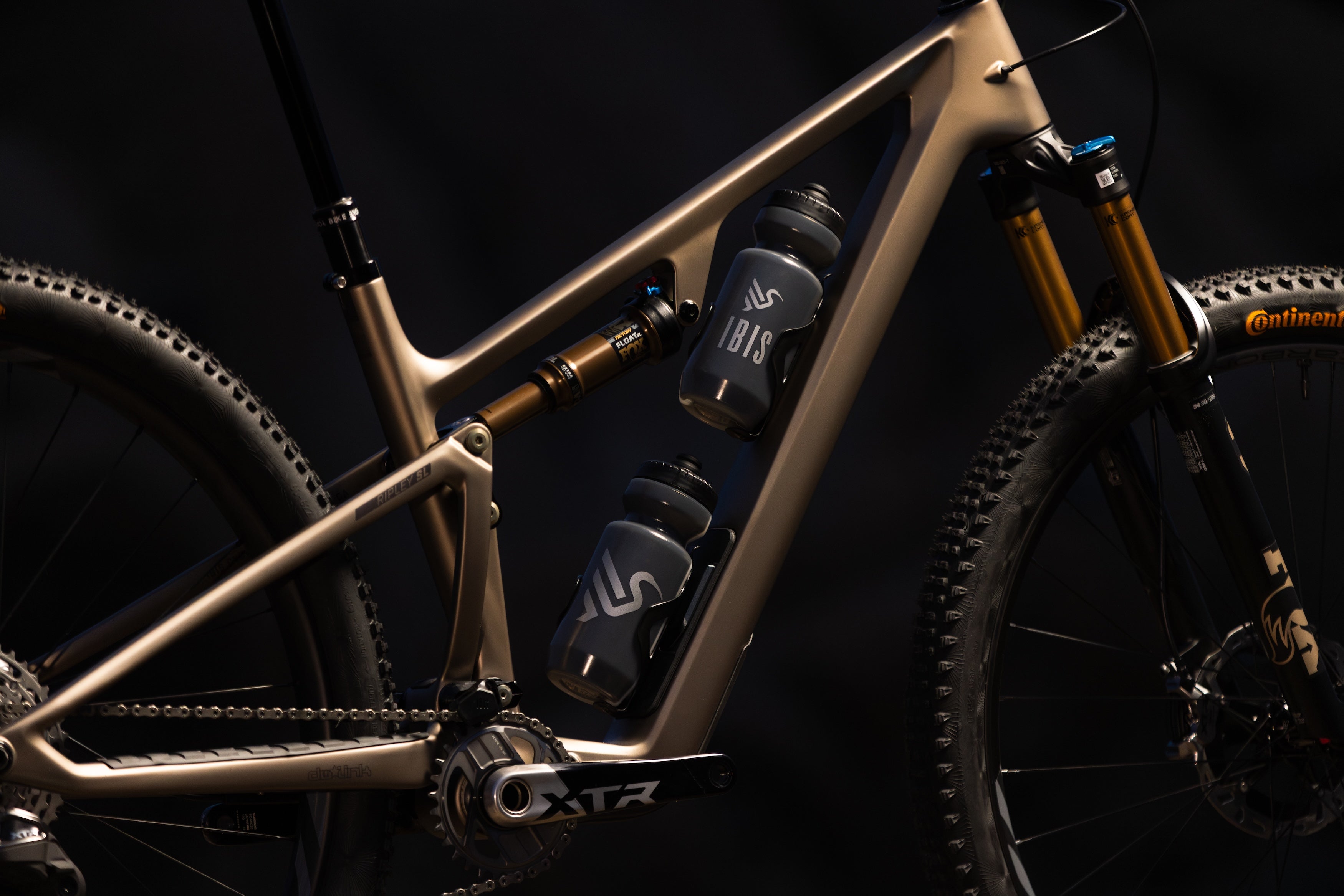

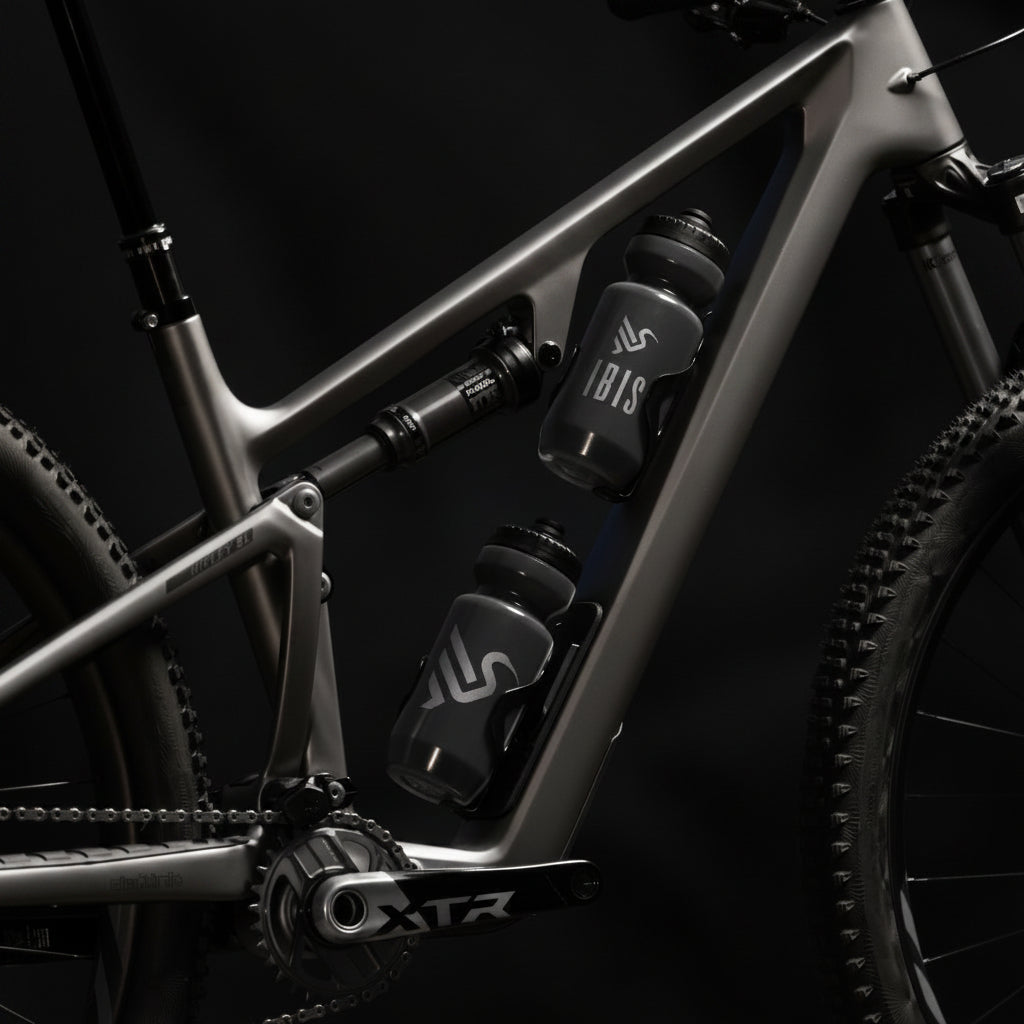

2X BOTTLE CLEARANCE

The Ripley SL has clearance for two water bottles inside the front triangle on frame sizes M–XL. The size small frame has room for a single tall bottle.

Media and text video

Ripley SL - Race Bred. Trail Fed.


Sungrown in California in our 100% solar-powered factory, the Ripley SL celebrates decades of Ibis heritage - handcrafted carbon, clever engineering, and an obsessive passion for the ride. The result: a 5-pound rocket on wheels.

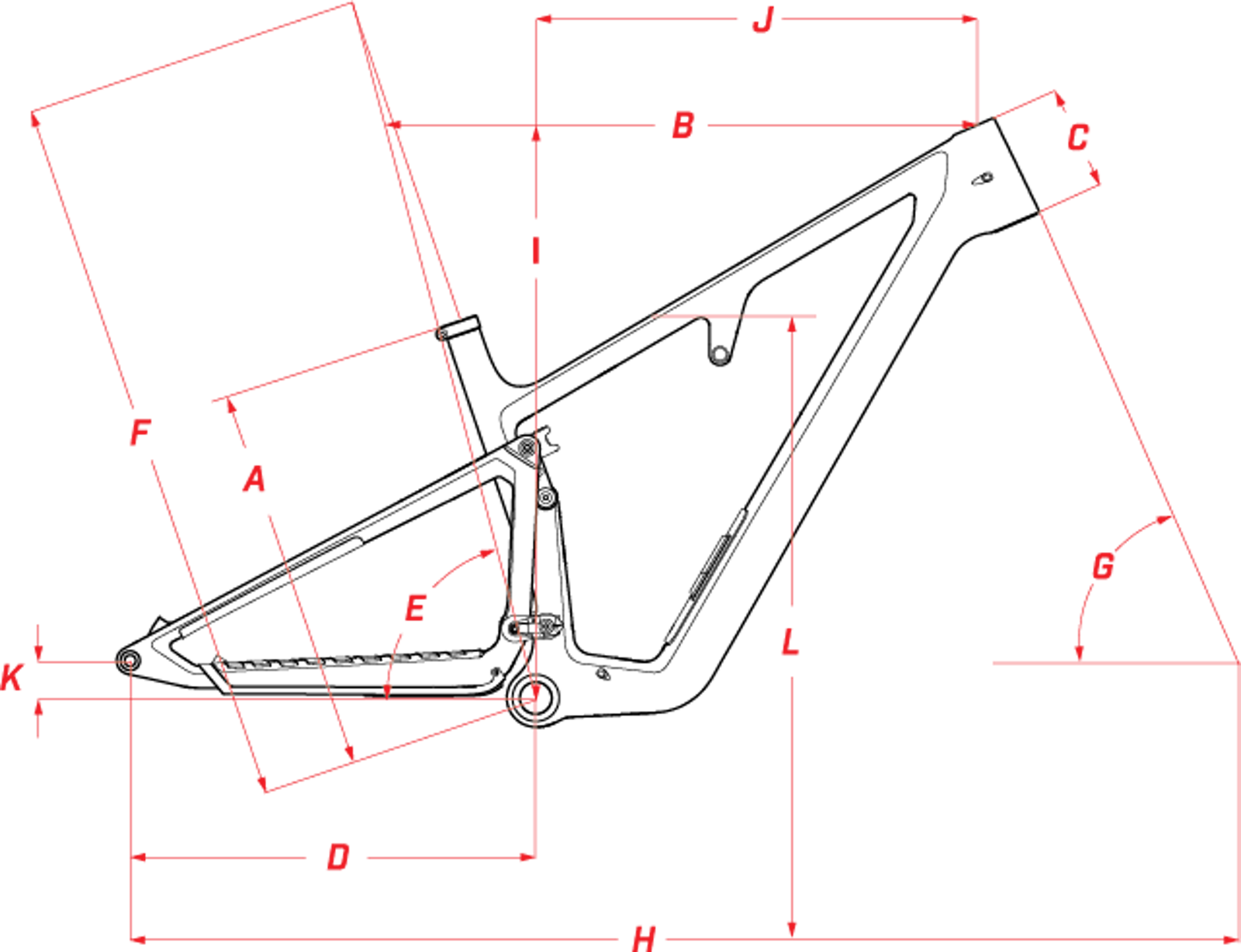

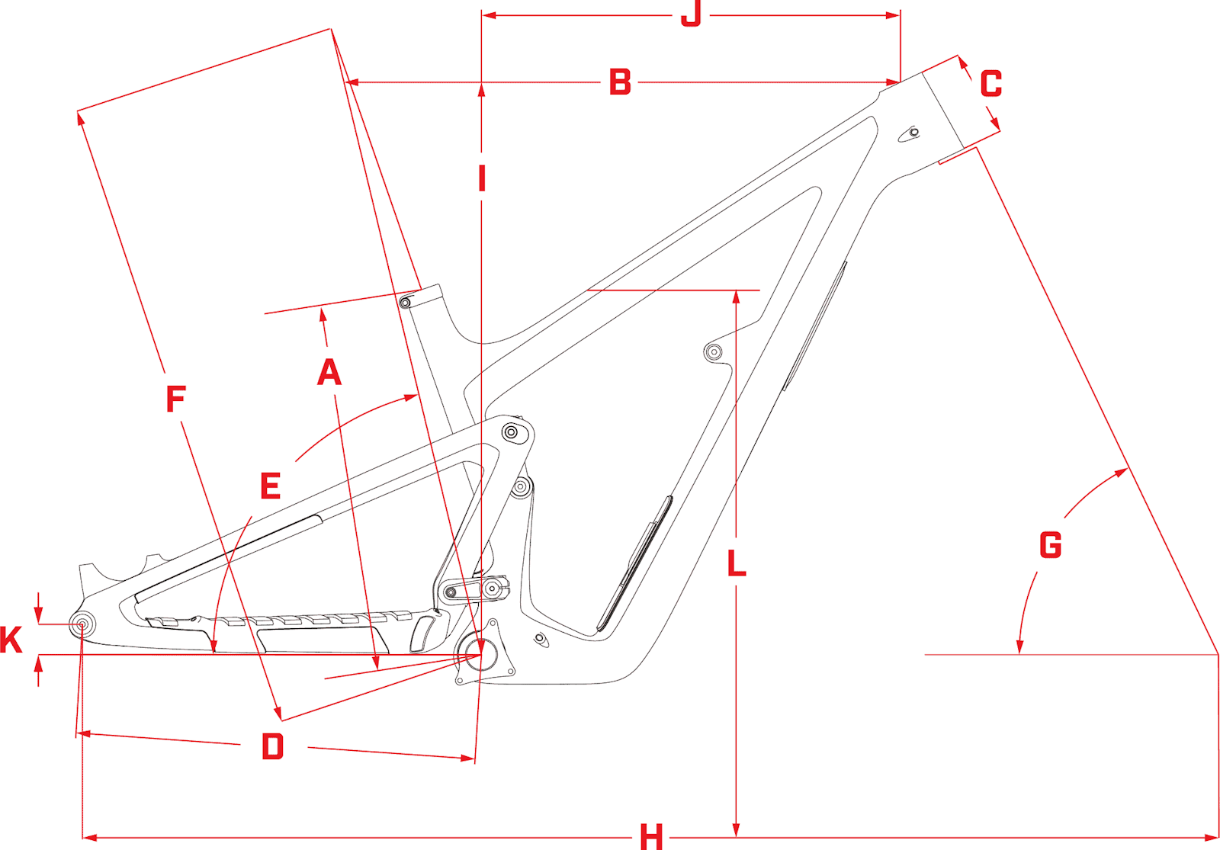

Ripley SL Geometry

130mm Fork (542mm axle to crown)

66° Head Tube Angle

74.25–75.25° Seat Tube Angle

432–440mm Chainstays

Measurement SM MD XM LG XL
ASeat Tube 377 403 410 438 470
BTop Tube 577 607 632 652 677
CHead Tube 85 90 112 125 140
DChainstay 432 434 436 438 440
ESeat Tube Angle 74.25° 74.5° 74.75° 75° 75.25°
FSaddle Height
for Seat Tube Angle
650 700 745 790 835
GHead Tube Angle 66° 66° 66° 66° 66°
HWheelbase 1130 1170 1201 1228 1263
IStack 597 599 617 625 635
JReach 407 440 463 484 509
KBB Drop 42 39 36 32 29
BB Height* 329 332 335 339 342
LStandover 710 727 732 737 752
Recommended
Seatpost Drop
125 160 185 213 213
Crank Length 165 165 170 170 170
Tire Size 2.2-2.4" 2.2-2.4" 2.2-2.4" 2.2-2.4" 2.2-2.4"
Water Bottle Size 1 x 26oz 2x 22oz 2x 22oz 2x 22oz 2x 22oz

Sizing Guide (Rider Height)

S
152–168 cm
M
165–175 cm
XM
173–183 cm
L
180–191 cm
XL
188–201 cm

Setup & Dropper Insert

Setup

Ripley SL Setup Guide

Use the official Ripley SL setup guide for fork and shock sag, damping, air pressure and volume spacer starting points.

Sag

Starting Setup

Fork sag 18–25% of 130mm travel
Fork sag range 23.4mm–32.5mm
Shock sag 25–30% of 50mm stroke
Shock sag range 12.25mm–15mm
Setup mode Set sag in open mode with riding gear on
Seatpost Dropper Insert & Saddle Height +

Maximum Seatpost Insertion

Frame Size SM MD XM LG XL
Max Insertion 267 268 268 306 323

Bike Yoke Revive Saddle Height Range

Measurement from centre BB to centre of saddle rail, in mm.

Drop Range SM MD XM LG XL
Revive v3 125 Min 530 545 570 600 630
Revive v3 125 Max 648 663 688 718 748
Revive v3 160 Min 627 580 605 635 665
Revive v3 160 Max 698 713 738 768 798
Revive v3 185 Min 652 605 630 660 690
Revive v3 185 Max 718 733 758 788 818
Revive v3 213 Min 667 635 671 688 718
Revive v3 213 Max 783 798 823 853 883

KS Vantage Saddle Height Range

Measurement from centre BB to centre of saddle rail, in mm.

Drop Range SM MD XM LG XL
140 Min 584 574 599 629 659
140 Max 677 692 717 747 777
170 Min 627 612 648 659 689
170 Max 727 742 767 797 827
210 Min 724 692 728 729 730
210 Max 797 812 837 867 897

COMPARE OTHER IBIS BIKES

Not sure on what to go for? Here's some comparisons to help.

COMPARE OTHER IBIS BIKES

Not sure on what to go for? Here's some comparisons to help.

RIPLEY SL

RIPLEY AF | RIPLEY

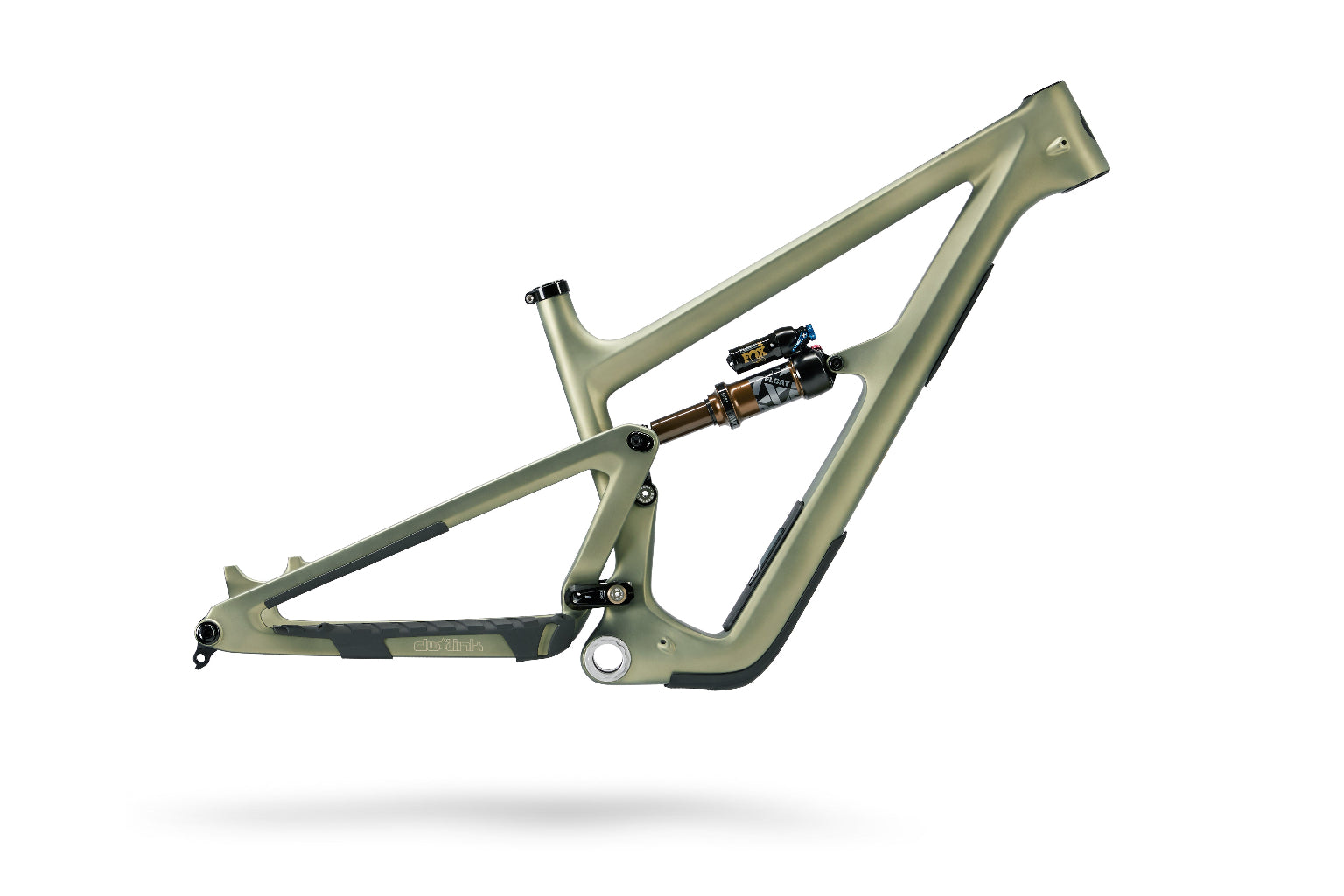

RIPMO AF | RIPMO
