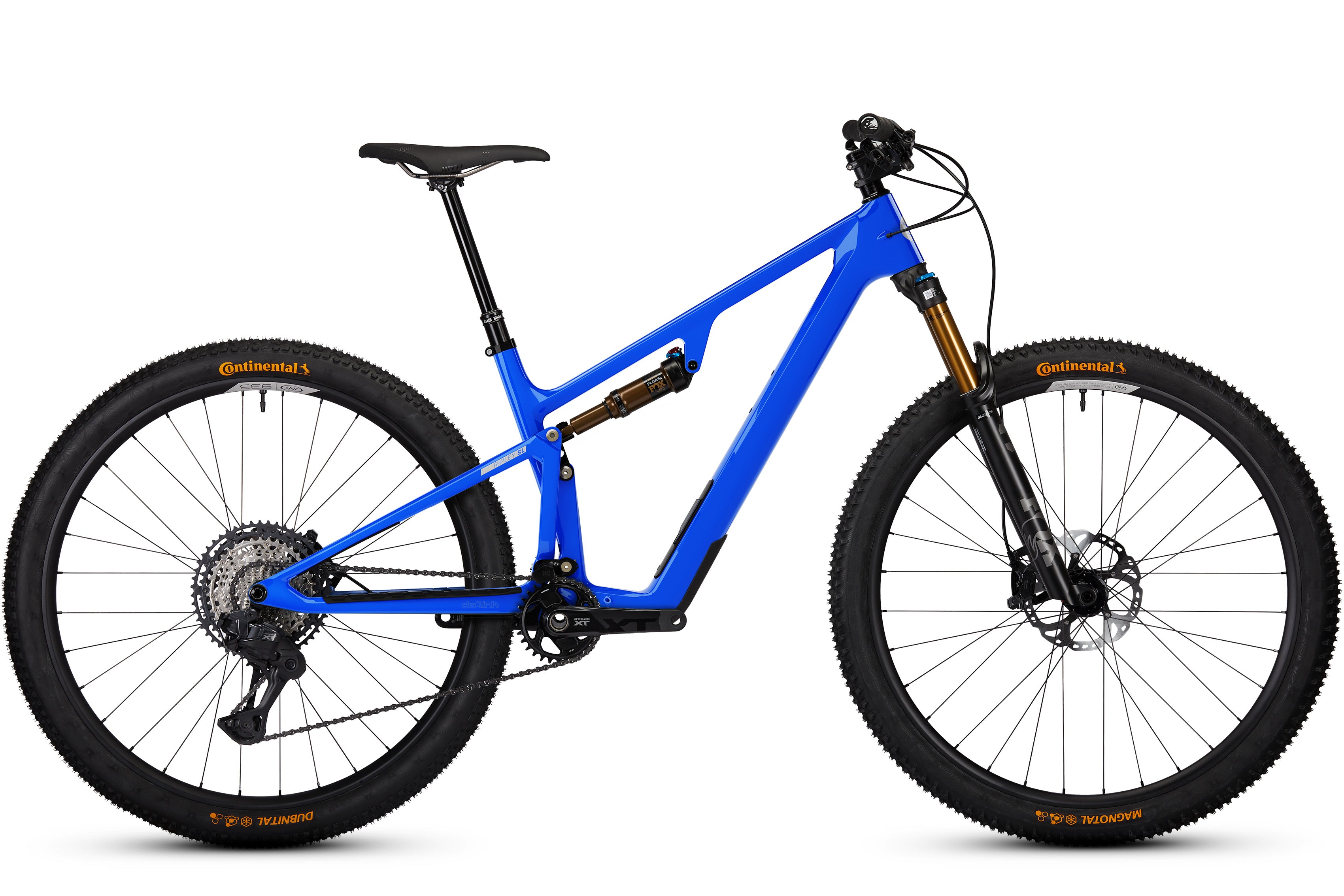

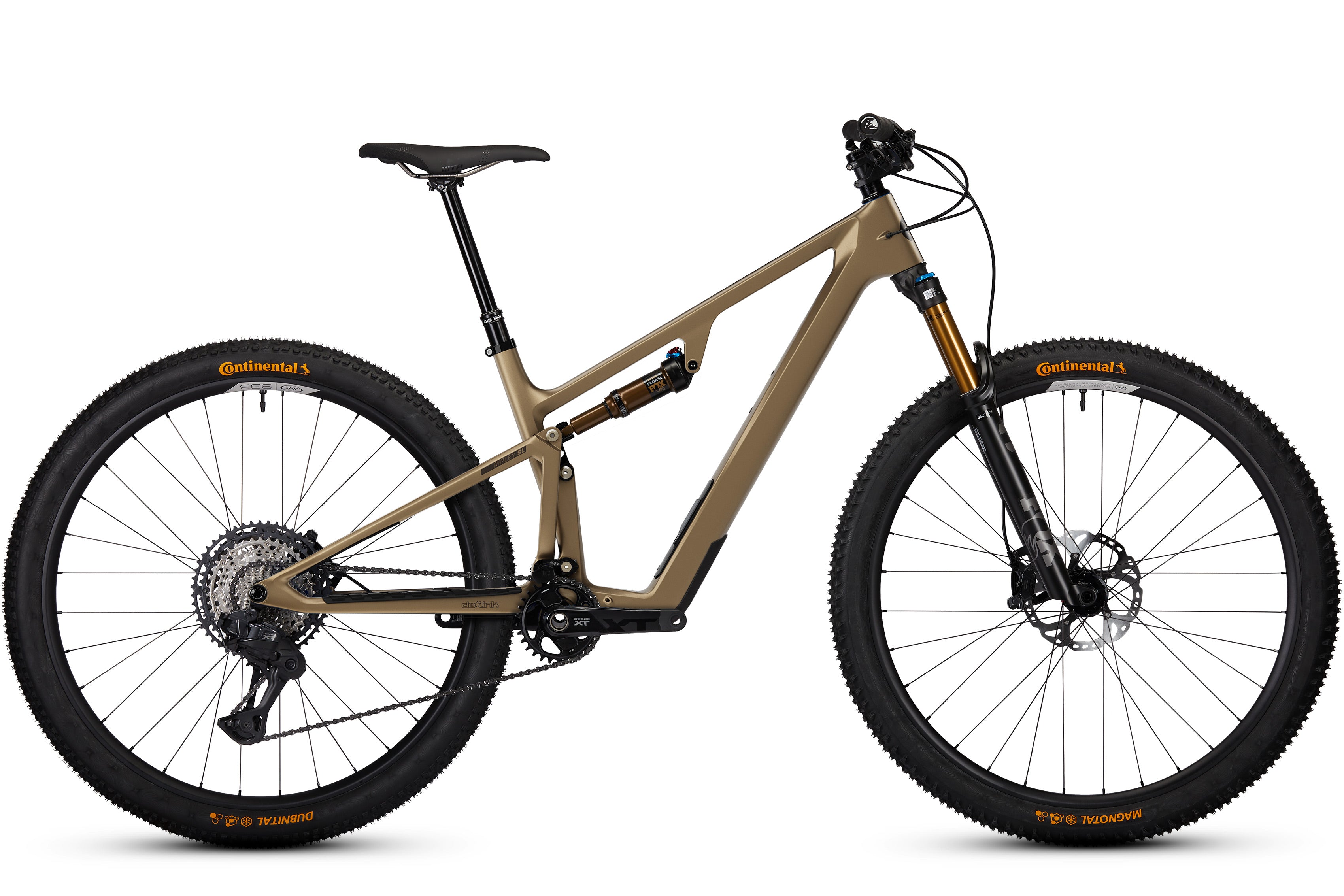

IBIS RIPLEY SL | XT Di2

Fork: Fox Factory 34SL, Grip SL, 130mm

Shock: Fox Factory Float SL, 210x50mm

Wheels: Ibis 933 Aluminum Rims, Blackbird Hubs

Front Tire: Continental Magnotal, 29x2.4, Trail Soft

Rear Tire: Continental Dubnital, 29x2.4, Trail Grip

Brakes: Shimano XT M8220 4-Piston

Rotors (F/R): Shimano RT-86 IceTech F: 180 / R: 180

Crankset: Shimano XT M8200 30T Alloy Ring

S–M: 165mm, XM–XL: 170mm

Bottom Bracket: Shimano XT

Rear Derailleur: Shimano XT Di2 SGS

Shifter: Shimano XT Di2 Shift Switch

Cassette: Shimano XT 10-51T

Chain: Shimano XT

Headset: Cane Creek 50 IS41/IS52

Grips: Lizard Skins Strata Single Clamp

Handlebar: Blackbird 35 Carbon Riser Bar 800mm

Stem: Blackbird 35 Stem

S–M: 35mm, XM–XL: 50mm

Seatpost: BikeYoke Revive 31.6mm

S: 125mm, M: 160mm, XM: 185mm, L–XL: 213mm

Saddle: WTB Silverado Fusion CrMo 142

Version: V1

Frame Material: Carbon Fiber Monocoque, Made in USA

Frame Weight: 5 lbs with shock (M), 4 1/4 lbs frame only (M)

Wheel Size: 29"

Front Travel: 130mm

Rear Travel: 117mm

Shock Specs: 210mm x 50mm

Boost Axles: 148mm rear / 110mm front

Seatpost Diameter: 31.6mm

Rear Brake: 160mm Post mount, 180mm max rotor

Bottom Bracket: Threaded BB (73mm BSA)

Chain Guide: Integrated upper chain guide

Tire Clearance: Burly 2.4” tire clearance

Bottle Mounts: 26oz bottle on size small, 2 x 22oz on all other sizes

Frame Storage: Ibis STOW internal frame storage with bags

Frame Protection: Molded rubber downtube, chainstay, seatstay, and lower link protectors. Compatible with Truckee shuttle guard

Cable Guides: Mechanical or Wireless shifting compatible. Externally Routed Cable Guide for Mechanical Shifting (optional)

Colors: Gold Rush, Tahoe Blue or Raw Carbon

Sizes: Small (S), Medium (M), Extra Medium (XM), Large (L), Extra Large (XL)

Frame & Wheels Warranty: Lifetime Warranty

Bushings Warranty: Lifetime replacement on bushings
