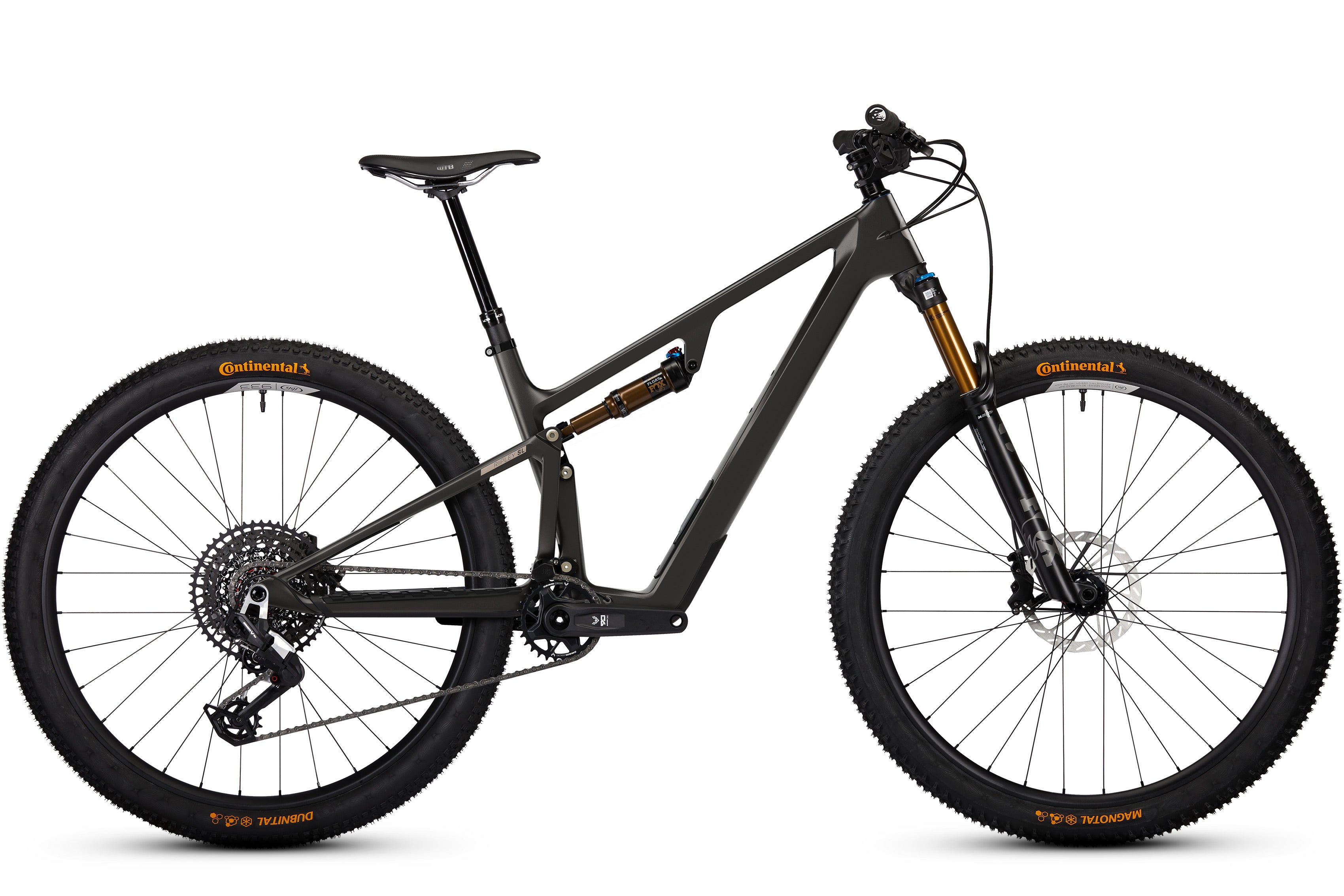

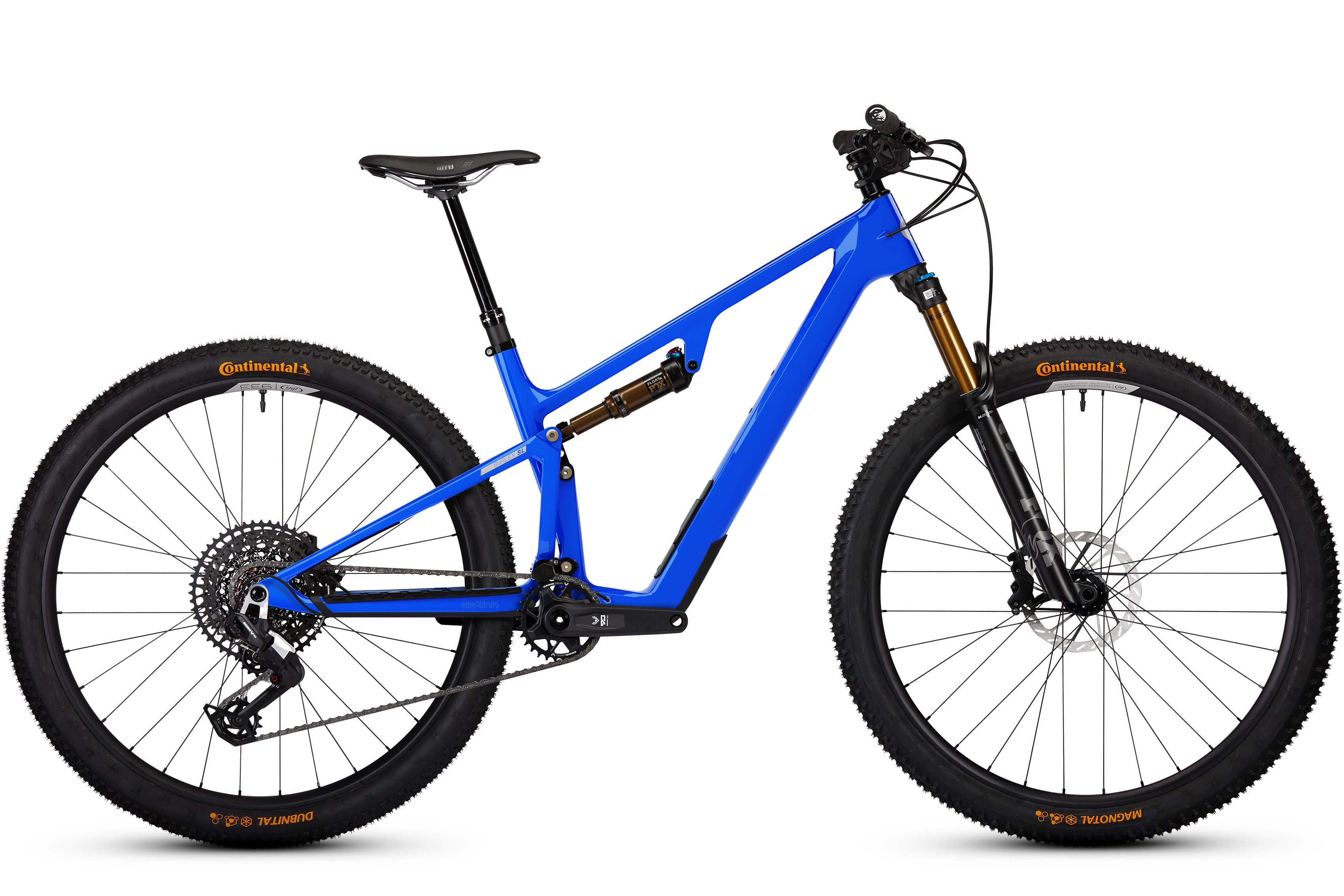

IBIS RIPLEY SL | E90
$12,600.00
/
Couldn't load pickup availability
IBIS RIPLEY SL 90
SPECS
01
BUILD SPECS
Fork
Fox Factory 34SL, Grip SL, 130mm
Shock
Fox Factory Float SL, 210 × 50mm
Wheels
Ibis 933 Aluminum Rims, Blackbird Hubs
Front Tire
Continental Magnotal, 29 × 2.4, Trail Soft
Rear Tire
Continental Dubnital, 29 × 2.4, Trail Grip
Brakes
SRAM DB8 Stealth
Rotors
SRAM HS2 6-Bolt — 180mm Front / 180mm Rear
Crankset
SRAM Eagle 90 Transmission DUB, 30T Alloy Ring
Crank Length
S–M: 165mm / XM–XL: 170mm
Bottom Bracket
SRAM DUB BSA
Rear Derailleur
SRAM Eagle 90 Transmission
Shifter
SRAM Eagle 90 Transmission
Cassette
SRAM XS-1275 Transmission, T-Type, 10–52T
Chain
SRAM GX Eagle Transmission, T-Type
Headset
Cane Creek 50 IS41/IS52
Grips
Lizard Skins Strata Single Clamp
Handlebar
Blackbird 35 Aluminum Riser Bar, 800mm
Stem
BLKBRD Stem — S–M: 35mm / XM–XL: 50mm
Seatpost
KS Vantage Dropper, 31.6mm
Dropper Travel
S: 140mm / M–XM: 170mm / L–XL: 210mm
Saddle
WTB Silverado Fusion CrMo 142
02
FRAME
Frame
Ripley SL V1
Material
Carbon Fiber Monocoque — Made in USA
Frame Weight
Approx. 5lb / 2.27kg with shock — Size M
Wheel Size
29"
Rear Axle
Boost 148mm
Front Axle
Boost 110mm
Seatpost
31.6mm
Bottom Bracket
73mm BSA Threaded
Rear Brake Mount
160mm Post Mount / 180mm Max Rotor
Tire Clearance
Up to 2.4"
Frame Storage
Ibis STOW Internal Frame Storage with Bags
Bottle Clearance
S: 1 × 26oz / M–XL: 2 × 22oz
Protection
Molded Downtube, Chainstay, Seatstay & Lower Link Protection
Shifting Compatibility
Mechanical or Wireless Compatible
Sizes
S / M / XM / L / XL
Frame & Wheels
Lifetime Warranty
Bushings
Lifetime Replacement
03
SUSPENSION
REAR
117
MM
FRONT
130
MM
PLATFORM
DW
LINK
WHEELS
29
INCH
Rear Suspension
117mm DW-Link
Shock Size
210 × 50mm
Shock
Fox Factory Float SL
Fork Travel
130mm
Fork
Fox Factory 34SL, Grip SL
Axle-to-Crown
542mm
Maximum Fork Travel
130mm
The Ripley SL is designed around a 130mm fork. A 120mm fork can be used for a more XC-focused setup, while 130mm is the maximum recommended fork travel.
04
DRIVETRAIN COMPATIBILITY
Drivetrain
SRAM Eagle 90 Transmission
Drivetrain Type
Mechanical T-Type
Chainline
55mm
Round Chainring
28T Minimum / 34T Maximum
Chain Guide
Integrated Upper Chain Guide
ISCG 05
Not Compatible
Bottom Bracket
73mm BSA Threaded
Images may not show actual build kit content. Pricing and specifications subject to change without notice.
Tahoe Blue
Raw Carbon
Gold Rush
Tahoe Blue
Raw Carbon
Gold Rush
RIPLEY SL
Race Bred & Trail Fed
117mm
REAR TRAVEL
130mm
FRONT TRAVEL
29"
WHEELS
DW LINK
SUSPENSION
Ripley SL Geometry
66° Head Tube Angle | 74.25–75.25° Seat Tube Angle | 432–440mm Chainstays
130mm Fork (542mm axle to crown)
-
| Measurement | SM | MD | XM | LG | XL |
|---|---|---|---|---|---|
| ASeat Tube | 395 | 400 | 415 | 457 | 477 |
| BTop Tube | 577 | 604 | 629 | 654 | 684 |
| CHead Tube | 85 | 95 | 110 | 125 | 140 |
| DChainstay 29" | 436 | 436 | 437 | 440 | 442 |
| ESeat Tube Angle | 77.4° | 76.9° | 76.9° | 77.4° | 77.9° |
|
FSaddle Height for Seat Tube Angle |
650 | 700 | 745 | 790 | 830 |
| GHead Tube Angle | 64.9° | 64.9° | 64.9° | 64.9° | 64.9° |
| HWheelbase | 1187 | 1211 | 1241 | 1279 | 1321 |
| IStack | 613 | 619 | 629 | 640 | 650 |
| JReach | 440 | 460 | 483 | 511 | 545 |
| BB Height* | 326 | 329 | 332 | 335 | 338 |
| KBB Drop | 48 | 45 | 42 | 39 | 36 |
| LStandover | 680 | 721 | 744 | 759 | 772 |
| Recommended Seatpost Drop |
140 | 170 | 185 | 213 | 213 |
| Crank Length | 165 | 165 | 170 | 170 | 170 |
| Tire Size | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" |
| Water Bottle Size | 1 x 22oz | 1 x 26oz | 1 x 26oz | 1 x 26oz | 1 x 26oz |
