IBIS RIPLEY SL | Frame Only
$7,990.00
/
Couldn't load pickup availability
IBIS RIPLEY SL FRAME ONLY
SPECS
01
FRAME KIT
Shock
Fox Factory Float SL, 210 × 50mm
Frame-only package supplied with rear shock.
02
FRAME
Frame
Ripley SL V1
Material
Carbon Fiber Monocoque — Made in USA
Frame Weight
5 lbs with shock / 4 1/4 lbs frame only — Size M
Wheel Size
29"
Rear Axle
Boost 148mm
Front Axle
Boost 110mm
Seatpost Diameter
31.6mm
Bottom Bracket
73mm BSA Threaded
Rear Brake Mount
160mm Post Mount / 180mm Max Rotor
Tire Clearance
Up to 2.4"
Frame Storage
Ibis STOW Internal Frame Storage with Bags
Bottle Clearance
S: 1 × 26oz / M–XL: 2 × 22oz
Frame Protection
Molded Rubber Downtube, Chainstay, Seatstay & Lower Link Protectors
Cable Guides
Mechanical or Wireless Shifting Compatible
Colors
Gold Rush / Tahoe Blue / Raw Carbon
Sizes
S / M / XM / L / XL
Frame & Wheels
Lifetime Warranty
Bushings
Lifetime Replacement
03
SUSPENSION
REAR
117
MM
FRONT
130
MM
PLATFORM
DW
LINK
WHEELS
29
INCH
Rear Travel
117mm
Platform
DW-Link
Shock
Fox Factory Float SL
Shock Size
210 × 50mm
Recommended Fork
130mm
XC Fork Option
120mm
Maximum Fork Travel
130mm
130mm Axle-to-Crown
542mm
Coil Shock
Compatible — Air Shock Recommended
The Ripley SL is designed around a 130mm fork. A 120mm fork can be used for a more XC-focused setup. Maximum recommended fork travel is 130mm.
04
DRIVETRAIN COMPATIBILITY
Shifting
Mechanical or Wireless Compatible
Mechanical Routing
Optional Externally Routed Cable Guide
Chainline
55mm
Round Chainring
28T Minimum / 34T Maximum
Chain Guide
Integrated Upper Chain Guide
ISCG 05
Not Compatible
Bottom Bracket
73mm BSA Threaded
Images may not show actual build kit content. Pricing and specifications subject to change without notice.
Tahoe Blue

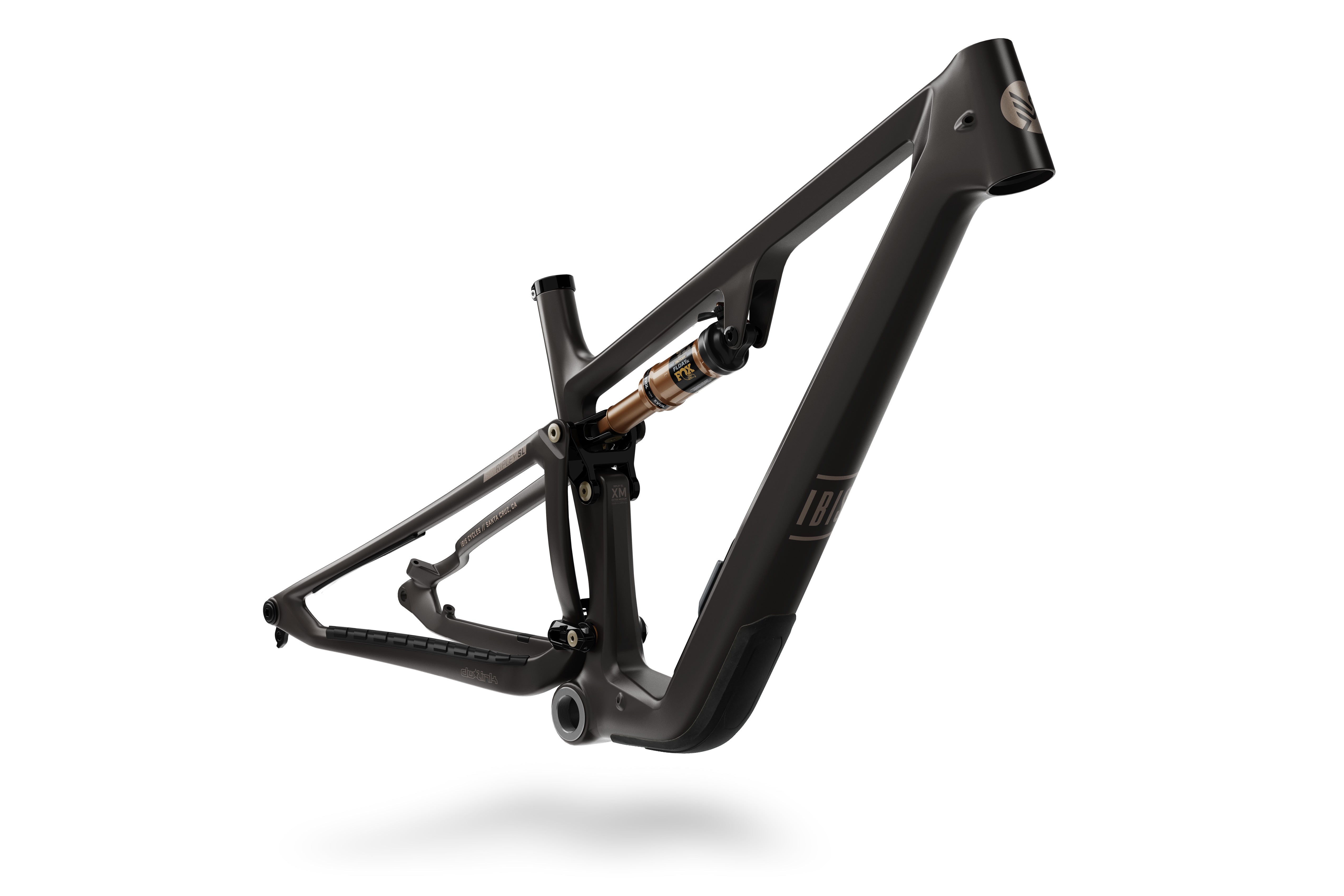

Raw Carbon

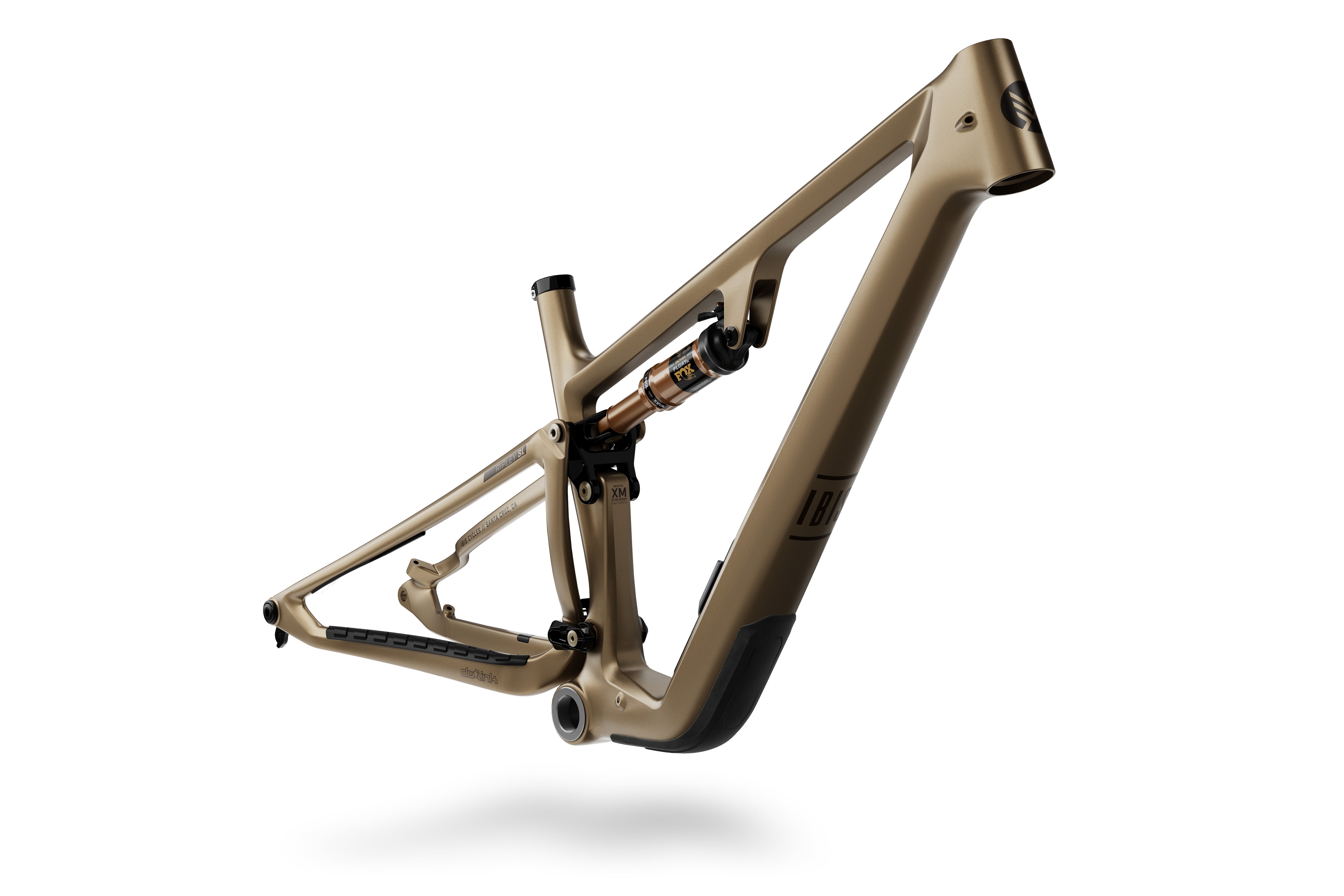

Gold Rush
Tahoe Blue

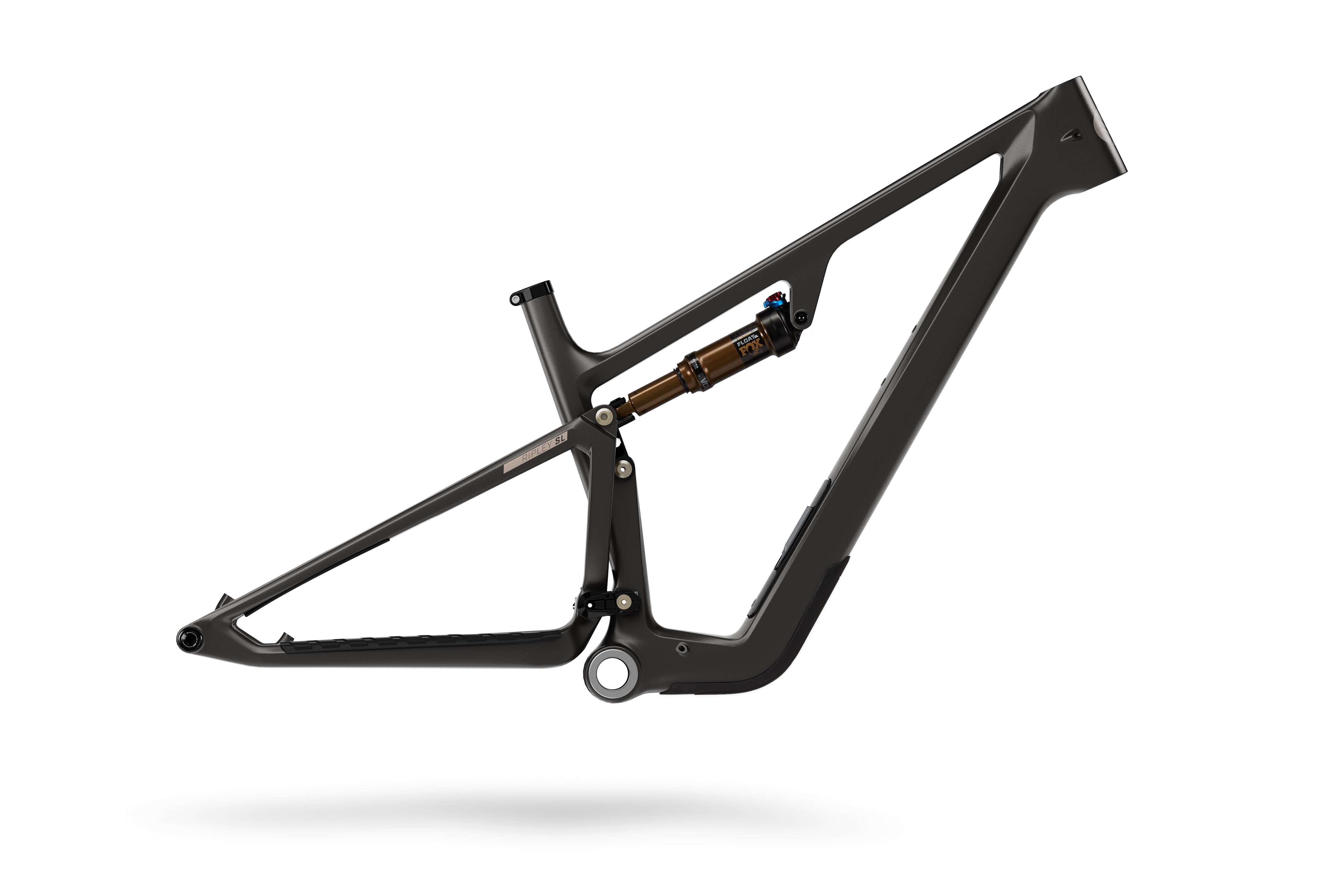

Raw Carbon

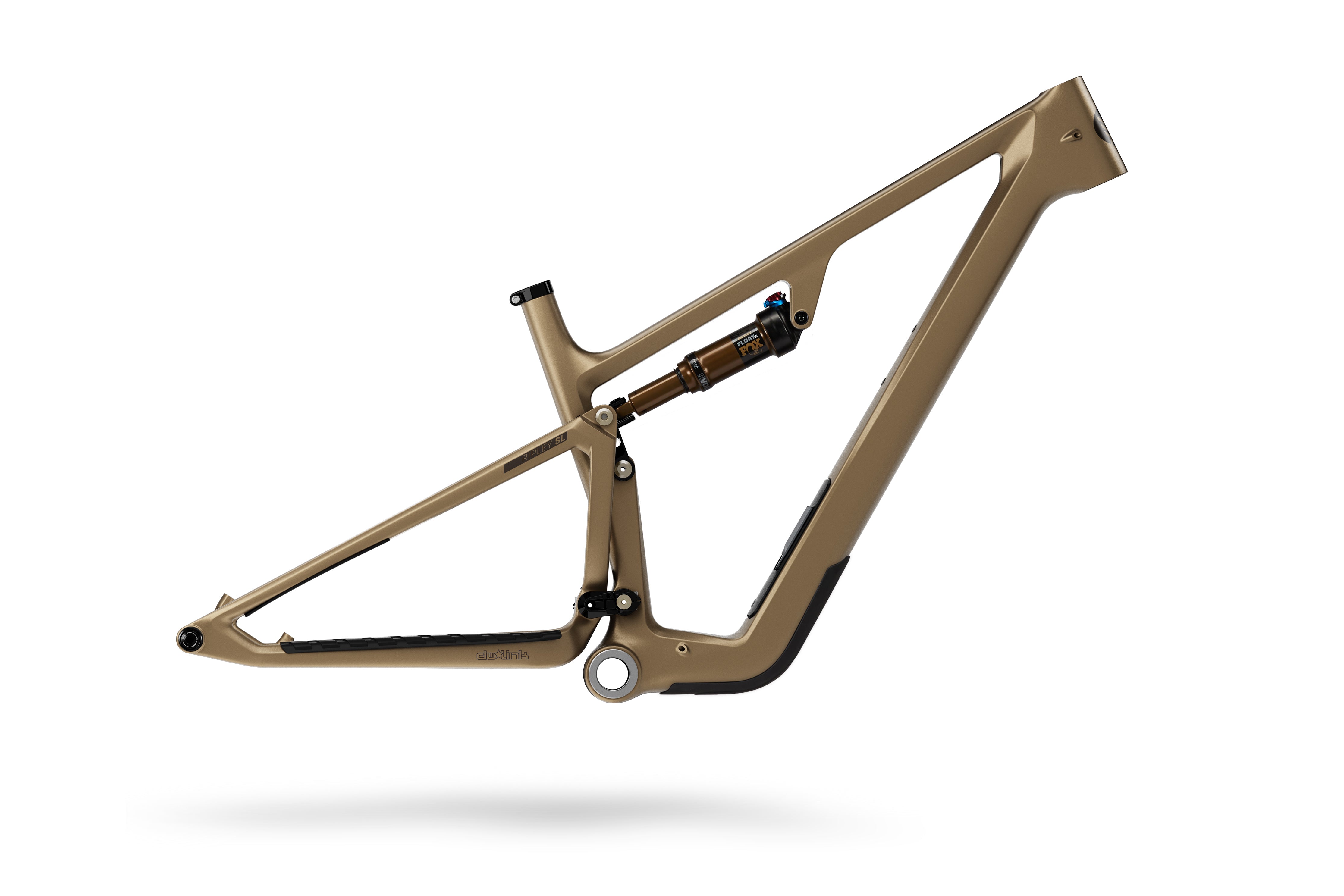

Gold Rush
RIPLEY SL
Race Bred & Trail Fed
117mm
REAR TRAVEL
130mm
FRONT TRAVEL
29"
WHEELS
DW LINK
SUSPENSION
Ripley SL Geometry
66° Head Tube Angle | 74.25–75.25° Seat Tube Angle | 432–440mm Chainstays
130mm Fork (542mm axle to crown)
-
| Measurement | SM | MD | XM | LG | XL |
|---|---|---|---|---|---|
| ASeat Tube | 395 | 400 | 415 | 457 | 477 |
| BTop Tube | 577 | 604 | 629 | 654 | 684 |
| CHead Tube | 85 | 95 | 110 | 125 | 140 |
| DChainstay 29" | 436 | 436 | 437 | 440 | 442 |
| ESeat Tube Angle | 77.4° | 76.9° | 76.9° | 77.4° | 77.9° |
|
FSaddle Height for Seat Tube Angle |
650 | 700 | 745 | 790 | 830 |
| GHead Tube Angle | 64.9° | 64.9° | 64.9° | 64.9° | 64.9° |
| HWheelbase | 1187 | 1211 | 1241 | 1279 | 1321 |
| IStack | 613 | 619 | 629 | 640 | 650 |
| JReach | 440 | 460 | 483 | 511 | 545 |
| BB Height* | 326 | 329 | 332 | 335 | 338 |
| KBB Drop | 48 | 45 | 42 | 39 | 36 |
| LStandover | 680 | 721 | 744 | 759 | 772 |
| Recommended Seatpost Drop |
140 | 170 | 185 | 213 | 213 |
| Crank Length | 165 | 165 | 170 | 170 | 170 |
| Tire Size | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" |
| Water Bottle Size | 1 x 22oz | 1 x 26oz | 1 x 26oz | 1 x 26oz | 1 x 26oz |
