130mm

REAR TRAVEL

140mm

FRONT TRAVEL

29"

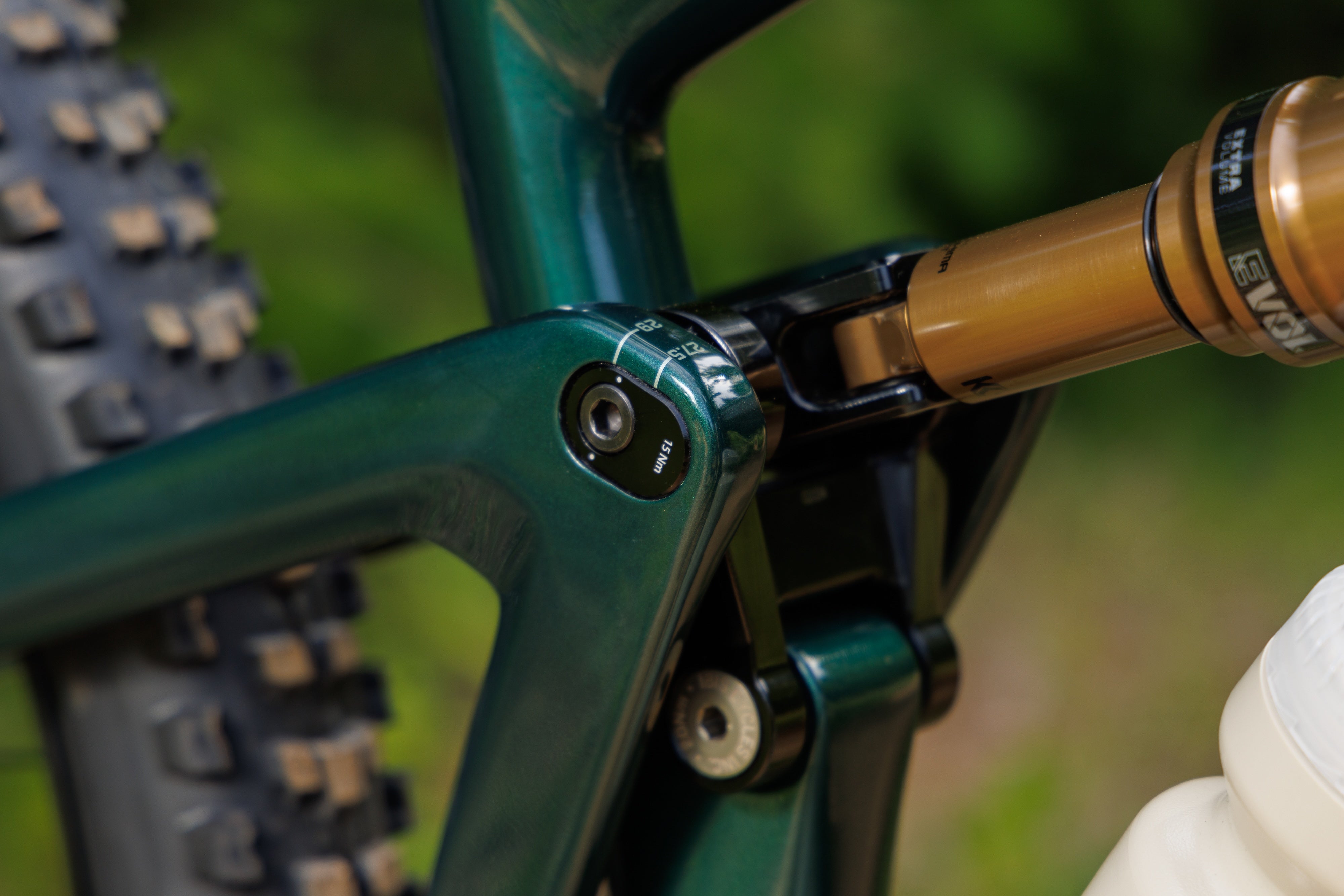

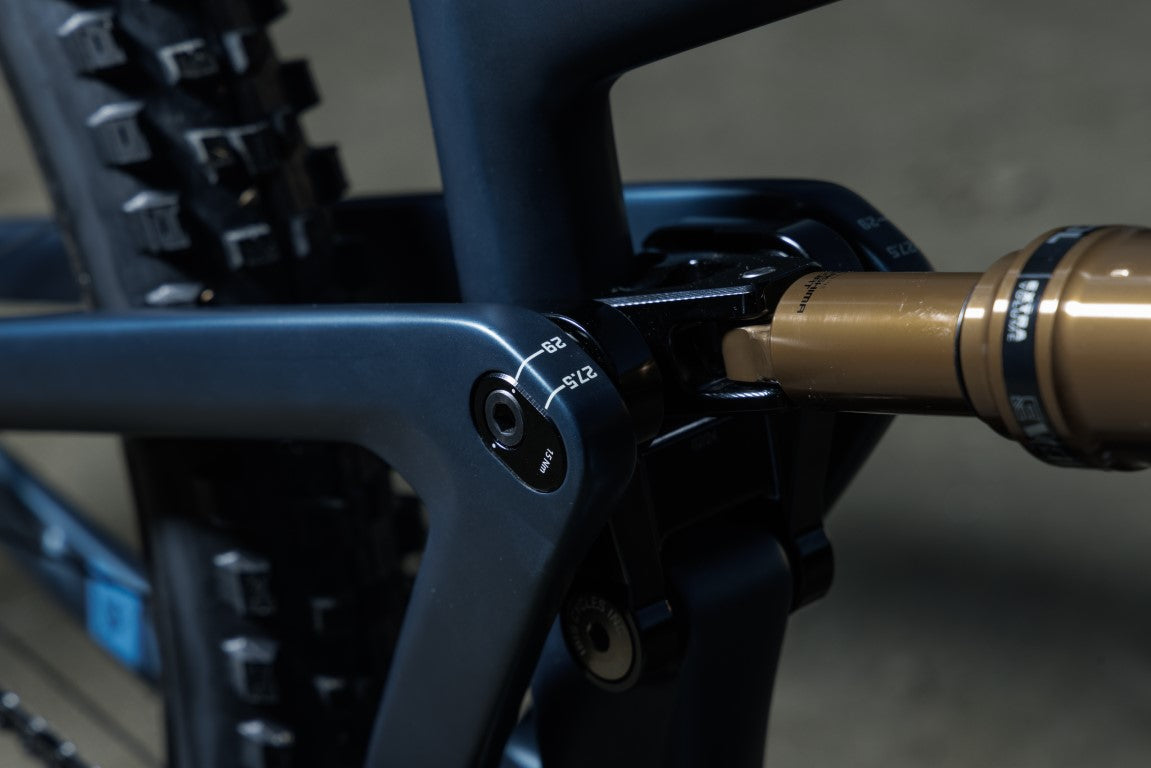

WHEELS | MX OPTIONAL VIA FLIP CHIP

DW LINK

SUSPENSION


RIPLEY

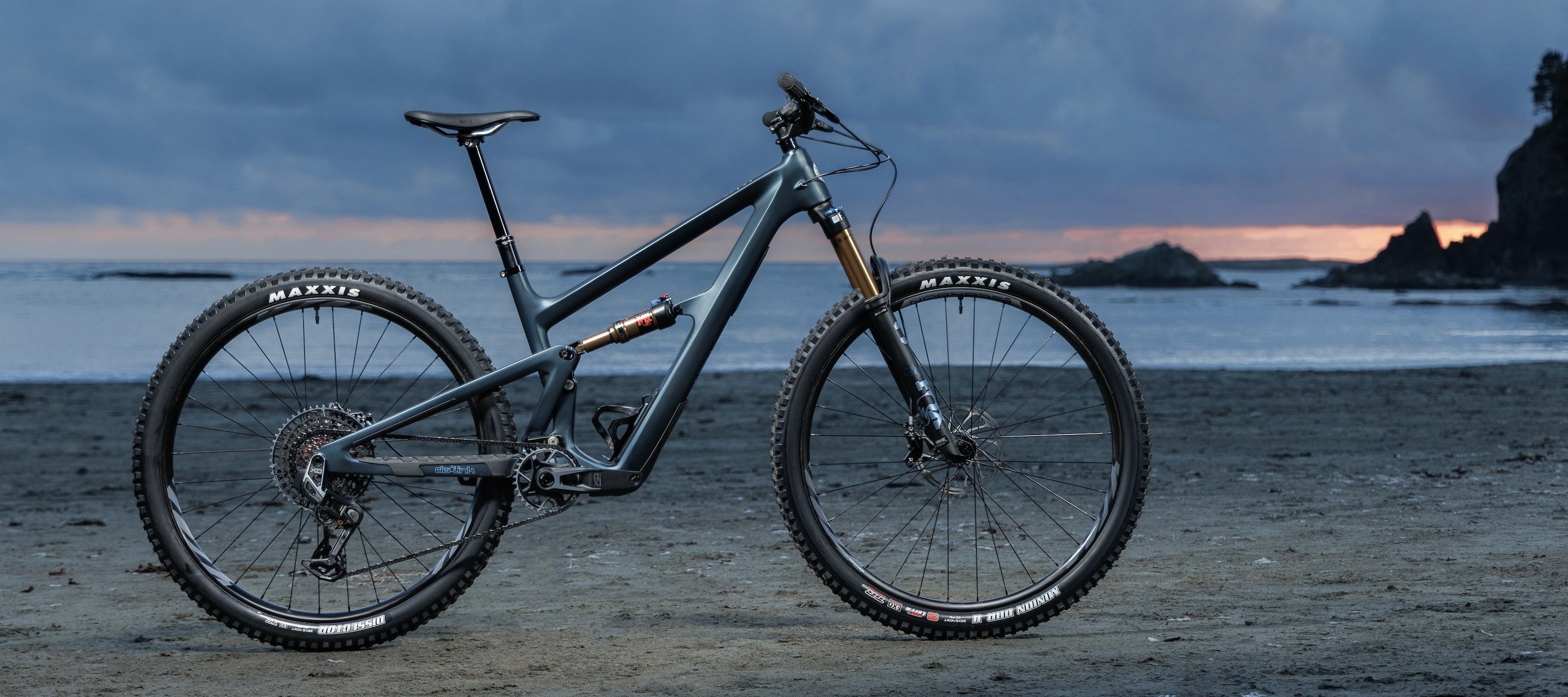

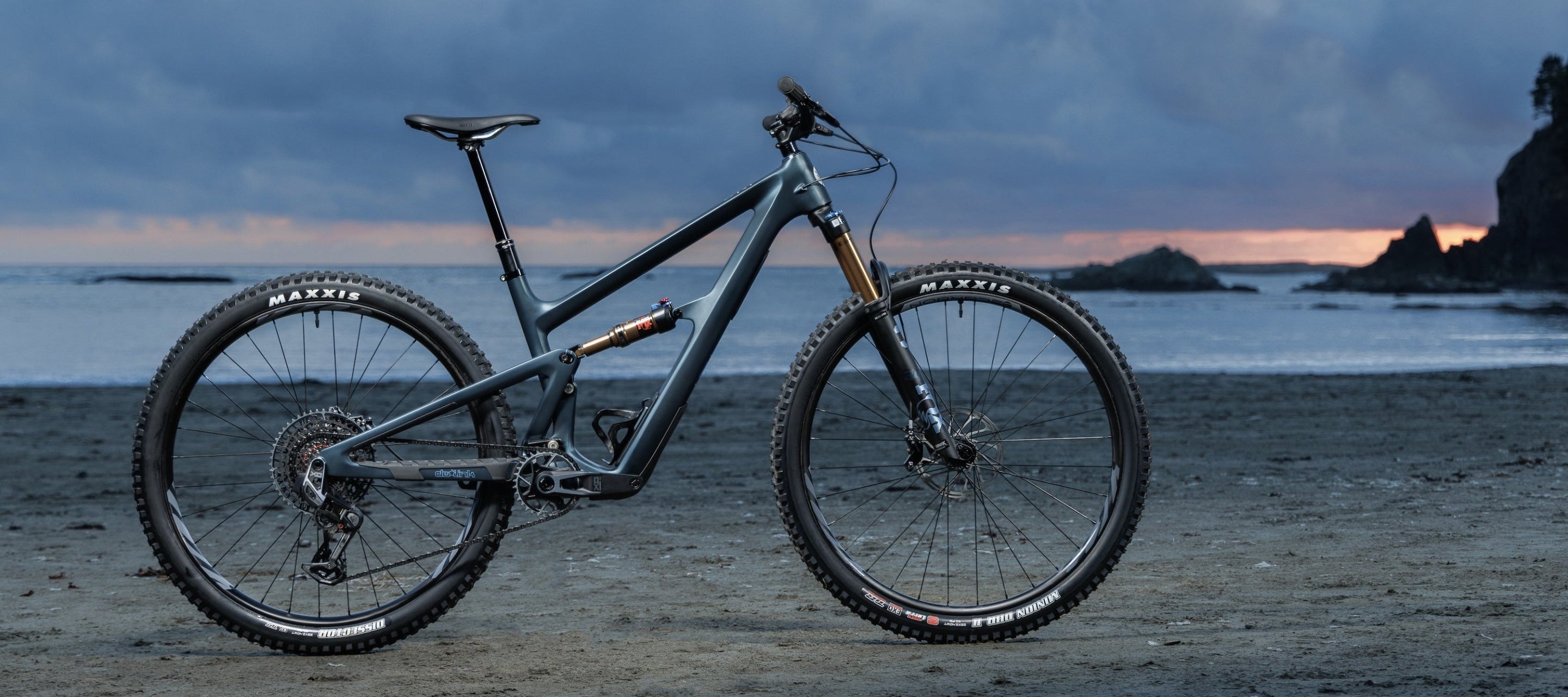

Meet the Ripley, your go-to bike for any trail adventure. Now updated with more travel and slacker geometry, it’s more capable and more fun than ever. With 130mm of efficient DW-link suspension, it climbs fast and feels quick and playful on the way down. There’s now internal frame storage for your essentials, plus expanded sizing for a better fit across the range. Whether you're climbing, cruising, or getting playful on the trail, the Ripley is ready.height, delivering a more dialed ride for every rider.

Feature list image
Feature list image
Feature list image
Feature list image
Feature list image
Feature list image

What makes an RIPLEY a RIPLEY.

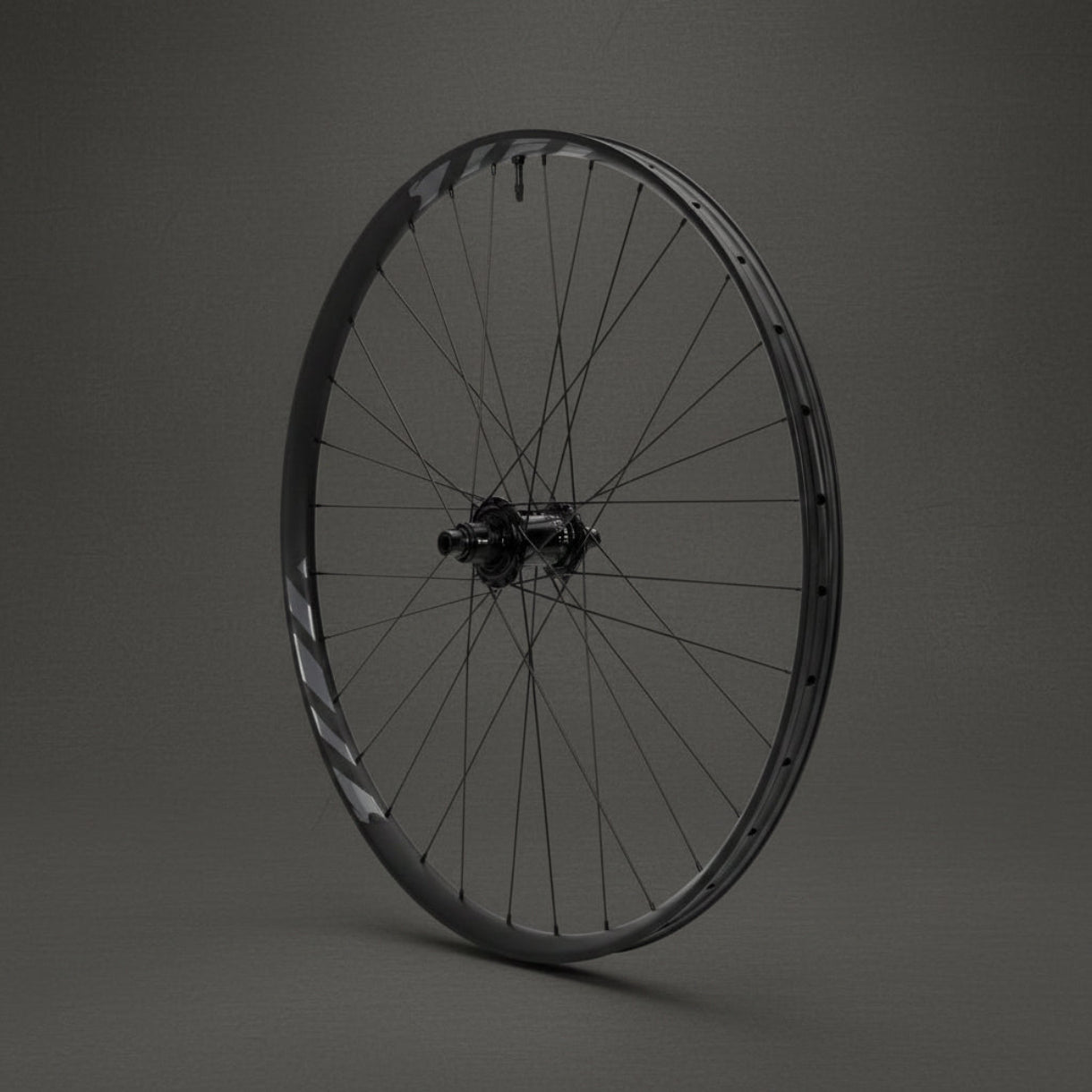

WHEEL SET

Deore, 90, GX AXS, and XT Di2: Blackbird Send Alloy 29" wheels. Upgrade to carbon at checkout.

XTR Di2: Ibis S35 Carbon 29" with i9 Hydra CL hubs.

LIFETIME WARRANTY

If it's our fault, we'll fix it. Simple as that.

Two black pouches with colorful zippers on a wooden surface with a blurred autumn background. Two black pouches with colorful zippers on a wooden surface with a blurred autumn background.

COTOPAXI x IBIS

Get the gear off your body and into your frame with our new in frame stor­age sys­tem. STOW (snacks, tools, or what­ev­er) fits two bags inside your bike frame for a clean look that’s rat­tle free and easy access.

Person riding a mountain bike on a dirt path in a forest Person riding a mountain bike on a dirt path in a forest

RIPLY GEOMETRY

Longer, Slacker, Steeper!

"The New Ibis RIPMO and RIPLEY: An in-depth look"

"They're here. And they are very, very good. The new Ibis Ripmo AND Ripley have dropped on the same day and I've got some questions... Check out this in-depth look inside the world of Ibis Cycles to see just what it takes to engineer and design world-class mountain bikes."


RIPLEY GEOMETRY

Longer, Slacker, Steeper!

140mm Fork (555mm axle to crown)

64.9° Head Tube Angle

76.9–77.9° Seat Tube Angle

436–442mm Chainstays

Measurement SM MD XM LG XL
ASeat Tube 395 400 415 457 477
BTop Tube 577 604 629 654 684
CHead Tube 85 95 110 125 140
DChainstay 29" 436 436 437 440 442
ESeat Tube Angle 77.4° 76.9° 76.9° 77.4° 77.9°
FSaddle Height
for Seat Tube Angle
650 700 745 790 830
GHead Tube Angle 64.9° 64.9° 64.9° 64.9° 64.9°
HWheelbase 1187 1211 1241 1279 1321
IStack 613 619 629 640 650
JReach 440 460 483 511 545
BB Height* 326 329 332 335 338
KBB Drop 48 45 42 39 36
LStandover 680 721 744 759 772
Recommended
Seatpost Drop
140 170 185 213 213
Crank Length 165 165 170 170 170
Tire Size 2.35-2.5" 2.35-2.5" 2.35-2.5" 2.35-2.5" 2.35-2.5"
Water Bottle Size 1 x 22oz 1 x 26oz 1 x 26oz 1 x 26oz 1 x 26oz

Sizing Guide (Rider Height)

S
152–168 cm
M
165–175 cm
XM
173–183 cm
L
180–191 cm
XL
188–201 cm

Setup & Dropper Insert

Setup

Ripley Setup Guides

Use the official Ripley setup guides for fork and shock sag, damping, air pressure and volume spacer starting points.

Sag

Starting Setup

Fork sag 18–25% of 140mm travel
Fork sag range 25.2mm–35mm
Shock sag 25–30% of 52.5mm stroke
Shock sag range 13.25mm–15.75mm
Setup mode Set sag in open mode with riding gear on
Seatpost Dropper Insert & Saddle Height +

Maximum Seatpost Insertion

Frame Size SM MD XM LG XL
Max Insertion 300 310 310 320 385

Bike Yoke Revive Saddle Height Range

Measurement from centre BB to centre of saddle rail, in mm.

Drop Range SM MD XM LG XL
Revive v3 125 Min 552 557 572 612 632
Revive v3 125 Max 670 675 690 730 750
Revive v3 160 Min 587 592 607 647 667
Revive v3 160 Max 720 725 740 780 800
Revive v3 185 Min 612 617 632 672 692
Revive v3 185 Max 740 745 760 800 820
Revive v3 213 Min 656 651 666 700 720
Revive v3 213 Max 805 810 825 865 885

KS Vantage Saddle Height Range

Measurement from centre BB to centre of saddle rail, in mm.

Drop Range SM MD XM LG XL
140 Min 581 586 601 641 661
140 Max 699 704 719 759 779
170 Min 633 628 643 671 691
170 Max 749 754 769 809 829
210 Min 713 708 723 711 731
210 Max 819 824 839 879 899
