IBIS RIPLEY | Frame Only
$6,600.00
/
Couldn't load pickup availability
IBIS RIPLEY FRAME ONLY
SPECS
01
FRAME KIT
Frame Kit
Frame w/ Fox Float Factory Shock
Frame
Ripley V5 Carbon Fiber Monocoque
Shock
Fox Float Factory
Shock Size
210 × 52.5mm
Wheel Setup
29" / MX Optional via Flip Chip
02
FRAME
Frame
Ripley V5
Material
Carbon Fiber Monocoque
Frame Weight
Approx. 7.3lb / 3.3kg — XM Frame with Shock
Wheel Size
29" — MX Optional via Flip Chip
Rear Wheel
29" or 27.5"
Rear Axle
Boost 148mm
Front Axle
Boost 110mm
Seatpost Diameter
34.9mm
Bottom Bracket
73mm BSA Threaded
Rear Brake Mount
180mm Post Mount
Maximum Rear Rotor
220mm
Derailleur Hanger
SRAM UDH
Headset
ZS44 Upper / ZS56 Lower
Tire Clearance
Most 29 × 2.5" and 27.5 × 2.5" Tires
Frame Storage
Large Internal Ibis STOW Frame Storage
Storage Bags
Internal Frame Storage Bags
Bottle Clearance
S: 22oz / M–XL: 26oz
Sizes
S / M / XM / L / XL
Frame Warranty
Lifetime
Bushings
Lifetime Replacement
03
SUSPENSION
REAR
130
MM
FRONT
140
MM
PLATFORM
DW
LINK
WHEELS
29
MX OPTION
Rear Travel
130mm
Suspension Platform
DW-Link
Included Shock
Fox Float Factory
Shock Size
210 × 52.5mm
Coil Shock
Compatible — 210 × 52.5mm
Recommended Fork
140mm
Compatible Fork Travel
130–150mm
Recommended Fork Offset
44mm
The Ripley V5 is designed around a 140mm fork with a 44mm offset and is compatible with 130–150mm fork travel. The frame uses a 210 × 52.5mm rear shock and is supplied with a Fox Float Factory shock.
04
DRIVETRAIN COMPATIBILITY
Chainline
55mm
Round Chainring
30T Minimum / 34T Maximum
Oval Chainring
Up to 32T Recommended
Bottom Bracket
73mm BSA Threaded
Derailleur Hanger
SRAM UDH
Chain Guide
ISCG 05 Compatible
ISCG 05 Tab Mount
Available Separately
Images may not show actual frame kit content. Pricing and specifications subject to change without notice.

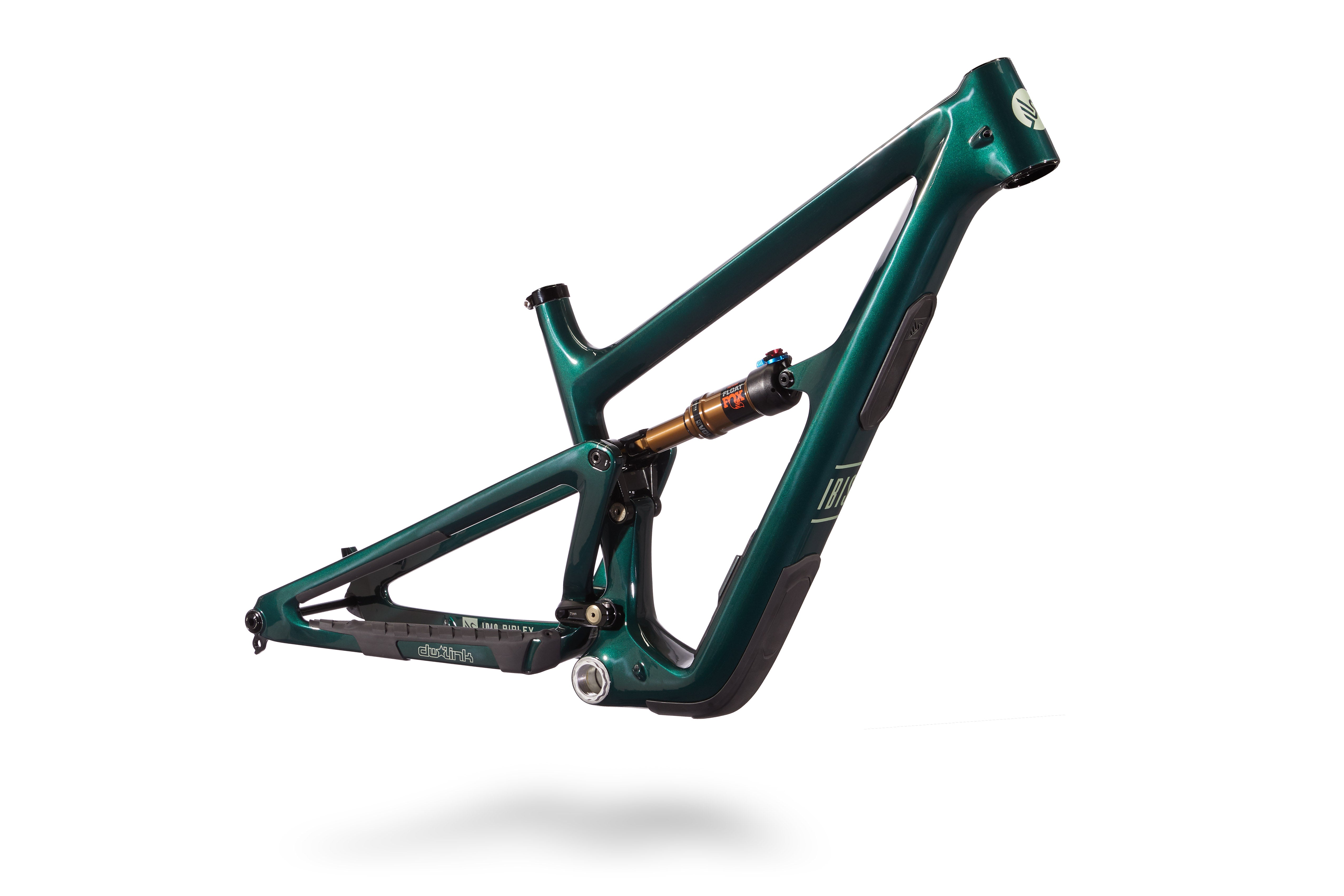

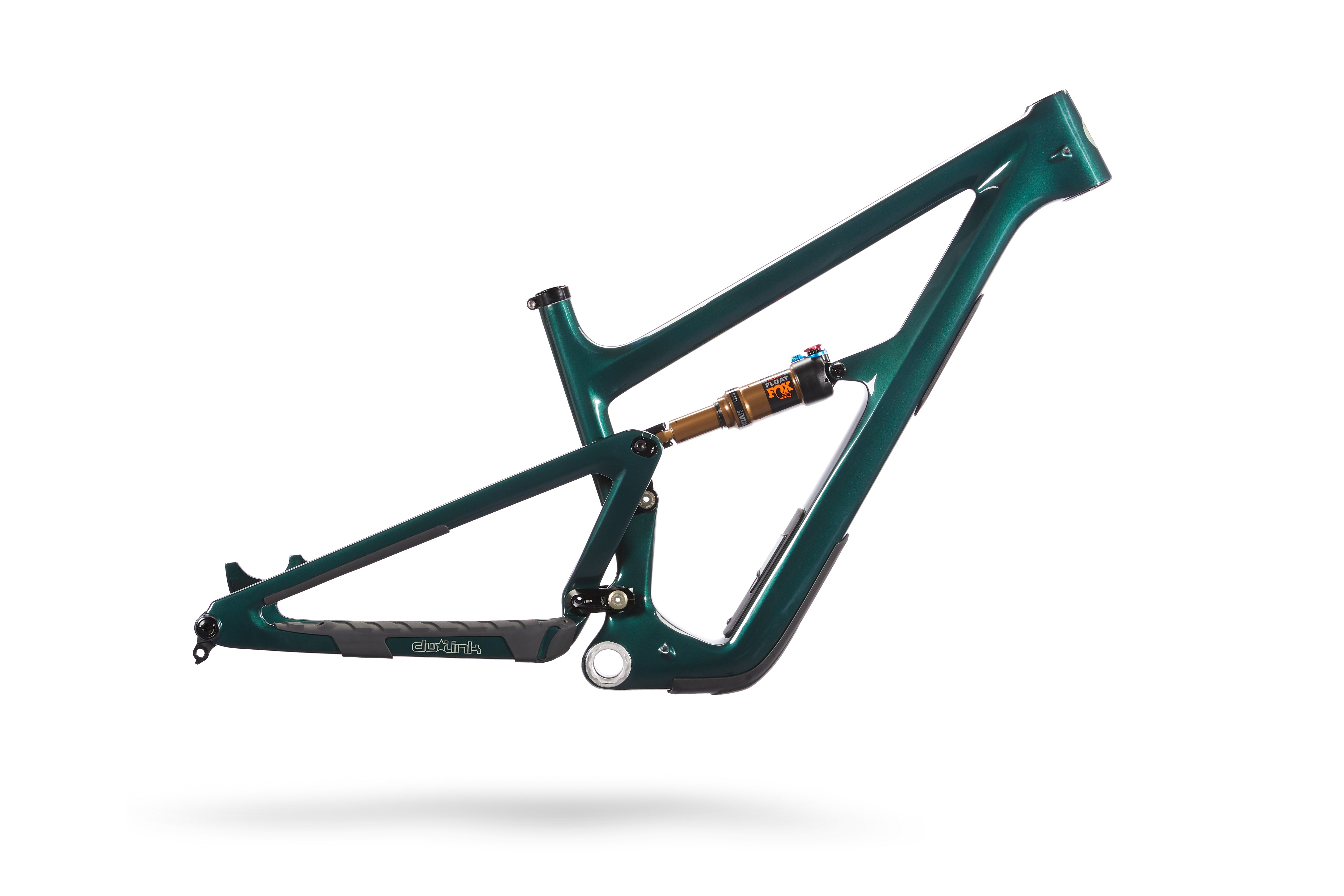

Green Flash

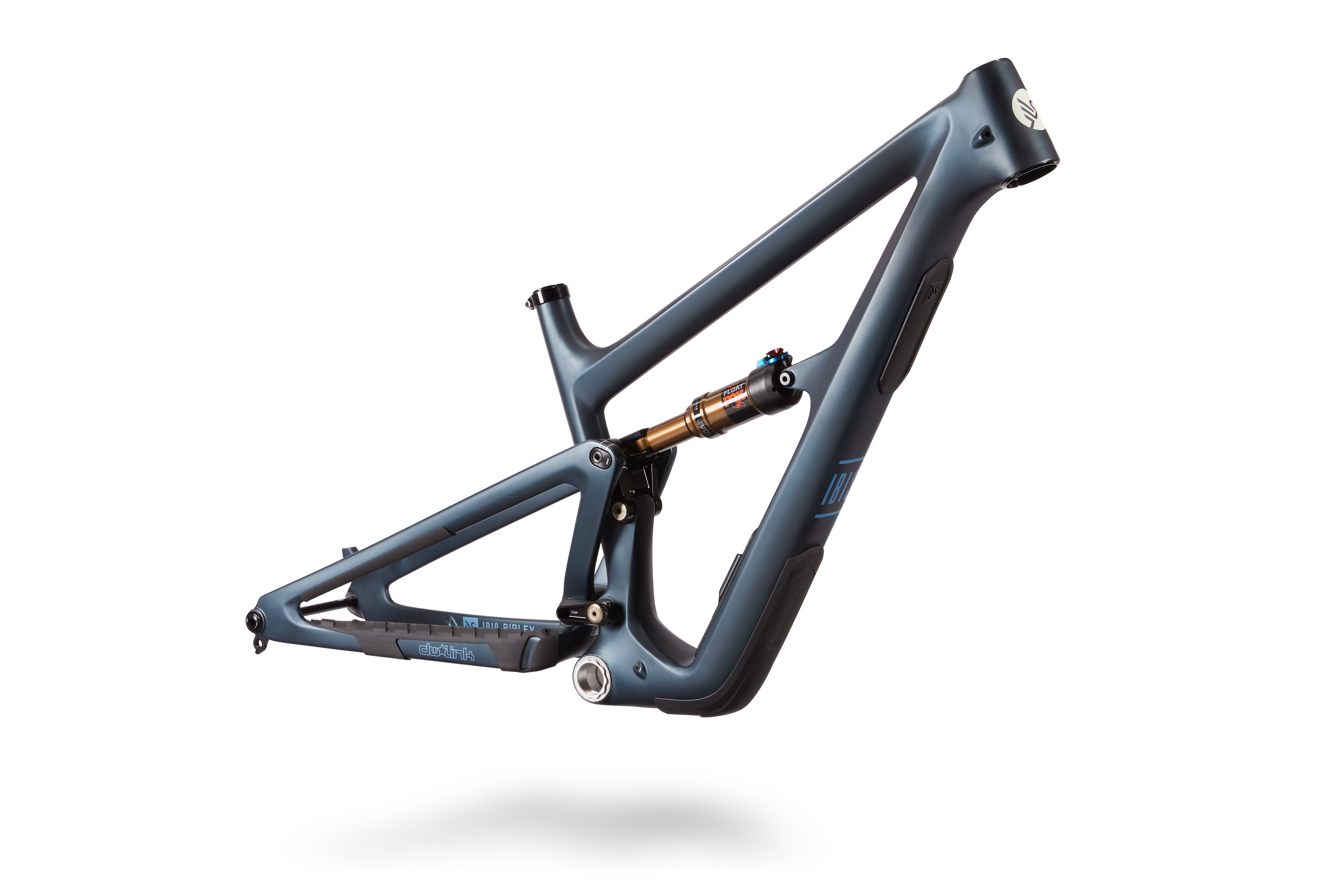

Blue Hour
RIPLEY
Adventure Awaits.
130mm
REAR TRAVEL
140mm
FRONT TRAVEL
29"
WHEELS • MX OPTIONAL VIA FLIP CHIP
DW LINK
SUSPENSION
Ripley Geometry
Longer, Slacker, Steeper!
64.9° Head Tube Angle | 76.9–77.9° Seat Tube Angle | 436–442mm Chainstays
140mm Fork (555mm axle to crown)
-
| Measurement | SM | MD | XM | LG | XL |
|---|---|---|---|---|---|
| ASeat Tube | 395 | 400 | 415 | 457 | 477 |
| BTop Tube | 577 | 604 | 629 | 654 | 684 |
| CHead Tube | 85 | 95 | 110 | 125 | 140 |
| DChainstay 29" | 436 | 436 | 437 | 440 | 442 |
| ESeat Tube Angle | 77.4° | 76.9° | 76.9° | 77.4° | 77.9° |
|
FSaddle Height for Seat Tube Angle |
650 | 700 | 745 | 790 | 830 |
| GHead Tube Angle | 64.9° | 64.9° | 64.9° | 64.9° | 64.9° |
| HWheelbase | 1187 | 1211 | 1241 | 1279 | 1321 |
| IStack | 613 | 619 | 629 | 640 | 650 |
| JReach | 440 | 460 | 483 | 511 | 545 |
| BB Height* | 326 | 329 | 332 | 335 | 338 |
| KBB Drop | 48 | 45 | 42 | 39 | 36 |
| LStandover | 680 | 721 | 744 | 759 | 772 |
| Recommended Seatpost Drop |
140 | 170 | 185 | 213 | 213 |
| Crank Length | 165 | 165 | 170 | 170 | 170 |
| Tire Size | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" |
| Water Bottle Size | 1 x 22oz | 1 x 26oz | 1 x 26oz | 1 x 26oz | 1 x 26oz |
