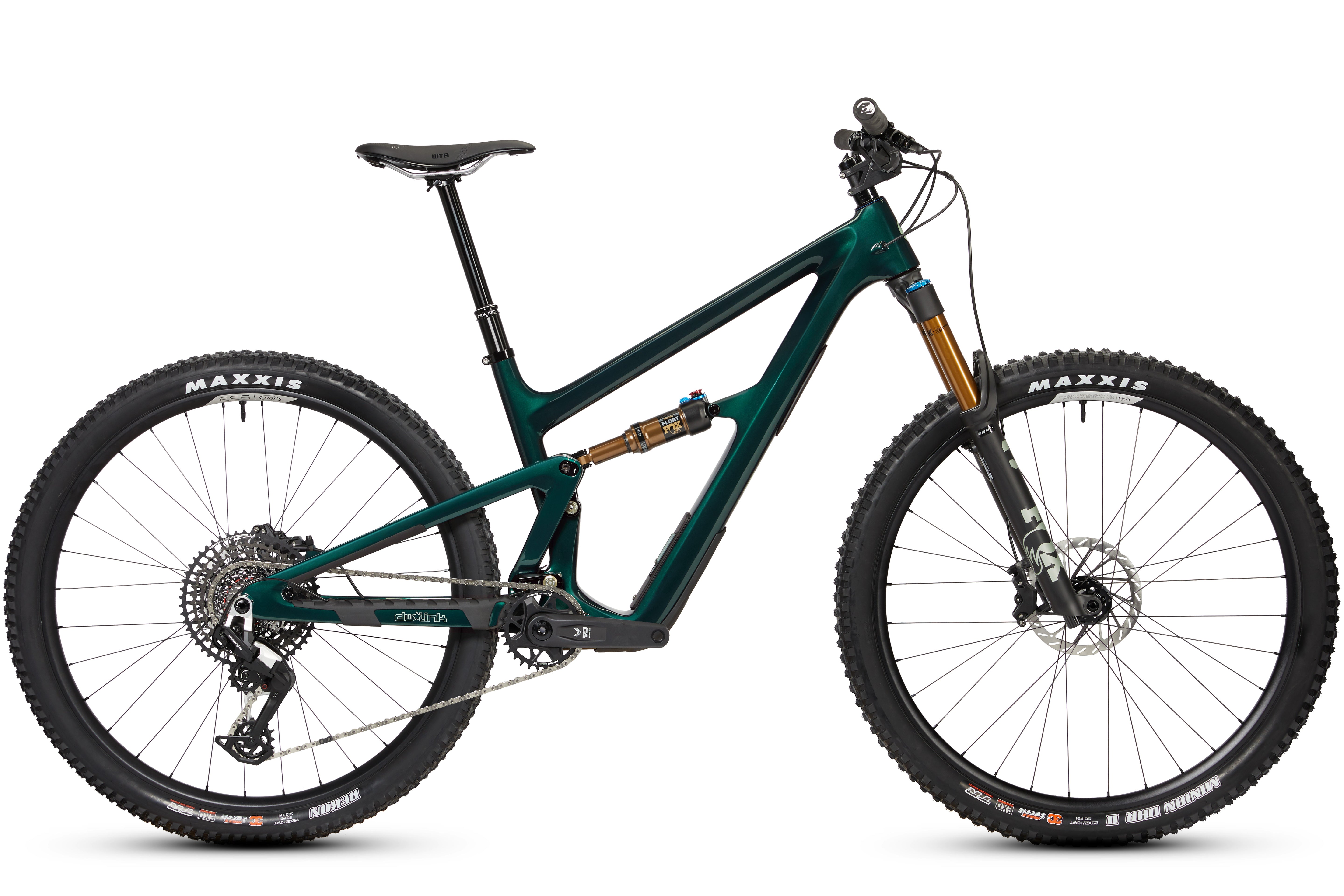

IBIS RIPLEY | 90

Fork: Fox Float SL 36, Factory Series, Grip X, 140mm, 29", 110mm x 15mm

Shock: Fox Float, Factory Series, Float w/EVOL, 210mm x 52.5mm

Wheels: Ibis 933 Aluminum Rims, Blackbird Hubs

Front Tire: Maxxis DHR2, 29" x 2.4", Exo, TR - OR - Maxxis Forekaster, 29" x 2.4", Exo, TR

Rear Tire: Maxxis Rekon, 29" x 2.4", Exo, TR

Brakes: SRAM DB8 Stealth

Rotors (F/R): SRAM Centerline 6-Bolt 180F/180R

Crankset: SRAM Eagle 90 Transmission DUB 30t Alloy Ring
S–M: 165mm, XM–XL: 170mm

Bottom Bracket: SRAM DUB BSA

Rear Derailleur: SRAM Eagle 90 Transmission

Shifter: SRAM Eagle 90 Transmission

Cassette: SRAM XS 1275 Transmission, T-Type, 10-52T

Chain: SRAM GX Eagle Transmission, T-Type

Headset: Cane Creek 50: ZS44/ZS56

Grips: Lizard Skins Strata Single Clamp

Handlebar: Blackbird 35 Aluminum Riser Bar 800mm

Stem: Blackbird 35 Stem
S–M: 35mm, XM–XL: 50mm

Seatpost: KS Vantage Dropper, 34.9mm
S: 110-140mm, M-XM: 140-170mm, L-XL: 180-210mm

Saddle: WTB Silverado Fusion CrMo 142

Frame Material: Carbon Fiber Monocoque

Frame Weight: 7.3 lbs XM frame w/ Fox Float

Wheel Size: 29” (MX optional via Flip Chip)

Front Travel: 140mm

Rear Travel: 130mm

Shock Specs: 210mm x 52.5mm

Boost Axles: 148mm rear / 110mm front

Seatpost Diameter: 34.9mm

Rear Brake: 180mm Post mount / 220mm max rotor

Chainstay Length: 433–438mm

Bottom Bracket: Threaded BB (73mm BSA)

Chainline: 55mm chainline

Derailleur Hanger: SRAM UDH

ISCG 05 Compatible: ISCG 05 Tab Mount available separately

Headset: ZS44 upper / ZS56 lower

Bottle Mounts: 22oz bottle on size small, 26oz on all other sizes

Frame Storage: Large Internal frame storage with easy access door

Colors: Blue Hour or Green Flash

Frame Storage Bag: Sustainably sourced internal frame bags produced in partnership with Cotopaxi

Sizes: Small (S), Medium (M), Extra medium (XM), Large (L) and Extra Large (XL)

Frame & Wheels Warranty: Lifetime Warranty

Bushings Warranty: Lifetime replacement on bushings
