OSO TR

TRAILS ALL DAY

REAR TRAVEL

FRONT TRAVEL

SIZE SPECIFIC WHEEL SIZE

SM–XM FRAMES

SIZE SPECIFIC WHEEL SIZE

LG-LX FRAMES

SUSPENSION

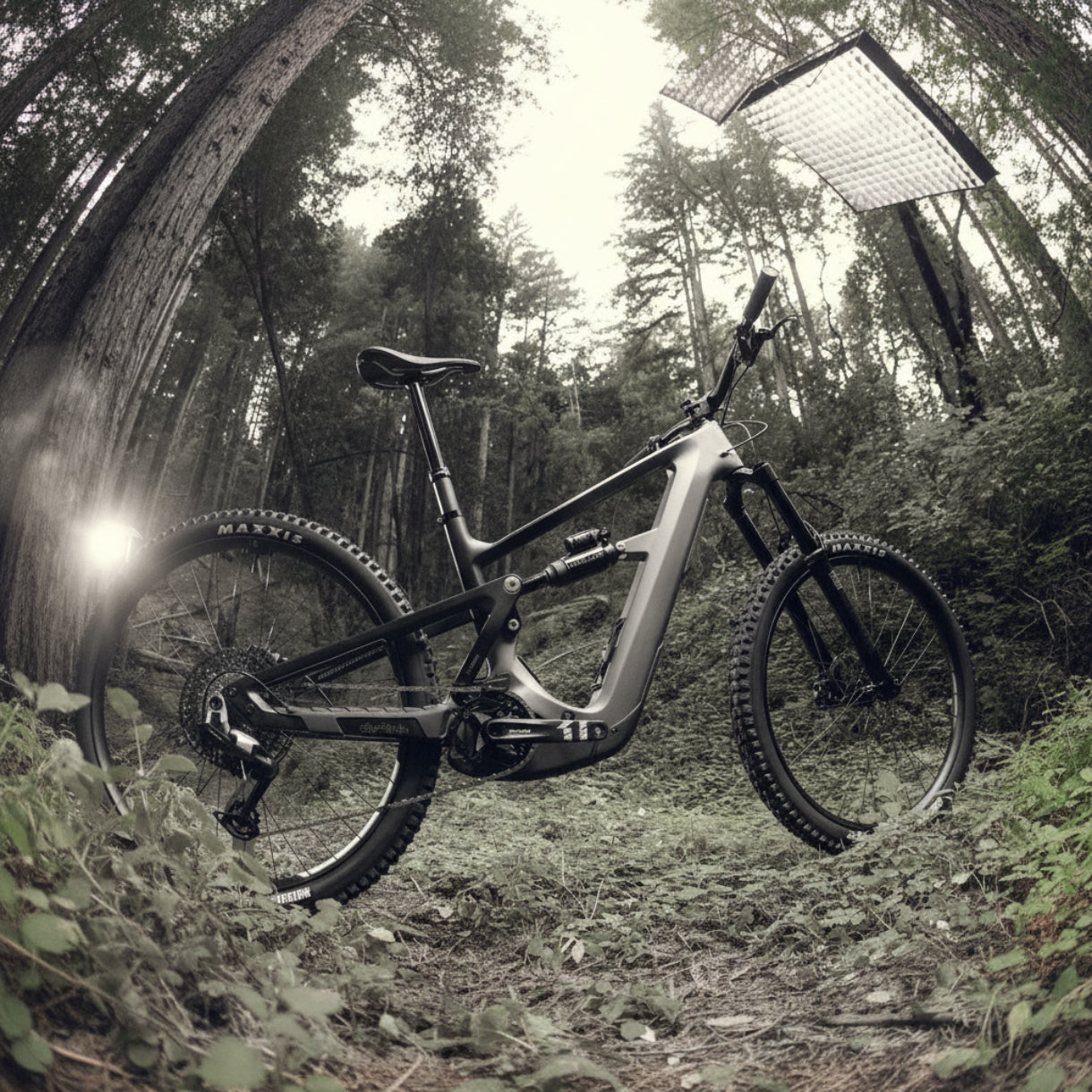

OSO TR

Powered by a Bosch CX Gen 5 motor, the Oso TR is a do-everything trail companion, efficient enough for all-day missions, yet lively and capable on the descents. From after-work laps to full-blown backcountry adventures, the TR delivers a balanced ride that goes anywhere and everywhere.

OSO TR Features

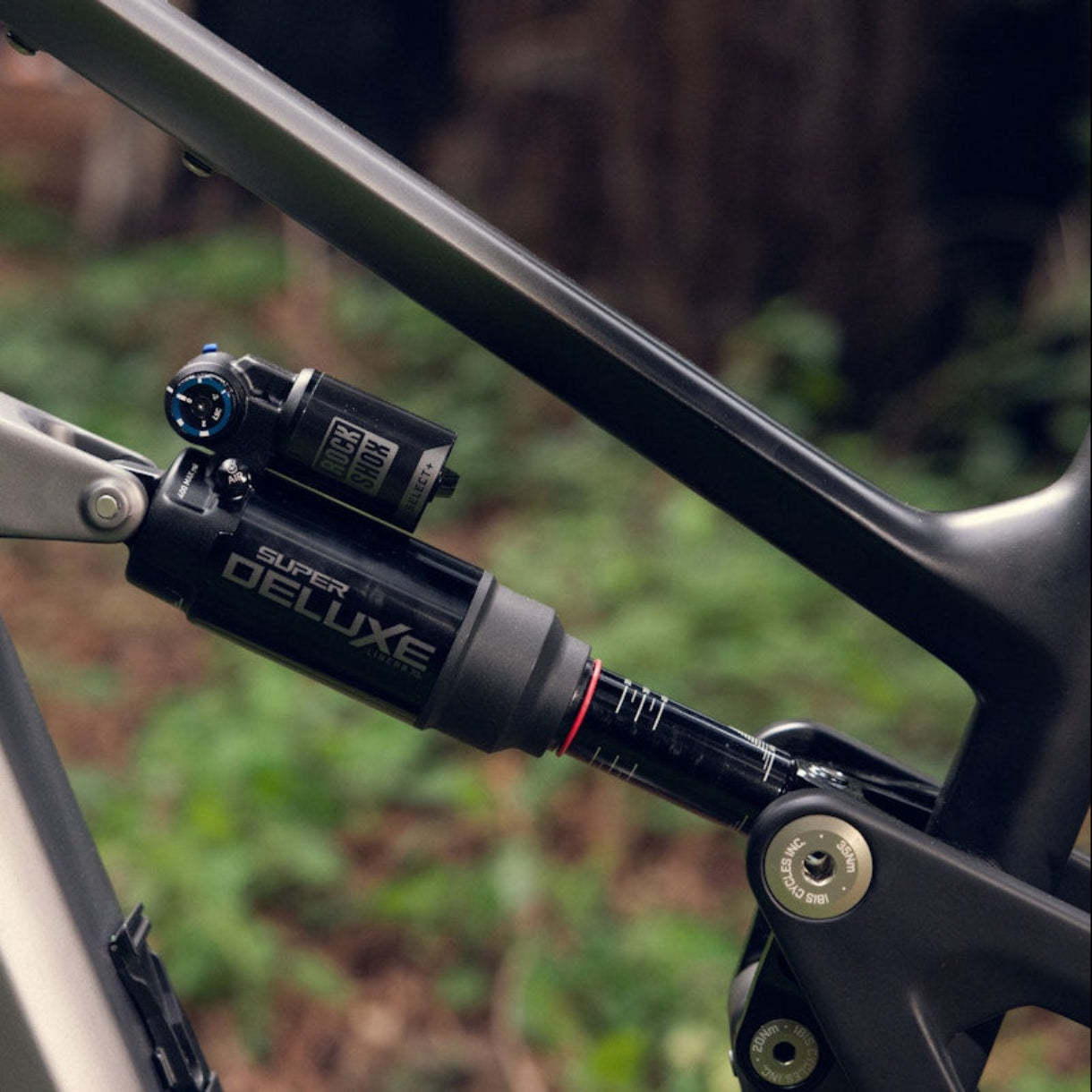

Modular Chassis

Swap the shock, clevis, and fork to make any of the three travel lengths
29” and 27.5” compatible
Adjust chainstay length (see below)

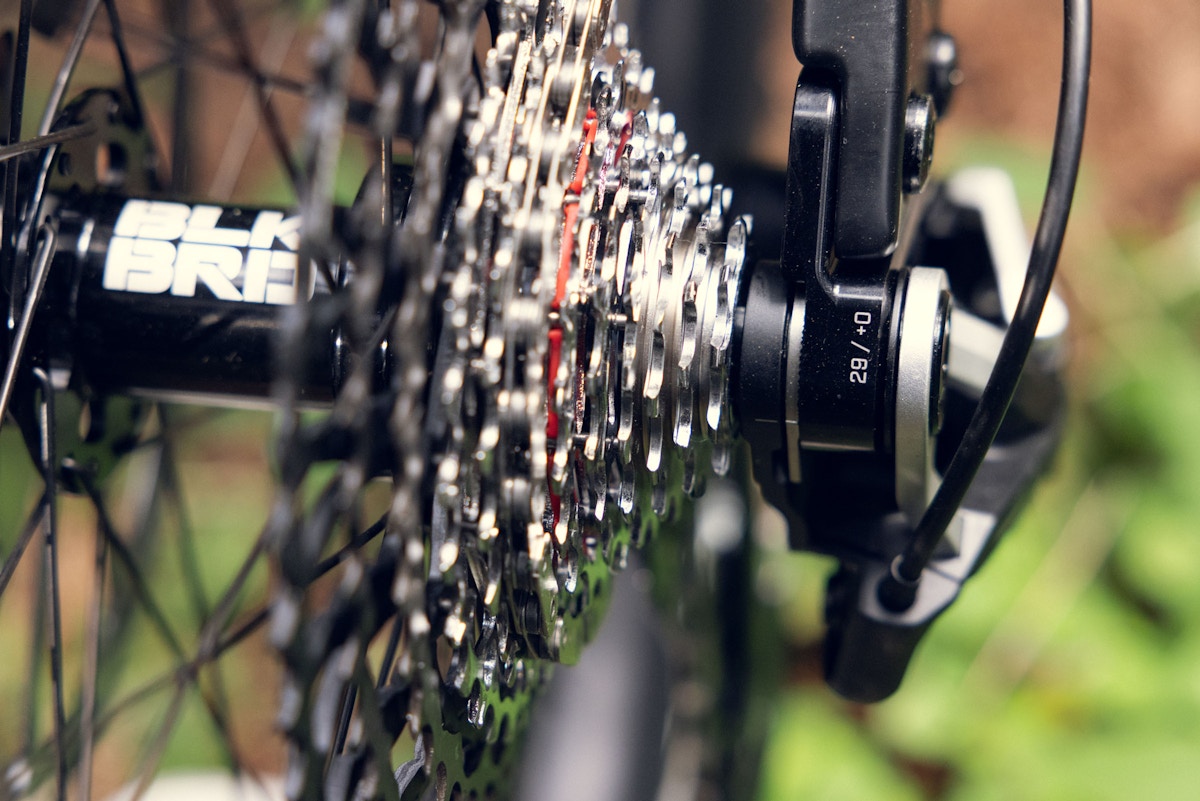

Modular Dropout System

Bolt-on dropouts and brake mounts allow riders to fine-tune chainstay length and wheel size configuration.

27.5” rear wheel: The Oso HD ships with the 440mm dropout on SM/MD and 455mm dropout on the XM.
Both 27.5 dropout sizes (440mm and 455mm) will be available aftermarket.

29” rear wheel: The Oso HD LG/XL all ship with the 455mm dropout.
Both 29” dropout sizes (455mm and 465mm) will be available aftermarket.

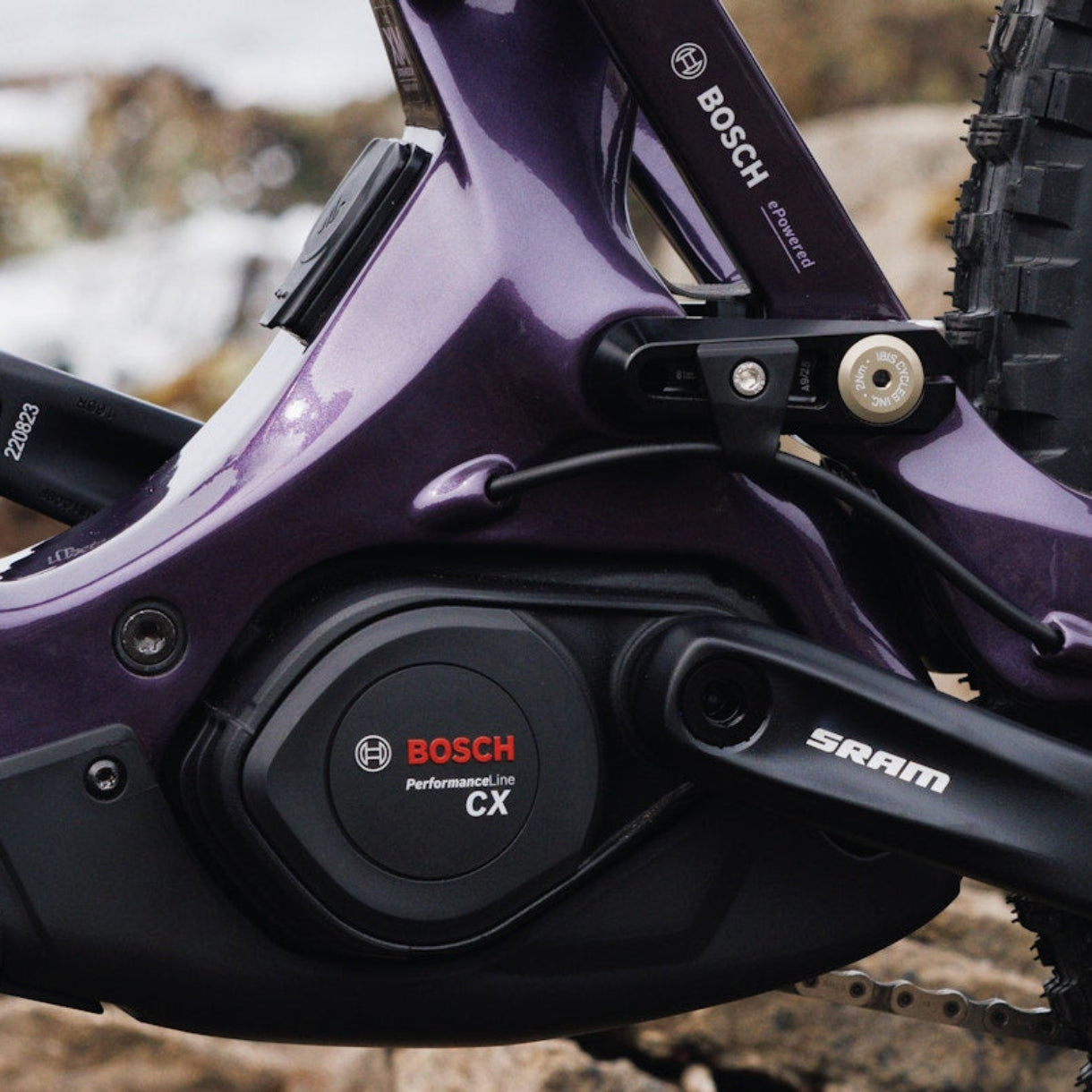

Bosch Performance Line CX Drive Unit

Bosch’s Gen5 motor features quiet, powerful, natural-feeling pedal assist and refined torque delivery for technical terrain. Gen 5 with [Top Secret] Nm torque, and power multiplier. Supported by the trusted Bosch service network.

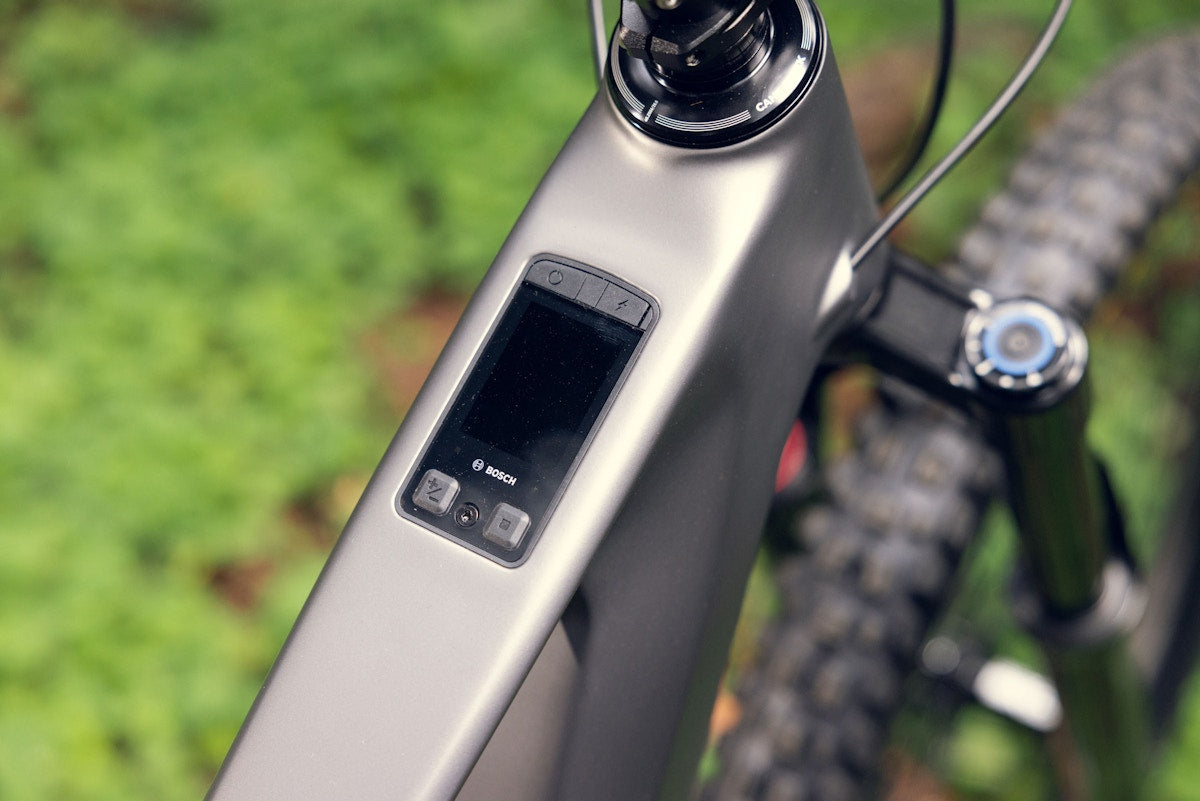

Kiox 400c Display

Included as standard, providing best-in-class user interface and ride metrics.

Size Specific Everything

Ensures consistent handling and ride feel across all frame sizes (SM-XL) by customizing geometry, chainstay lengths, bottom bracket heights, and suspension kinematics for every bike.

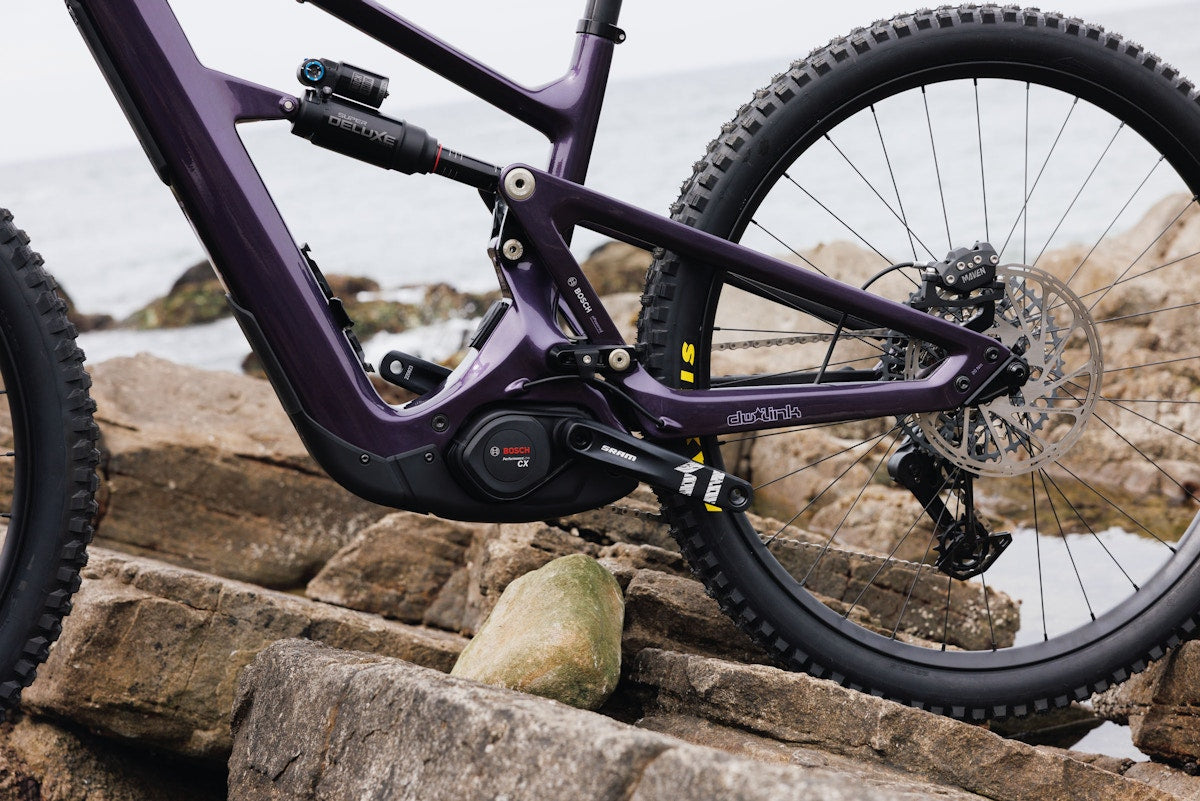

DW Link Supension

The Oso is built around the highly regarded dw-link suspension platform, known for its efficient climbing and confident descending performance. Evolving from race-proven design principles, it features a more progressive shock rate and a shorter clevis for compatibility with a wide range of coil shocks.

Size-specific kinematics ensure each frame pedals efficiently while maintaining composure, traction, and quiet performance across technical terrain.

Modular Chassis

Swap the shock, clevis, and fork to make any of the three travel lengths
29” and 27.5” compatible
Adjust chainstay length (see below)

Modular Dropout System

Bolt-on dropouts and brake mounts allow riders to fine-tune chainstay length and wheel size configuration.

27.5” rear wheel: The Oso HD ships with the 440mm dropout on SM/MD and 455mm dropout on the XM.
Both 27.5 dropout sizes (440mm and 455mm) will be available aftermarket.

29” rear wheel: The Oso HD LG/XL all ship with the 455mm dropout.
Both 29” dropout sizes (455mm and 465mm) will be available aftermarket.

Bosch Performance Line CX Drive Unit

Bosch’s Gen5 motor features quiet, powerful, natural-feeling pedal assist and refined torque delivery for technical terrain. Gen 5 with [Top Secret] Nm torque, and power multiplier. Supported by the trusted Bosch service network.

Kiox 400c Display

Included as standard, providing best-in-class user interface and ride metrics.

Size Specific Everything

Ensures consistent handling and ride feel across all frame sizes (SM-XL) by customizing geometry, chainstay lengths, bottom bracket heights, and suspension kinematics for every bike.

DW Link Supension

The Oso is built around the highly regarded dw-link suspension platform, known for its efficient climbing and confident descending performance. Evolving from race-proven design principles, it features a more progressive shock rate and a shorter clevis for compatibility with a wide range of coil shocks.

Size-specific kinematics ensure each frame pedals efficiently while maintaining composure, traction, and quiet performance across technical terrain.

Uninterrupted seat tube design maximizes insertion depths, allowing for the use of long-travel dropper posts across the entire size range.

600Wh internal battery and optional PowerMore 250Wh range extender compatible (sold separately), delivering a total capacity of 850Wh.

Low and centered battery placement improves balance and handling.
600Wh provides sufficient range for the majority of rides and a lighter system weight. Adding the PowerMore opens up longer routes and all-day epics.
A thoughtfully positioned charge port allows for use of the shortest PowerMore cable for fuss-free integration.

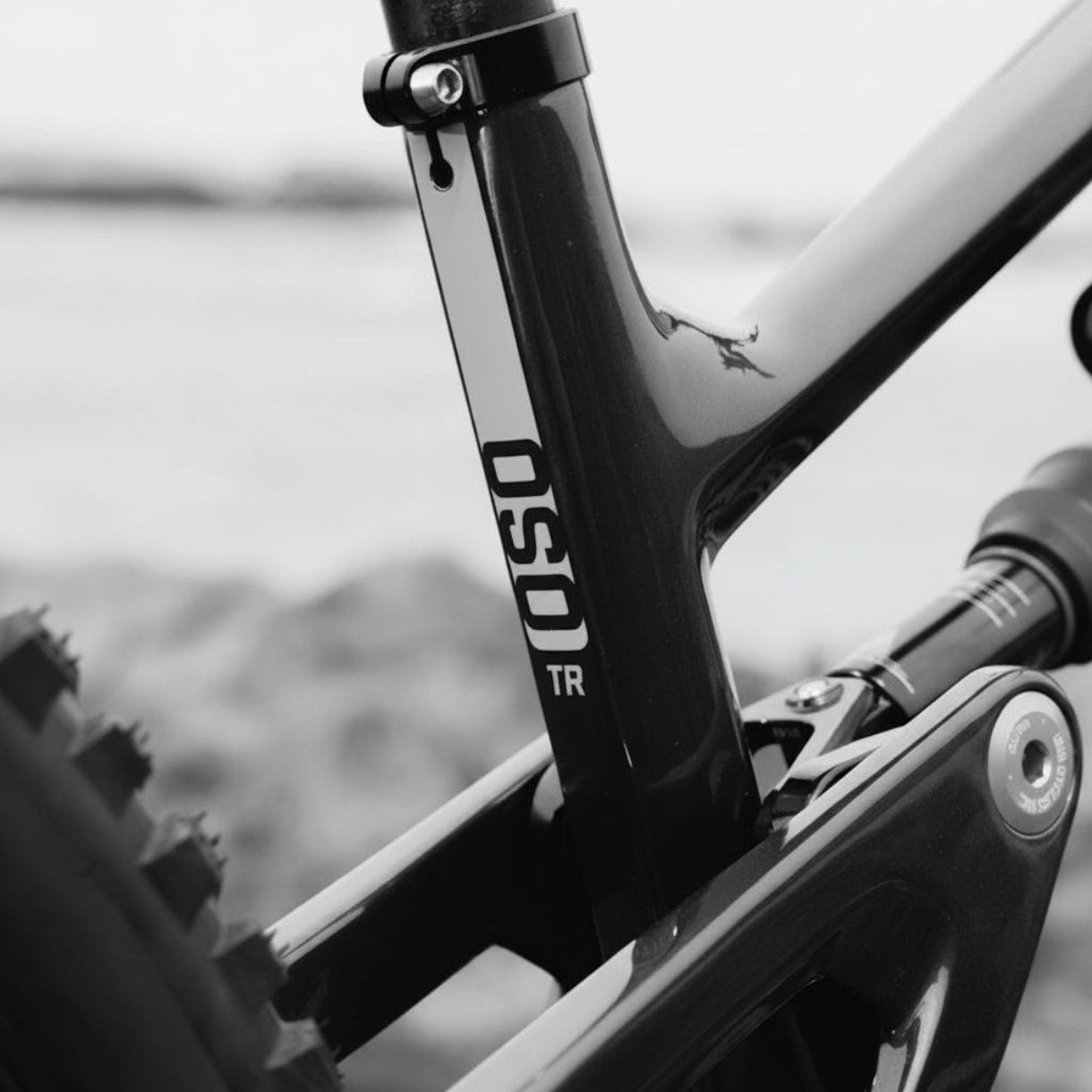

Fits most 2.5 tires.

If it's our fault, we'll fix it. Simple as that.
Lifetime frame warranty.
Lifetime bushing warranty.
Two year Bosch warranty.

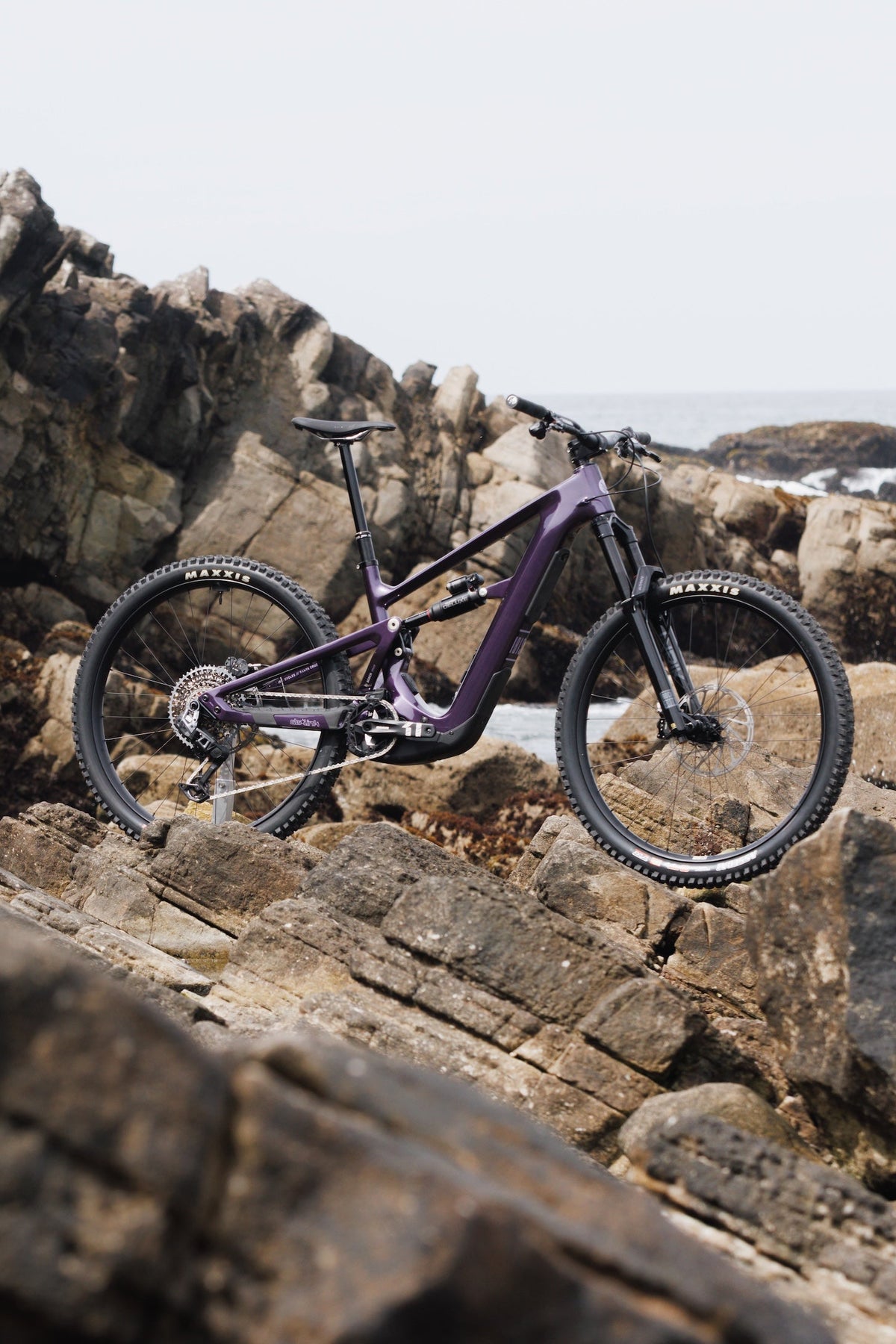

The new Ibis Oso, a modular e-bike platform built to adapt.

OSO TR GEOMETRY

160mm Fork (575mm axle to crown)

63.2-64° Head Tube Angle

77-78.5° Seat Tube Angle

440–455mm Chainstays

Measurement	SM	MD	XM	LG	XL
Wheel Size	MX Wheels	MX Wheels	29	29	29
ASeat Tube	381	381	405	432	450
BTop Tube	581	605	625	646	666
CHead Tube	99	109	121	136	152
DChainstay	440	440	455	455	455
ESeat Tube Angle	77°	77°	77.5°	78°	78.5°
FSaddle Height for Seat Tube Angle	650	700	745	790	830
GHead Tube Angle	63.2°	64°	64°	64°	64°
HWheelbase	1222	1241	1285	1315	1346
IStack	619	630	638	648	660
JReach	438	460	484	508	532
KBB Drop	34	31	28	25	22
BB Height*	339	342	345	348	351
LStandover	697	708	736	747	763
Dropper Post Length	140–170	140–170	180–210	180–210	180–210
Crank Length	160	160	160	160	160
Water Bottle Size	22oz	22oz	26oz	26oz	26oz

Sizing Guide (Rider Height)

S

152–168 cm

M

165–175 cm

XM

173–183 cm

L

180–191 cm

XL

188–201 cm

Setup & Dropper Insert

Setup

Oso TR Setup Guides

Use the official Oso TR setup guide for suspension setup, Bosch system controls, air pressure, damping and volume spacer starting points.

Oso TR Setup Guide Oso Exploded Parts Diagram

Sag

Starting Setup

Fork sag 18–25% of 160mm travel

Fork sag range 28.8mm–40mm

Shock sag 25–30% of 60mm stroke

Shock sag range 15mm–18mm

Setup mode Set sag in open mode with riding gear on

Seatpost Dropper Insert & Saddle Height
