$11,990.00

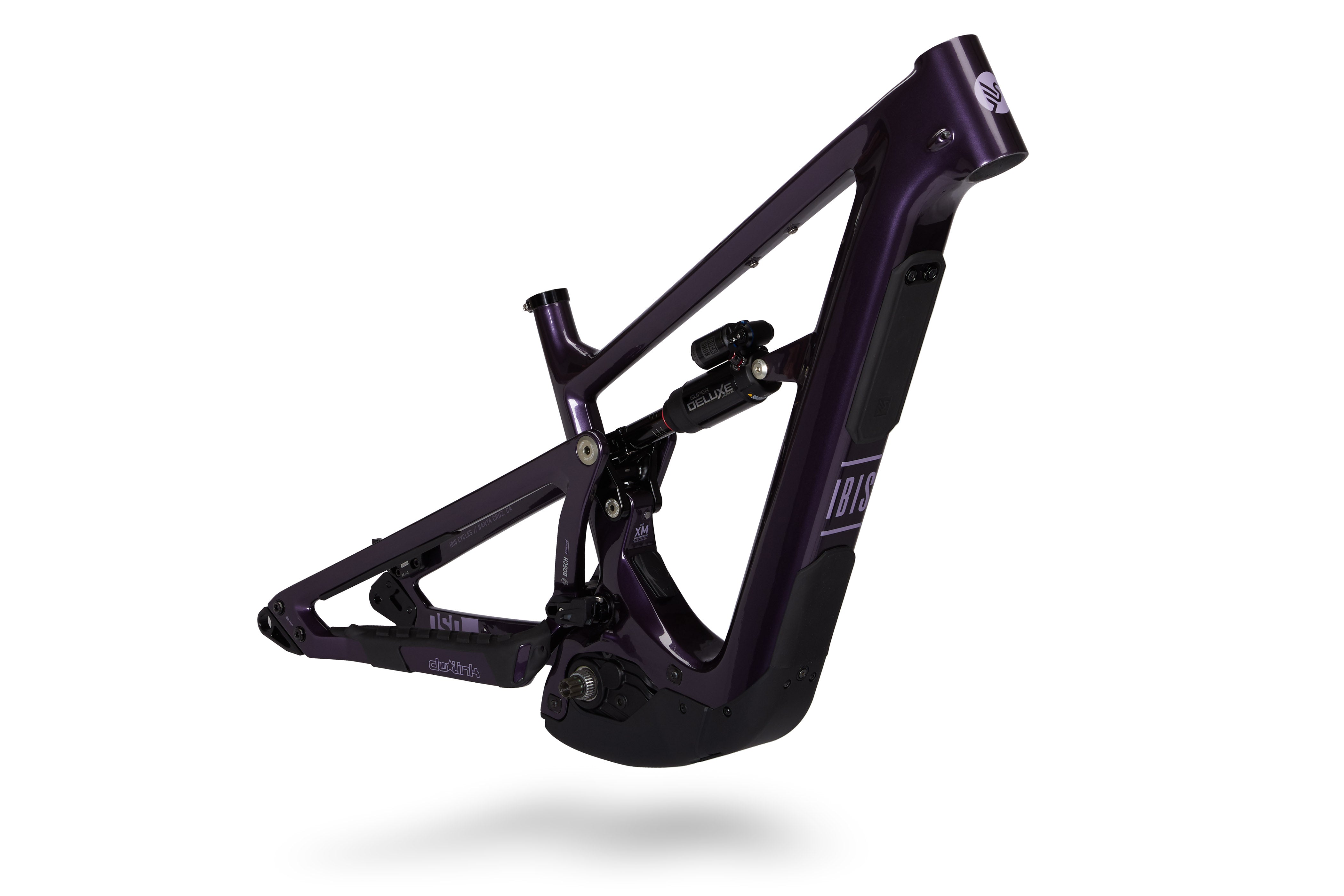

Color: Purple nightshade
Frame Size: Sm

Enquire for availability or pre-oder this product

Enter your email and we'll be get back to you

IBIS OSO TR | Frame Only

Purple Nightshade, SM

$11,990.00

SPECS

Build Specs

Shock: RockShox Super Deluxe, Select+, 230x60mm

Motor: Bosch Performance Line CX, Generation 5

Frame

Version: V2 TR

Frame Material: Carbon Fiber

Wheel Size: Size XM–XL: 29” wheels / Size SM–MD: MX wheels (MX or 29” option in all sizes via modular dropout system)

Suspension

Front Travel: 160mm

Rear Travel: 150mm (coil-friendly suspension layout)

Drivetrain Compatibility & Geometry

Boost Axles: 148mm rear / 110mm front

Seatpost Diameter: 34.9mm

Rear Brake: 200mm post mount / 220mm max

+10mm and +15mm dropouts require a different brake adapter that has a 220mm post mount

Chainstay Length: 29": 455mm (standard), 465mm (long option, available aftermarket)

MX: 440mm (standard), 455mm (long option, available aftermarket)

Chainline: 55mm chainline

Chainring Compatibility: 32–36T chainring compatibility (34T standard)

Chainguide: MRP, ships with a 34T mounting plate

Headset: ZS56, bigger bearings and allows for internal light routing

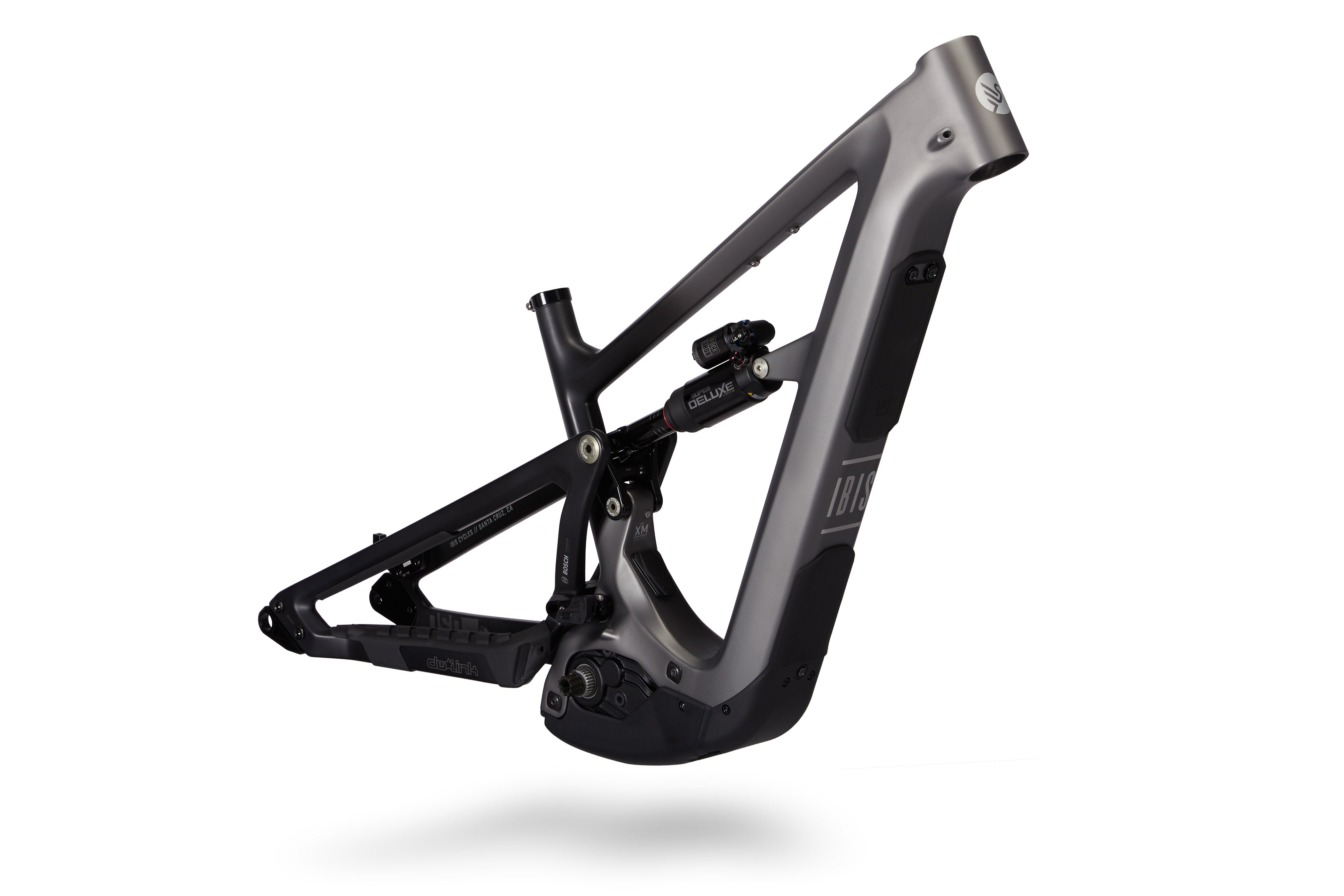

Color: Shady Charcoal or Purple Nightshade

Sizes: S / M / XM / L / XL

Frame Protection: Molded rubber frame protection, robust motor & downtube guards

Frame Warranty: Lifetime

Bushing Warranty: Lifetime

Motor

Bosch Warranty: 2 Years

Motor: Bosch Performance Line CX (Gen 5)

Battery: 600Wh internal battery and optional PowerMore 250Wh range extender compatible, delivering a total capacity of 850Wh

Charger: Bosch Smart System Charger

Controller: Top tube mounted Kiox 400C controller and display
image image
image image

OSO TR

Trails all day.

150mm

REAR TRAVEL

160mm

FRONT TRAVEL

29" / 27.5"

SIZE SPECIFIC WHEEL SIZE

SM–XM FRAMES

29"

SIZE SPECIFIC WHEEL SIZE

LG-LX FRAMES

DW LINK

SUSPENSION

OSO TR Geometry

160mm Fork (575mm axle to crown)

63.2-64° Head Tube Angle | 77-78.5° Seat Tube Angle | 440–455mm Chainstays

-

Measurement SM MD XM LG XL
Wheel Size MX Wheels MX Wheels 29 29 29
ASeat Tube 381 381 405 432 450
BTop Tube 581 605 625 646 666
CHead Tube 99 109 121 136 152
DChainstay 440 440 455 455 455
ESeat Tube Angle 77° 77° 77.5° 78° 78.5°
FSaddle Height
for Seat Tube Angle 		650 700 745 790 830
GHead Tube Angle 63.2° 64° 64° 64° 64°
HWheelbase 1222 1241 1285 1315 1346
IStack 619 630 638 648 660
JReach 438 460 484 508 532
KBB Drop 34 31 28 25 22
BB Height* 339 342 345 348 351
LStandover 697 708 736 747 763
Dropper Post Length 140–170 140–170 180–210 180–210 180–210
Crank Length 160 160 160 160 160
Water Bottle Size 22oz 22oz 26oz 26oz 26oz

Sizing Guide (Rider Height)

S
152–168 cm
M
165–175 cm
XM
173–183 cm
L
180–191 cm
XL
188–201 cm
