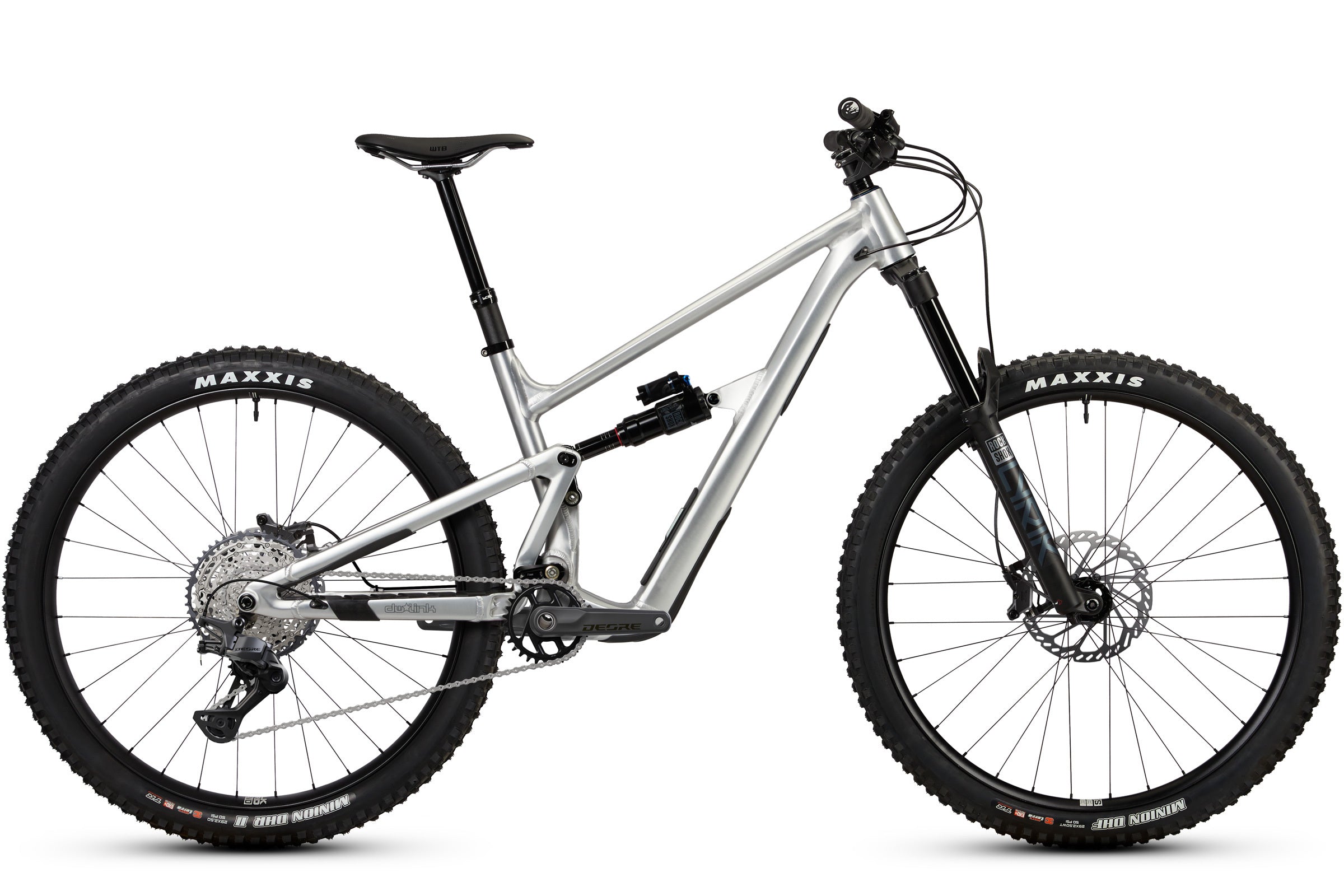

IBIS RIPMO AF | DEORE
/
Couldn't load pickup availability
FIND IT IN NEARBY STORE
FIND IT IN NEARBY STORE
SPECS
Frame
Frame
Version: V2
Frame Material: Aluminum
Wheel Size: Size XM–XL: 29” wheels | Size SM–MD: MX wheels | MX or 29” option in all sizes via flip chip
Suspension
Suspension
Front Travel: 160mm
Rear Travel: 150mm
Shock Specs: 230mm x 60mm (coil shock compatible)
Drivetrain Compatibility & Geometry
Drivetrain Compatibility & Geometry
Boost Axles: 148mm rear / 110mm front
Seatpost Diameter: 34.9mm
Rear Brake: 180mm Post mount / 220mm max rotor
Chainstay Length: 29": 435–440mm | MX: 432–437mm
Bottom Bracket: Threaded (73mm English threaded)
Chainline: 55mm chainline
Derailleur Hanger: SRAM UDH
ISCG 05 Compatible: ISCG 05 Tab Mount available separately
Headset: ZS44 upper / ZS56 lower
Bottle Mounts: 26oz bottles fit inside the front triangle on all sizes
Features
Features
Chainline: 55mm chainline
Derailleur Hanger: SRAM UDH
ISCG 05 Compatible: ISCG 05 Tab Mount available separately
Headset: ZS44 upper / ZS56 lower
Bottle Mounts: 26oz bottles fit inside the front triangle on all sizes
Frame Storage: Large internal frame storage with easy access door
Frame Storage Bag: Ibis Stow bag

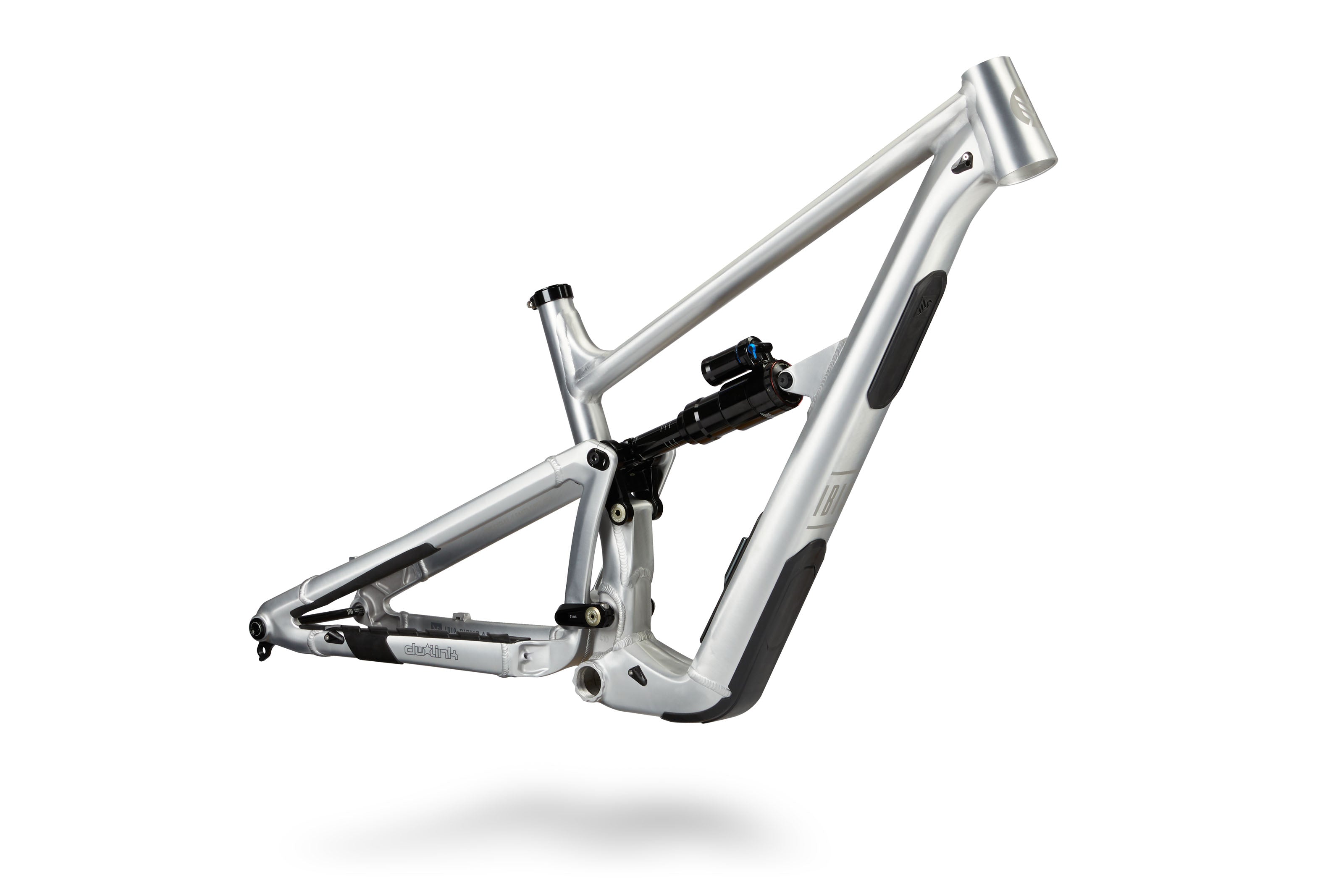

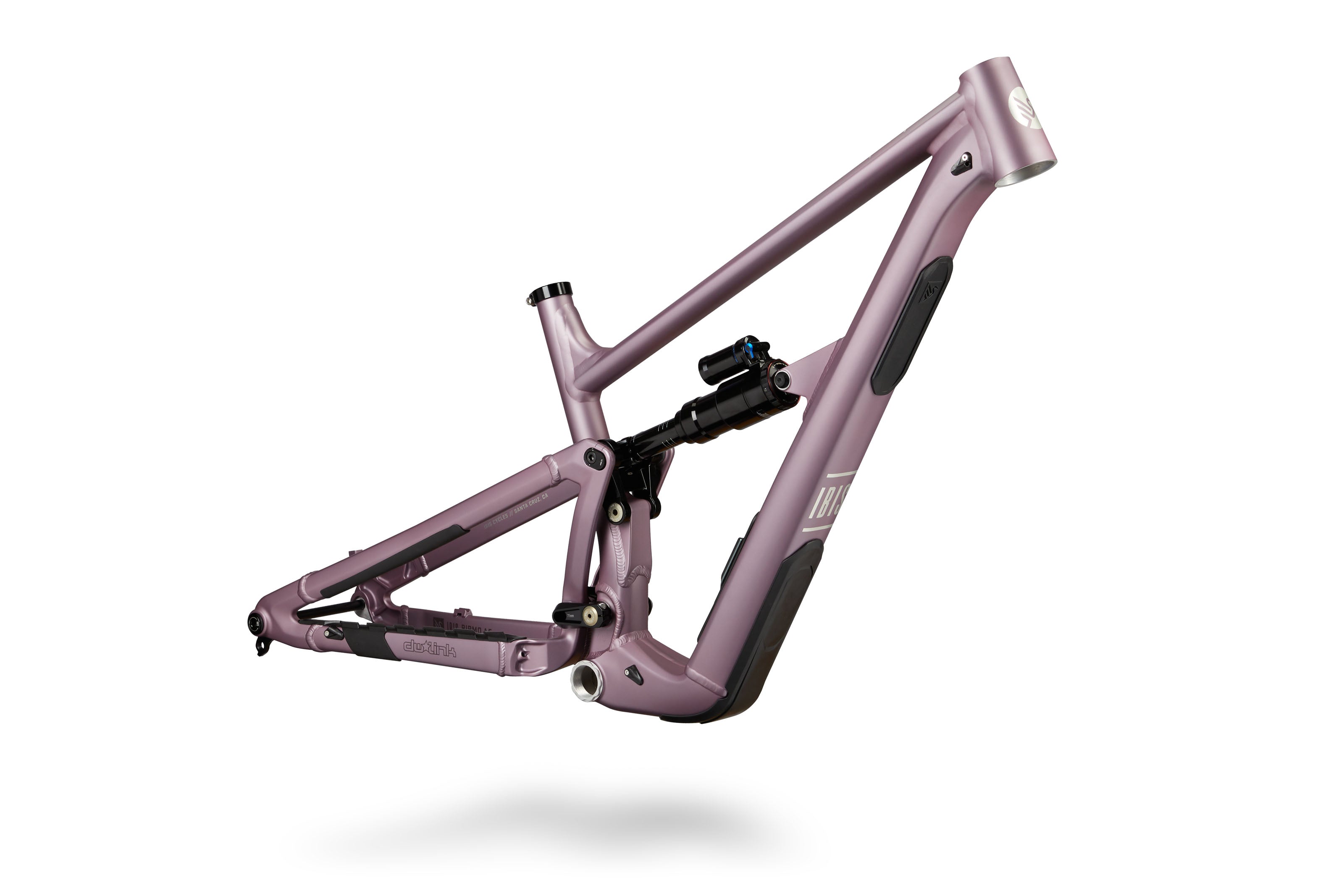

Colors: Metal AF or Rose Dust
Sizes: Small (S), Medium (M), Extra Medium (XM), Large (L), Extra Large (XL)
Warranty: Lifetime frame warranty
Bushings Warranty: Lifetime replacement on bushings
Build Specs
Build Specs
Fork: RockShox Lyrik, 15QRx110, 160mm
Shock: RockShox Super Deluxe Select, 230mm x 60mm
Wheels: Blackbird Send Alloy (Send I front, Send II rear)
S–M: Front Send I 29", Rear Send II 27.5"
XM–XL: Front Send I 29", Rear Send II 29"
Front Tire: Maxxis Assegai 29 x 2.5 EXO+
Rear Tire: Maxxis DHR II EXO+
S–M: 27.5" x 2.5"
XM–XL: 29" x 2.5"
Brakes: Shimano Deore M6120, 4-Piston
Rotors (F/R): Shimano RT-66 6-Bolt, 200mm Front / 200mm Rear
Crankset: Shimano Deore M6120, 24mm spindle
Bottom Bracket: Shimano MT501
Rear Derailleur: Shimano Deore M6100 SGS
Shifter: Shimano Deore M6100
Cassette: Shimano Deore M6100, 10–51T
Chain: KMC X12
Headset: Cane Creek 50, ZS44/ZS56
Grips: Lizard Skins Strata Single Clamp
Handlebar: Ibis Aluminum, 780mm
Stem: Ibis 31.8mm
S–M: 40mm
L–XL: 50mm
Seatpost: KS Vantage Dropper, 34.9mm
S: 110–140mm
M–XM: 140–170mm
L–XL: 180–210mm
Saddle: WTB Silverado Fusion CrMo 142
RIPMO AF
Built to Rip.
150mm
REAR TRAVEL
160mm
FRONT TRAVEL
29" / MX
SIZE SPECIFIC WHEELSIZE
DW LINK
SUSPENSION
PROGRESSIVE GEOMETRY
Enhanced bike handling capabilities over rough and steep terrain.
64.5° Head Tube Angle | 76.5-77.5° Seat Tube Angle | 432–440mm Chainstays
160mm Fork (575mm axle to crown)
-
| Measurement | SM | MD | XM | LG | XL |
|---|---|---|---|---|---|
| ASeat Tube | 395 | 400 | 415 | 457 | 477 |
| BTop Tube | 578 | 605 | 630 | 655 | 685 |
| CHead Tube | 85 | 95 | 110 | 125 | 140 |
| DChainstay 29" | 435 | 435 | 436 | 438 | 440 |
| DChainstay MX | 432 | 432 | 433 | 435 | 437 |
| ESeat Tube Angle | 77° | 76.5° | 76.5° | 77° | 77.5° |
| FSaddle Height | 650 | 700 | 745 | 790 | 830 |
| GHead Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| HWheelbase | 1195 | 1219 | 1249 | 1286 | 1329 |
| IStack | 616 | 622 | 633 | 643 | 654 |
| JReach | 436 | 456 | 478 | 506 | 540 |
| KBB Drop 29" | 36 | 33 | 30 | 27 | 24 |
| BB Height* | 338 | 341 | 344 | 349 | 350 |
| LStandover | 693 | 734 | 757 | 772 | 784 |
| Recommended Seatpost Drop |
140 | 170 | 185 | 213 | 213 |
| Crank Length | 165 | 165 | 170 | 170 | 170 |
| Tire Size | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" |
| Water Bottle | 1 x 22oz | 1 x 26oz | 1 x 26oz | 1 x 26oz | 1 x 26oz |
