IBIS RIPMO AF | Frame Only
$4,600.00
/
Couldn't load pickup availability
IBIS RIPMO AF FRAME ONLY
SPECS
01
FRAME KIT
Frame Kit
Ripmo AF V2 Frame w/ RockShox Super Deluxe Select Shock
Frame
Ripmo AF V2
Material
Aluminum
Shock
RockShox Super Deluxe Select
Shock Size
230 × 60mm
Wheel Setup
29" / MX via Flip Chip
02
FRAME
Frame
Ripmo AF V2
Material
Aluminum
Wheel Size
29" / MX — Adjustable via Flip Chip
Standard Wheel Setup
S–M: MX / XM–XL: 29"
Rear Wheel Compatibility
29" or 27.5"
Rear Axle
Boost 148mm
Front Axle
Boost 110mm
Seatpost Diameter
34.9mm
Bottom Bracket
73mm BSA Threaded
Rear Brake Mount
180mm Post Mount
Maximum Rear Rotor
220mm
Chainstay Length
29": 435–440mm / MX: 432–437mm
Derailleur Hanger
SRAM UDH
Headset
ZS44 Upper / ZS56 Lower
Tire Clearance
Most 29 × 2.5" and 27.5 × 2.5" Tires
Frame Storage
Large Internal Ibis STOW Frame Storage
Storage Bag
Ibis STOW Bag
Bottle Clearance
26oz Bottle Fits All Sizes
Colors
Metal AF / Rose Dust
Sizes
S / M / XM / L / XL
Frame Warranty
Lifetime
Bushings
Lifetime Replacement
03
SUSPENSION
REAR
150
MM
FRONT
160
MM
PLATFORM
DW
LINK
WHEELS
29
MX OPTION
Rear Travel
150mm
Suspension Platform
DW-Link
Included Shock
RockShox Super Deluxe Select
Shock Size
230 × 60mm
Coil Shock
Compatible — 230 × 60mm
Recommended Fork
160mm
Compatible Fork Travel
150–170mm
160mm Axle-to-Crown
575mm
The Ripmo AF V2 is designed around a 160mm fork and is compatible with 150–170mm fork travel. The frame is supplied with a RockShox Super Deluxe Select 230 × 60mm rear shock and is also compatible with correctly sized coil shocks.
04
DRIVETRAIN COMPATIBILITY
Chainline
55mm
Round Chainring
28T Minimum / 34T Maximum
Oval Chainring
Up to 32T Recommended
Bottom Bracket
73mm BSA Threaded
Derailleur Hanger
SRAM UDH
Chain Guide
ISCG 05 Compatible
ISCG 05 Tab Mount
Available Separately
Images may not show actual frame kit content. Pricing and specifications subject to change without notice.

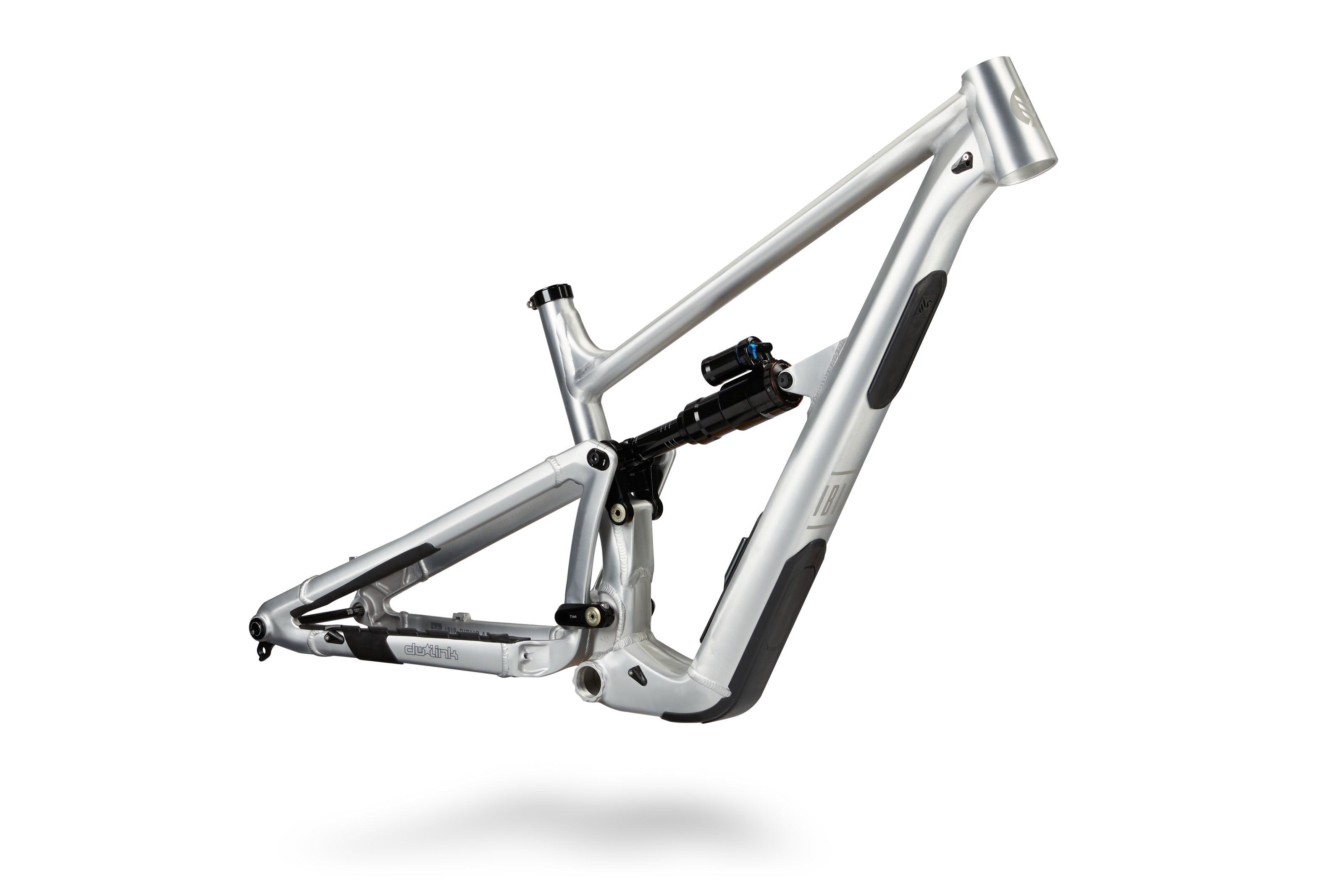

Metal AF

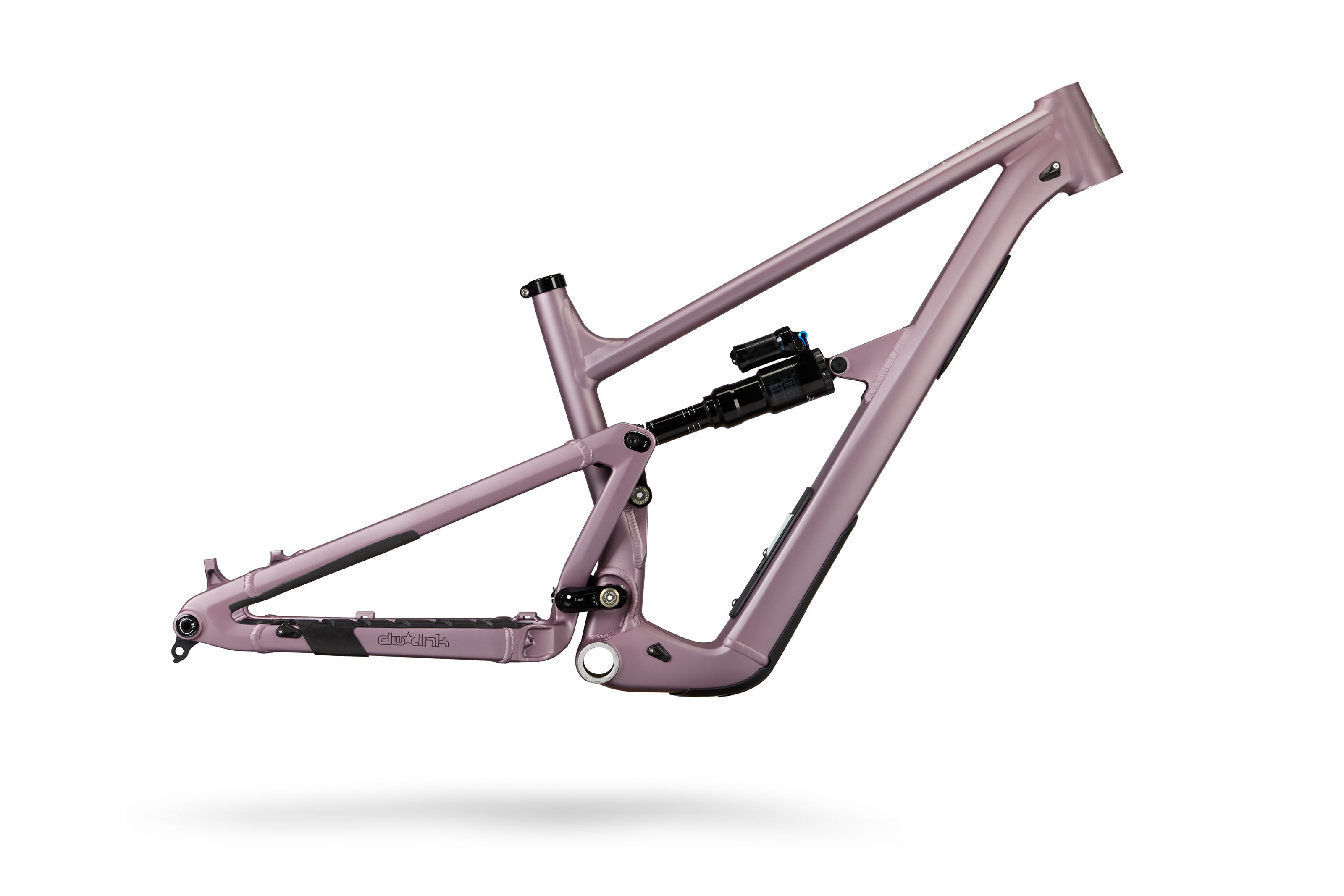

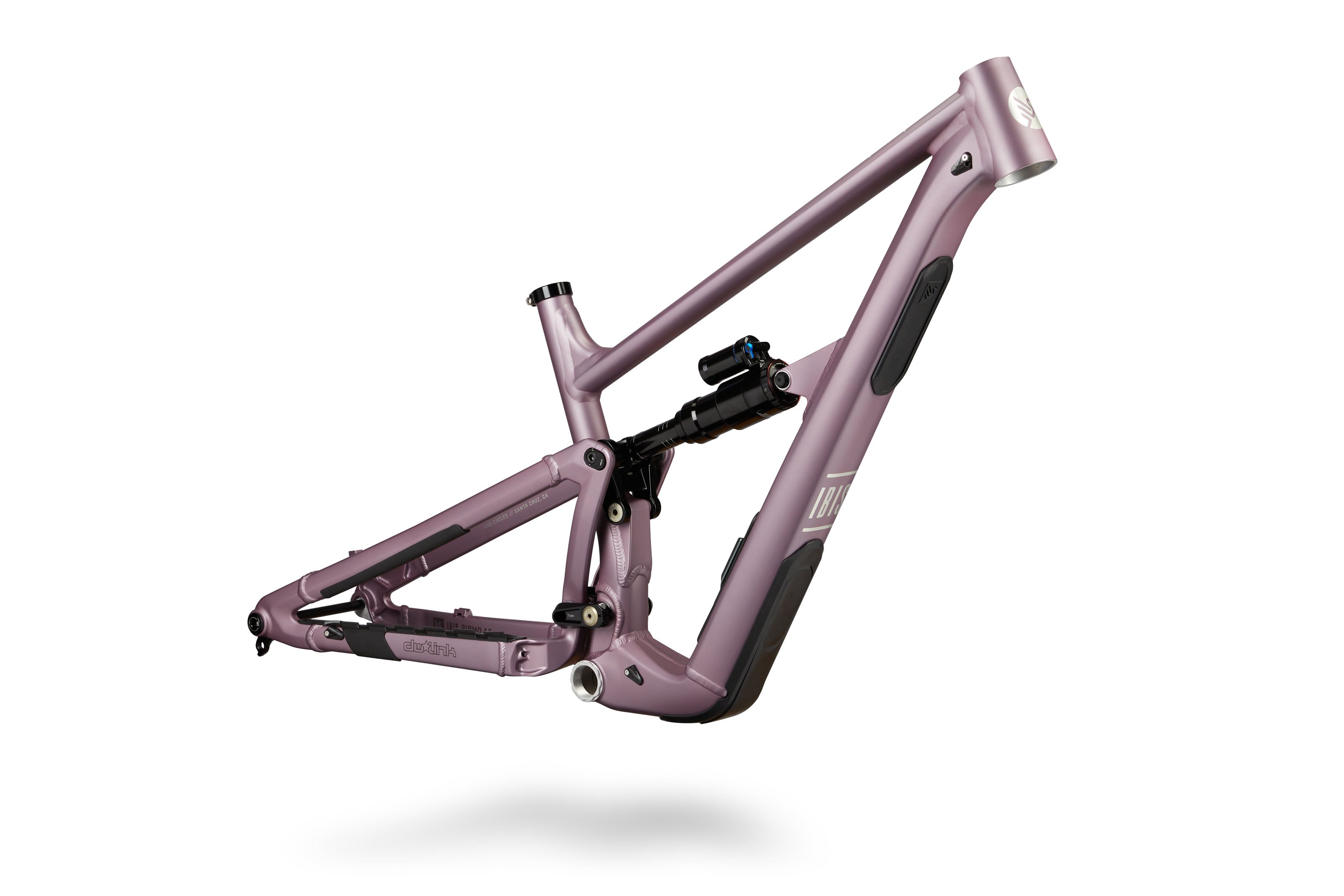

Rose Dust
RIPMO AF
Built to Rip.
150mm
REAR TRAVEL
160mm
FRONT TRAVEL
29" / MX
SIZE SPECIFIC WHEELSIZE
DW LINK
SUSPENSION
PROGRESSIVE GEOMETRY
Enhanced bike handling capabilities over rough and steep terrain.
64.5° Head Tube Angle | 76.5-77.5° Seat Tube Angle | 432–440mm Chainstays
160mm Fork (575mm axle to crown)
-
| Measurement | SM | MD | XM | LG | XL |
|---|---|---|---|---|---|
| ASeat Tube | 395 | 400 | 415 | 457 | 477 |
| BTop Tube | 578 | 605 | 630 | 655 | 685 |
| CHead Tube | 85 | 95 | 110 | 125 | 140 |
| DChainstay 29" | 435 | 435 | 436 | 438 | 440 |
| DChainstay MX | 432 | 432 | 433 | 435 | 437 |
| ESeat Tube Angle | 77° | 76.5° | 76.5° | 77° | 77.5° |
| FSaddle Height | 650 | 700 | 745 | 790 | 830 |
| GHead Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| HWheelbase | 1195 | 1219 | 1249 | 1286 | 1329 |
| IStack | 616 | 622 | 633 | 643 | 654 |
| JReach | 436 | 456 | 478 | 506 | 540 |
| KBB Drop 29" | 36 | 33 | 30 | 27 | 24 |
| BB Height* | 338 | 341 | 344 | 349 | 350 |
| LStandover | 693 | 734 | 757 | 772 | 784 |
| Recommended Seatpost Drop |
140 | 170 | 185 | 213 | 213 |
| Crank Length | 165 | 165 | 170 | 170 | 170 |
| Tire Size | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" |
| Water Bottle | 1 x 22oz | 1 x 26oz | 1 x 26oz | 1 x 26oz | 1 x 26oz |
