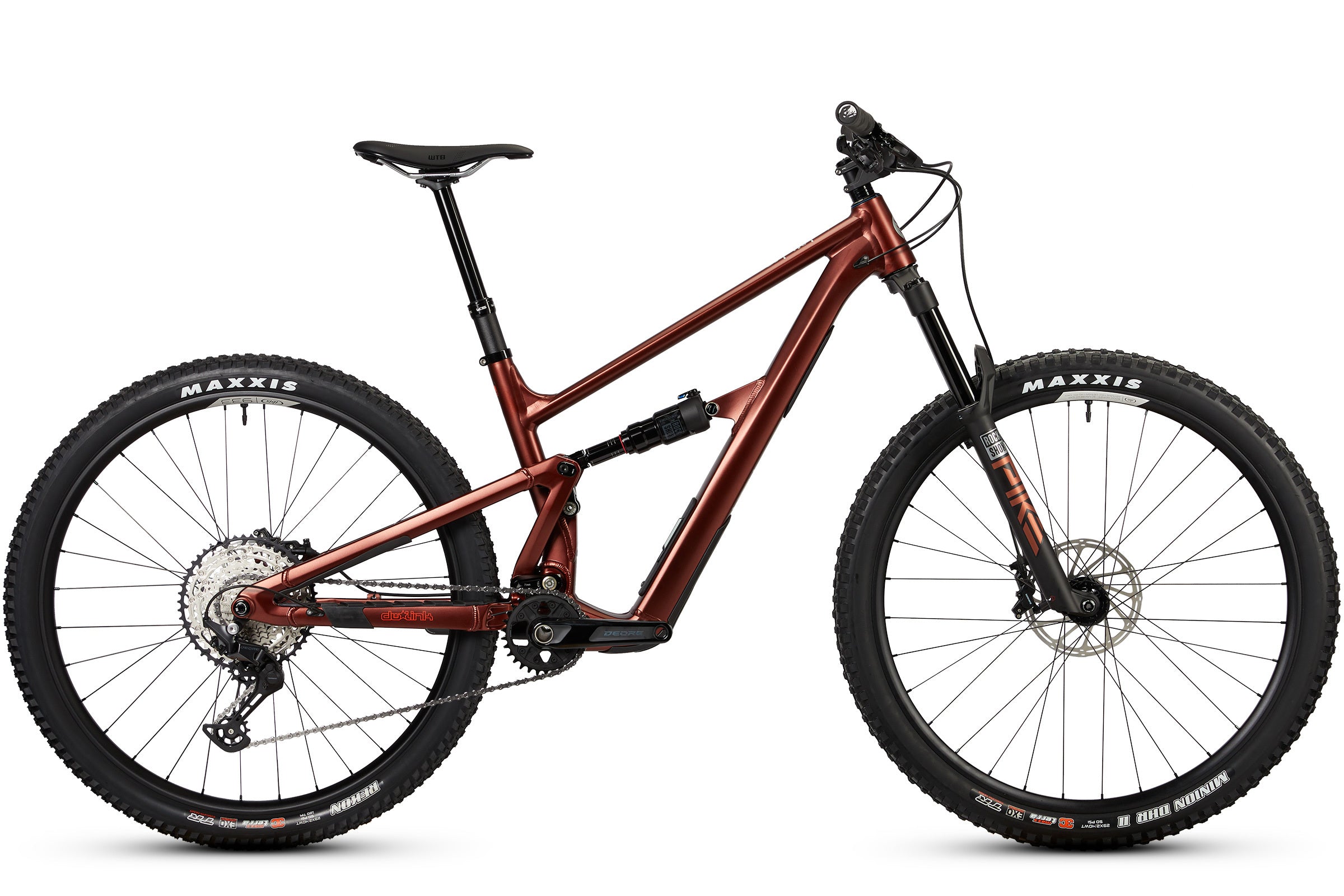

IBIS RIPLEY AF | DEORE
/
Couldn't load pickup availability
SPECS
Build Specs
Build Specs
Fork: RockShox Pike, 15QRx110, 140mm
Shock: RockShox Deluxe Select 210mm x 52.5mm
Wheels: Ibis 933 Aluminum Rims, Blackbird Hubs
Front Tire: Maxxis DHR2, 29" x 2.4", Exo, TR - OR - Maxxis Forekaster, 29" x 2.4", Exo, TR
Rear Tire: Maxxis Rekon, 29" x 2.4", Exo, TR
Brakes: Shimano Deore, M6120, 4-Piston
Rotors (F/R): Shimano SM-RT66, 180F/180R
Crankset: Shimano Deore M6120 24mm spindle
Bottom Bracket: Shimano MT501
Rear Derailleur: Shimano Deore M6100 SGS
Shifter: Shimano Deore M6100 Bland Clamp
Cassette: Shimano Deore, M6100, 10-51T
Chain: KMC X12
Headset: Cane Creek 50: ZS44/ZS56
Grips: Lizard Skins Strata Single Clamp
Handlebar: Ibis Aluminum, 780mm
Stem: Ibis 31.8mm
S–M: 40mm, L–XL: 50mm
Seatpost: KS Vantage Dropper, 34.9mm
S: 110-140mm, M-XM: 140-170mm, L-XL: 180-210mm
Saddle: WTB Silverado Fusion CrMo 142
Frame
Frame
Version: V2
Frame Material: Aluminum
Wheel Size: 29” (MX optional via Flip Chip)
Suspension
Suspension
Front Travel: 140mm
Rear Travel: 130mm
Shock Specs: 210mm x 52.5mm
Drivetrain Compatibility & Geometry
Drivetrain Compatibility & Geometry
Boost Axles: 148mm rear / 110mm front
Seatpost Diameter: 34.9mm
Rear Brake: 180mm Post mount / 220mm max rotor
Chainstay Length: 433–438mm
Bottom Bracket: Threaded BB (73mm BSA)
Chainline: 55mm chainline
Derailleur Hanger: SRAM UDH
ISCG 05 Compatible: ISCG 05 Tab Mount available separately
Headset: ZS44 upper / ZS56 lower
Bottle Mounts: 22oz bottle on size small, 26oz on all other sizes
Features
Features
Bottle Mounts: 26oz bottles fit inside the front triangle on all sizes
Frame Storage: Large Internal frame storage with easy access door
Frame Storage Bag: Ibis Stow bag

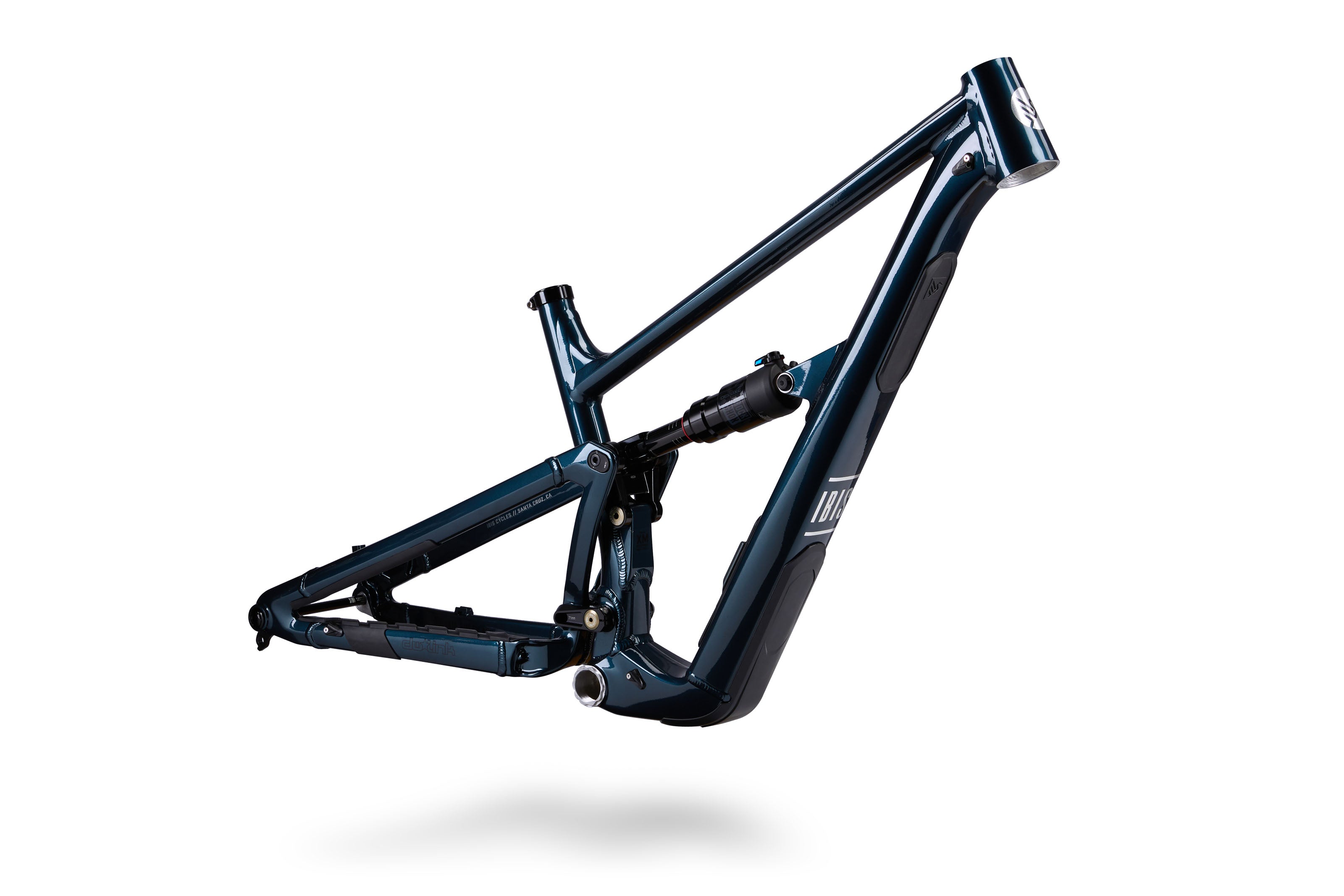

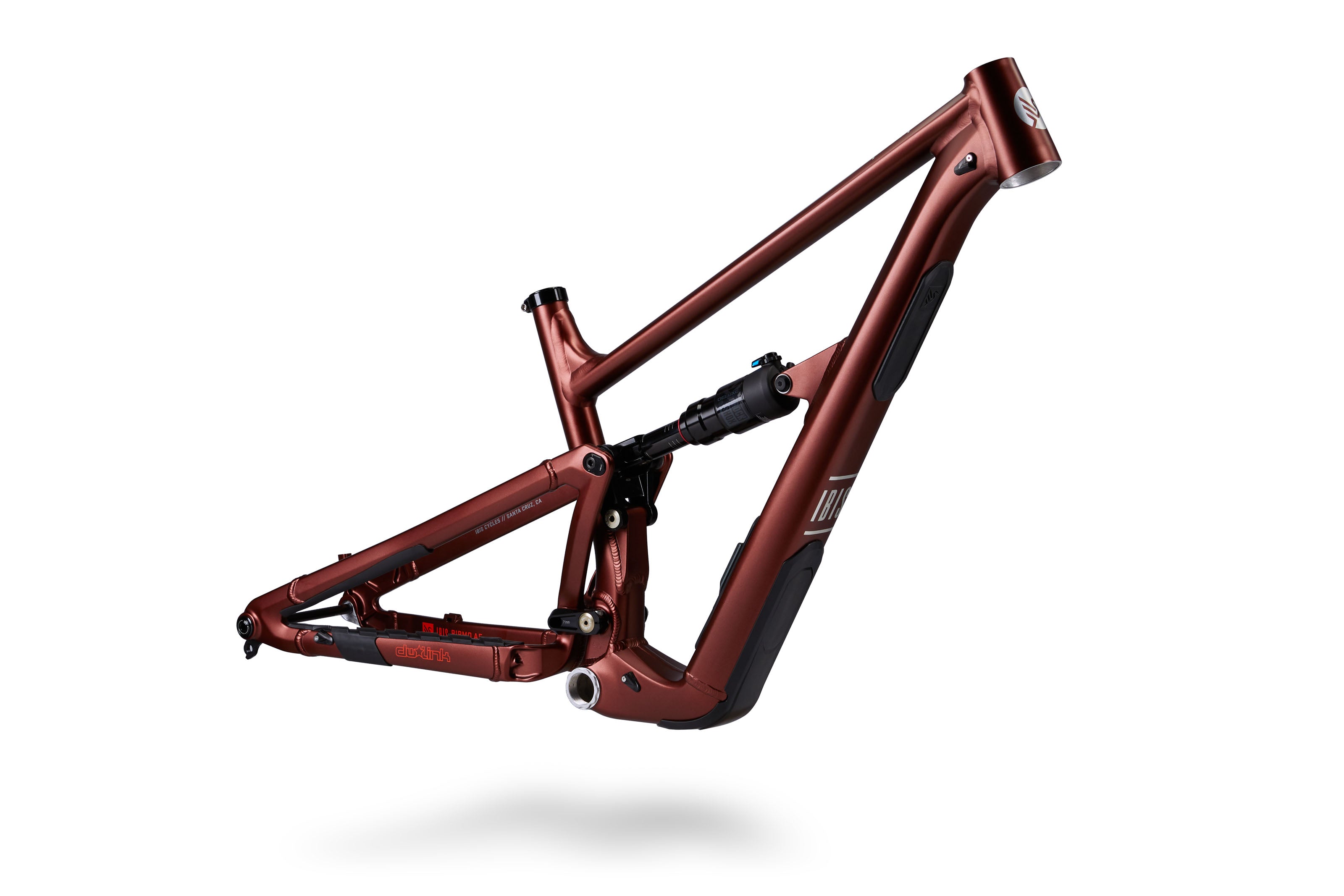

Colors: Burnt Orange or Blue Velvet
Sizes: Small (S), Medium (M), Extra medium (XM), Large (L) and Extra Large (XL)
Warranty: Lifetime frame warranty
Bushings Warranty: Lifetime replacement on bushings
RIPLEY AF
It’s Fast. It's Fun. It's Unapologetically Metal… AF.
130mm
REAR TRAVEL
140mm
FRONT TRAVEL
29"
WHEELS • MX OPTIONAL VIA FLIP CHIP
DW LINK
SUSPENSION
Ripley AF Geometry
Ultra low standovers give you the ability to size your frame based on horizontal fit without worrying about vertical clearances.
64.9° Head Tube Angle | 76.9–77.9° Seat Tube Angle | 436–442mm Chainstays
140mm Fork (555mm axle to crown)
-
| Measurement | SM | MD | XM | LG | XL |
|---|---|---|---|---|---|
| ASeat Tube | 395 | 400 | 415 | 457 | 477 |
| BTop Tube | 577 | 604 | 629 | 654 | 684 |
| CHead Tube | 85 | 95 | 110 | 125 | 140 |
| DChainstay 29" | 436 | 436 | 437 | 440 | 442 |
| ESeat Tube Angle | 77.4° | 76.9° | 76.9° | 77.4° | 77.9° |
|
FSaddle Height for Seat Tube Angle |
650 | 700 | 745 | 790 | 830 |
| GHead Tube Angle | 64.9° | 64.9° | 64.9° | 64.9° | 64.9° |
| HWheelbase | 1187 | 1211 | 1241 | 1279 | 1321 |
| IStack | 613 | 619 | 629 | 640 | 650 |
| JReach | 440 | 460 | 483 | 511 | 545 |
| BB Height* | 326 | 329 | 332 | 335 | 338 |
| KBB Drop | 48 | 45 | 42 | 39 | 36 |
| LStandover | 680 | 721 | 744 | 759 | 772 |
| Recommended Seatpost Drop |
140 | 170 | 185 | 213 | 213 |
| Crank Length | 165 | 165 | 170 | 170 | 170 |
| Tire Size | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" |
| Water Bottle Size | 1 x 22oz | 1 x 26oz | 1 x 26oz | 1 x 26oz | 1 x 26oz |
