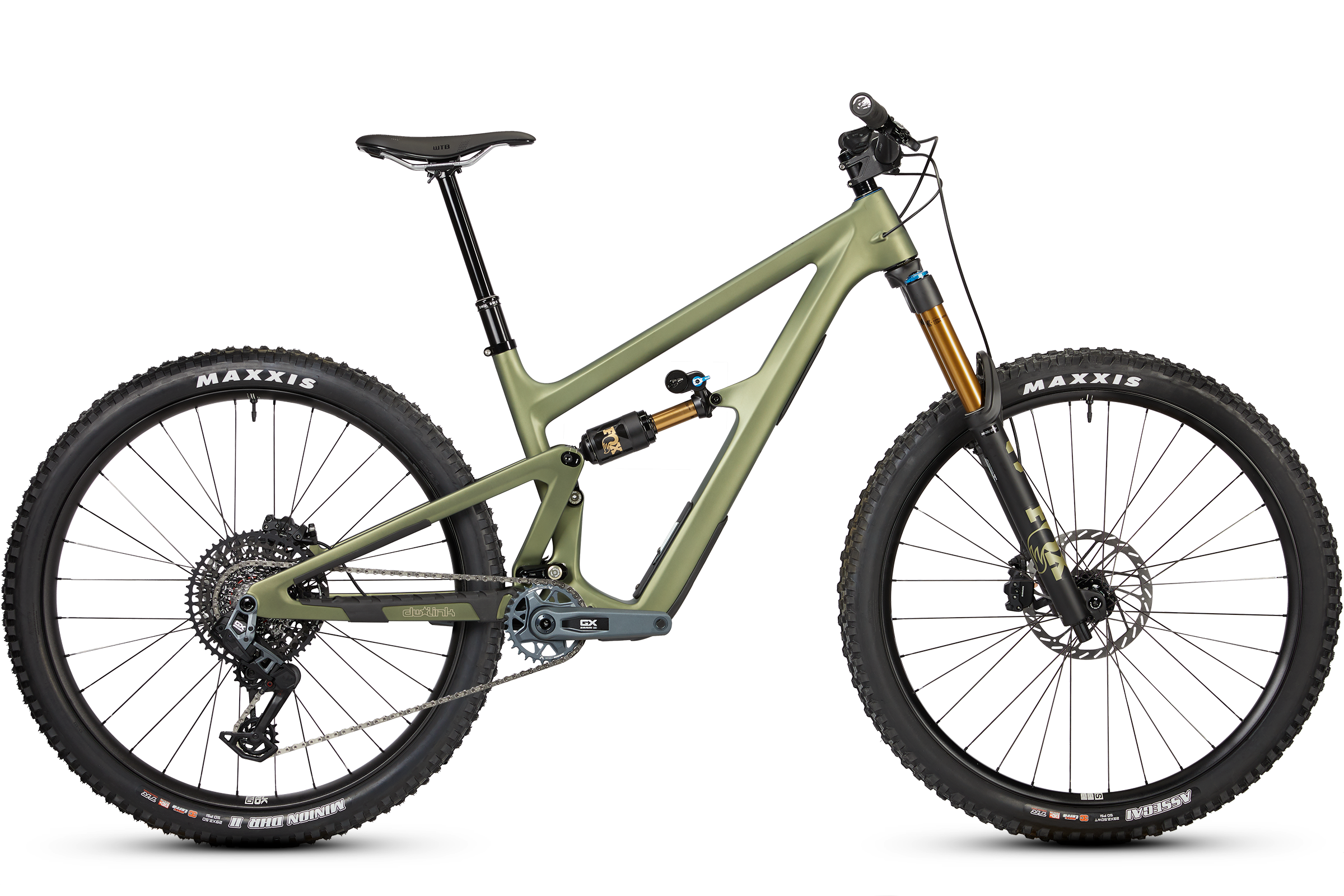

IBIS RIPMO | GX AXS

Fork: Fox Float 36, Factory Series, Grip X2, 160mm, 29”, 110mm x 15mm

Shock: Fox Float X2 Factory Series with EVOL, 230mm x 60mm

Wheels: Blackbird Send Alloy, 32H, Blackbird Hubs

Front Tire: Maxxis Assegai 29x2.5 EXO+

Rear Tire: Maxxis DHR2, EXO+

S–M: 27.5" x 2.5", XM–XL: 29" x 2.5"

Brakes: SRAM Maven

Rotors (F/R): SRAM HS2, 6-Bolt, F: 200 / R: 200

Crankset: SRAM GX Eagle Transmission, DUB Wide

S–M: 165mm, XM–XL: 170mm

Bottom Bracket: SRAM DUB BSA

Rear Derailleur: SRAM GX Eagle Transmission

Shifter: SRAM GX Eagle Transmission

Cassette: SRAM XS 1275 Transmission, T-Type, 10-52T

Chain: SRAM GX Eagle Transmission, T-Type

Headset: Cane Creek 40 ZS44/ZS56

Grips: Lizard Skins Strata Single Clamp

Handlebar: Blackbird 35 Carbon Riser Bar 800mm

Stem: Blackbird 35 Stem

S–M: 35mm, XM–XL: 50mm

Seatpost: BikeYoke Revive Max, 34.9mm

S: 125mm, M: 160mm, XM: 185mm, L–XL: 213mm

Saddle: WTB Silverado Fusion CrMo 142

Power: SRAM AXS Battery & Power Pack Charger

Version: V3

Frame Material: Carbon front and rear triangle

Frame Weight: 7.6 lbs XM frame w/ Fox Float X

Wheel Size:

Size XM–XL: 29” wheels
Size SM–MD: MX wheels
(MX or 29” option in all sizes via flip chip)

Tire Clearance: 2.5"

Front Travel: 160mm

Rear Travel: 150mm

Shock Specs: 230mm x 60mm (coil shock compatible)

Boost Axles: 148mm rear / 110mm front

Seatpost Diameter: 34.9mm

Rear Brake: 180mm Post mount / 220mm max rotor

Chainstay Length: 29": 435–440mm, MX: 432–437mm

Bottom Bracket: Threaded BB (73mm BSA)

Chainline: 55mm chainline

Derailleur Hanger: SRAM UDH

ISCG 05 Compatible: ISCG 05 Tab Mount available separately

Headset: ZS44 upper / ZS56 lower

Bottle Mounts: 22oz bottle on size small, 26oz on all other sizes

Frame Storage: Large internal frame storage with easy access door

Frame Storage Bag: Sustainably sourced internal frame bags produced in partnership with Cotopaxi

Colors: Heckleberry Purple or Olive Swamp Monster

Sizes: Small (S), Medium (M), Extra Medium (XM), Large (L), Extra Large (XL)

Frame & Wheels Warranty: Lifetime warranty

Bushings Warranty: Lifetime replacement on bushings
