150mm

REAR TRAVEL

160mm

FRONT TRAVEL

29" / MX

SIZE SPECIFIC WHEELSIZE

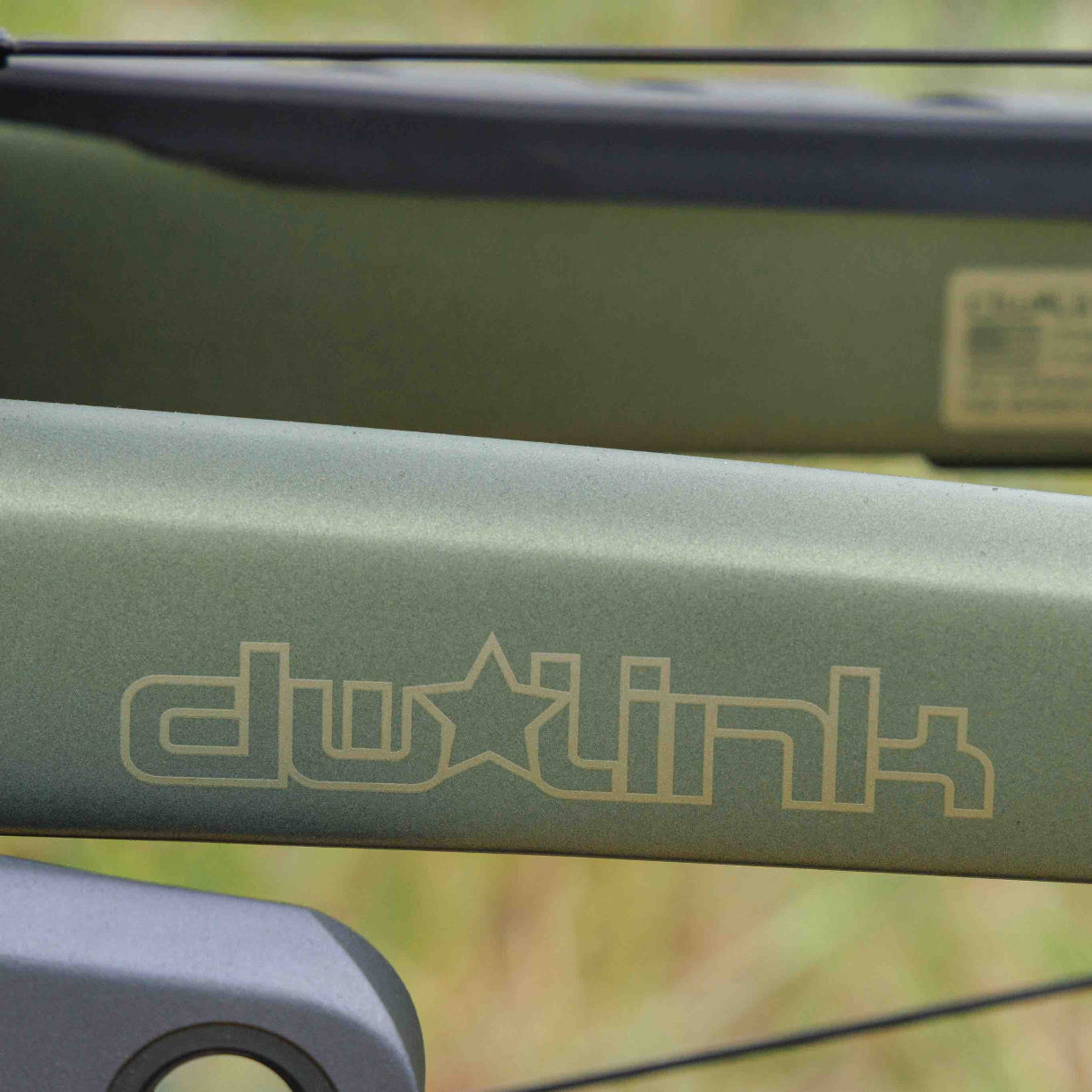

DW LINK

SUSPENSION

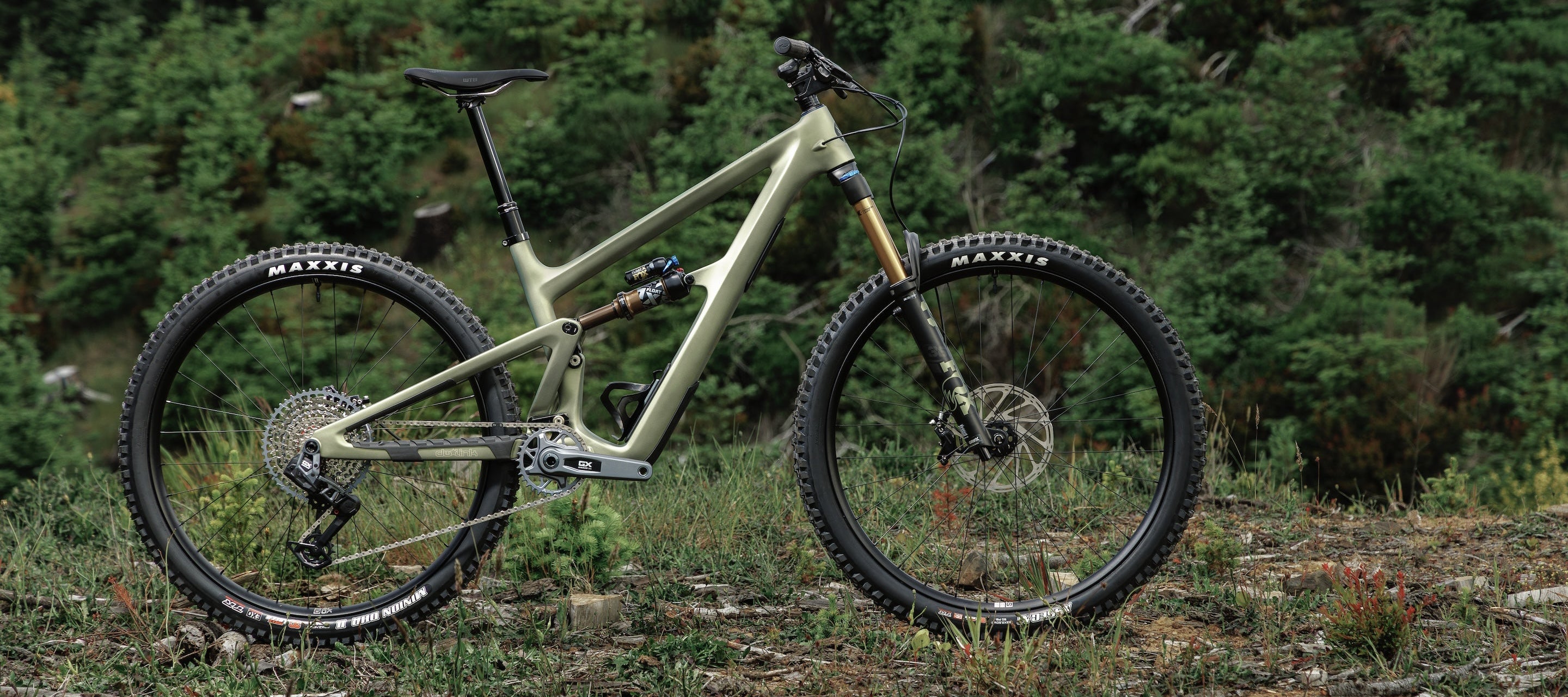

RIPMO

The Ripmo isn’t just another bike, it’s a proven legend.

With multiple “Best in Test” awards and a strong track record in the notoriously demanding Enduro World Series, it stands out as a true trail dominating machine. So what could make it even better?

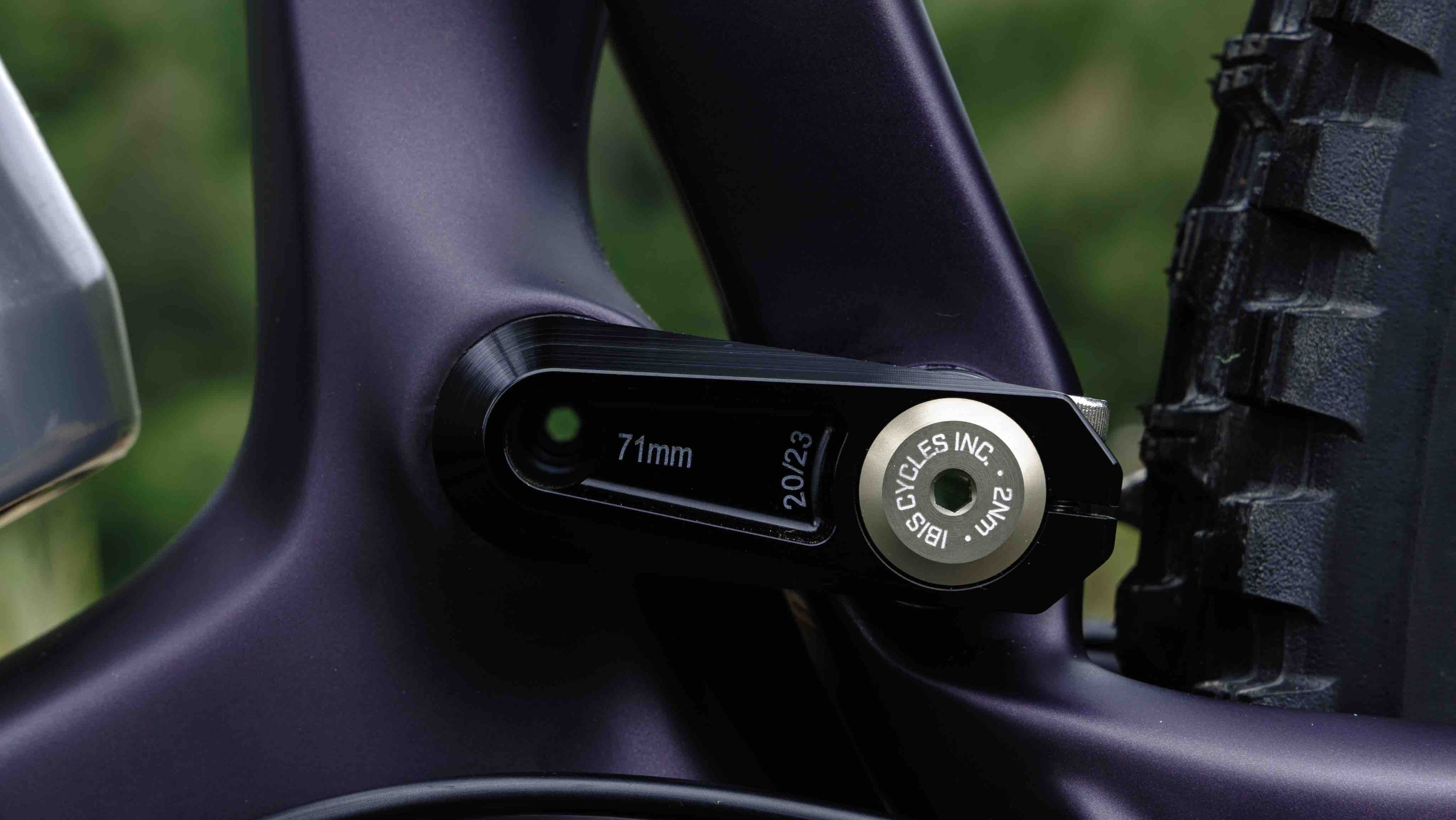

The latest Ripmo raises the bar with a host of new features, including internal downtube storage, a flip chip for mixed wheel setups, a slacker head angle, and enhanced coil shock compatibility. It also introduces expanded sizing options and refined, size specific details, down to the bottom bracket height, delivering a more dialed ride for every rider.

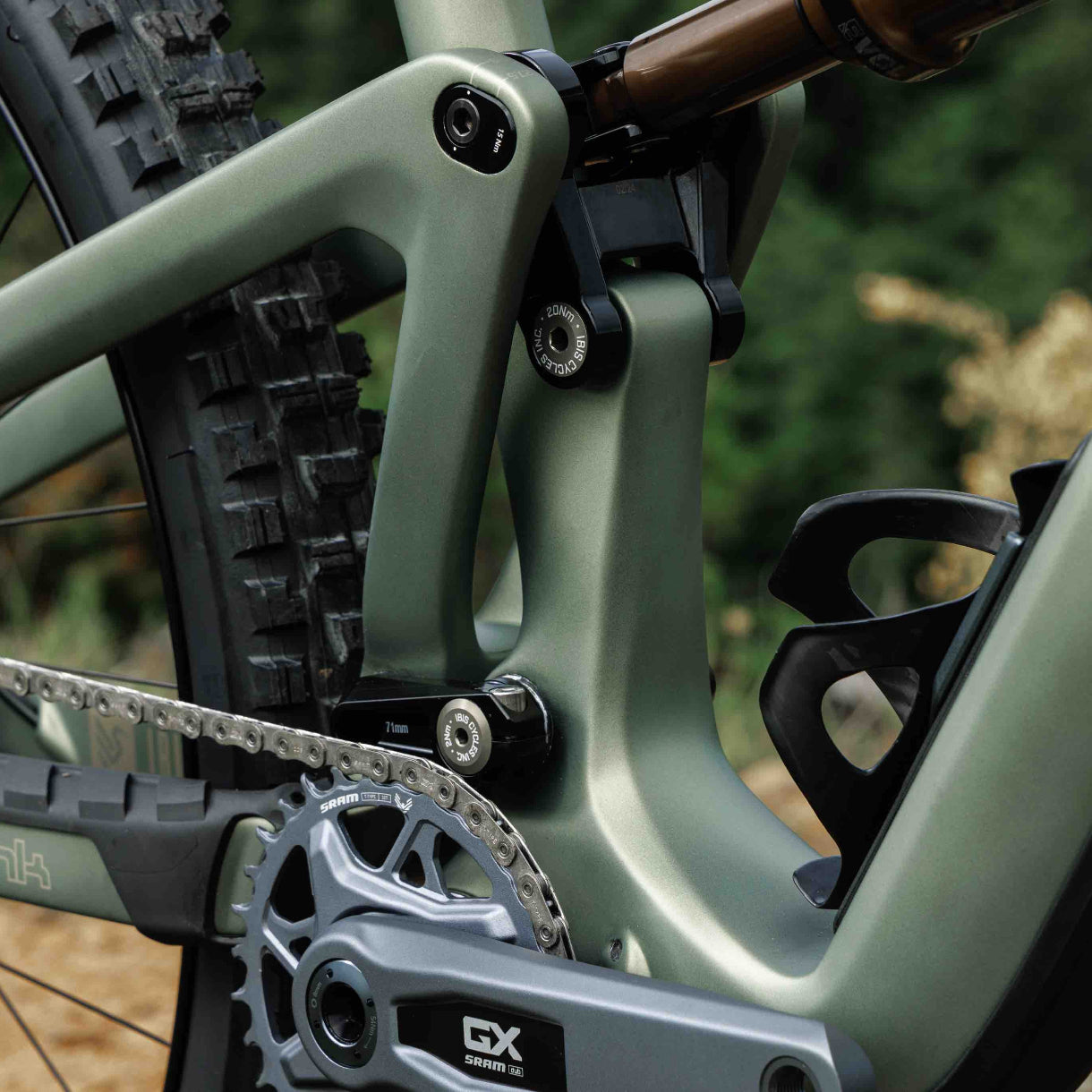

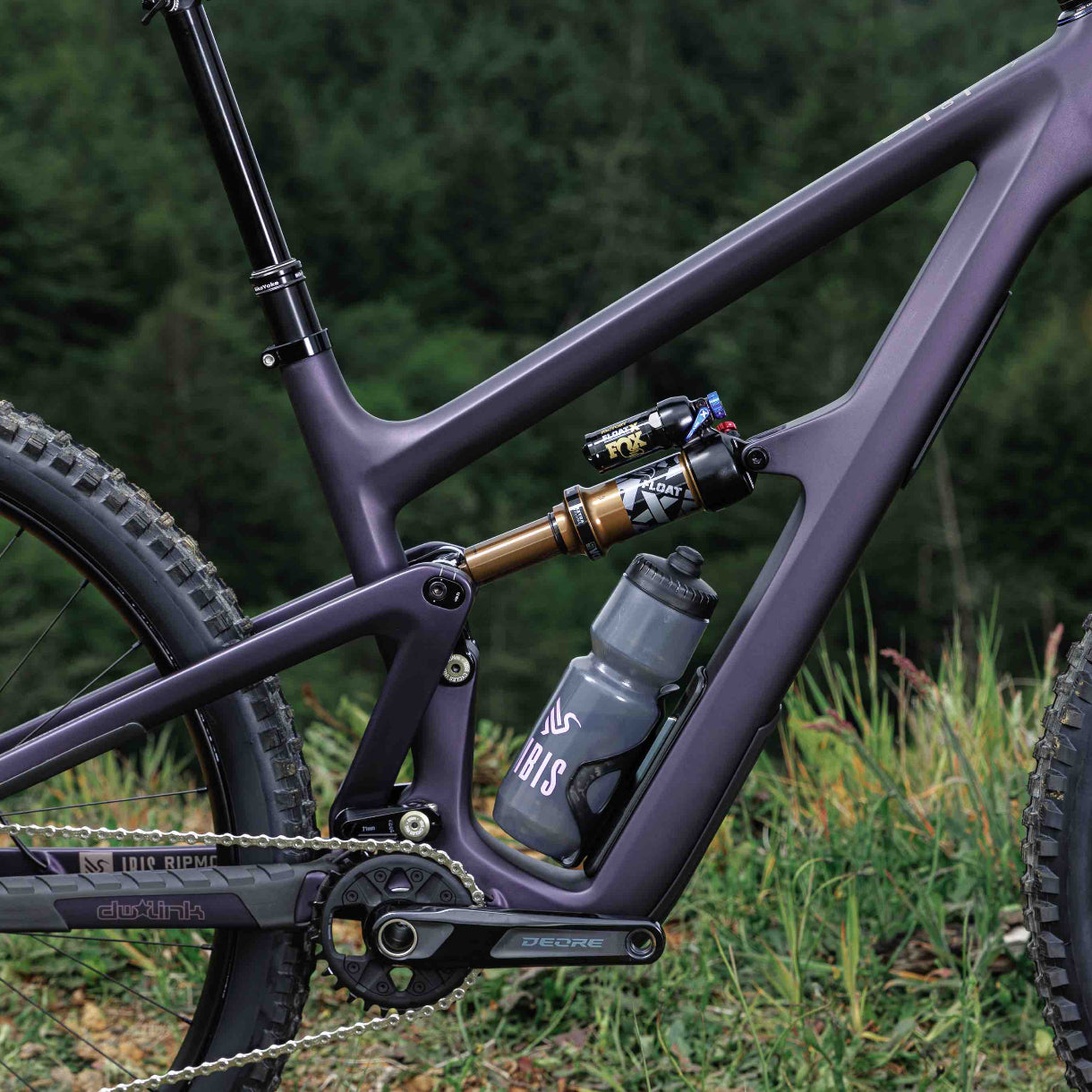

Feature list image
Feature list image
Feature list image
Feature list image
Feature list image

What makes a RIPMO a RIPMO.

WHEEL SET

Deore, 90, GX AXS, and XT Di2: Blackbird Send Alloy 29" wheels. Upgrade to carbon at checkout.

XTR Di2: Ibis S35 Carbon 29" with i9 Hydra CL hubs.

Person riding a mountain bike through a forest Person riding a mountain bike through a forest

LIFETIME WARRANTY

If it's our fault, we'll fix it. Simple as that.

Two black pouches with colorful zippers on a wooden surface with a blurred autumn background. Two black pouches with colorful zippers on a wooden surface with a blurred autumn background.

COTOPAXI x IBIS

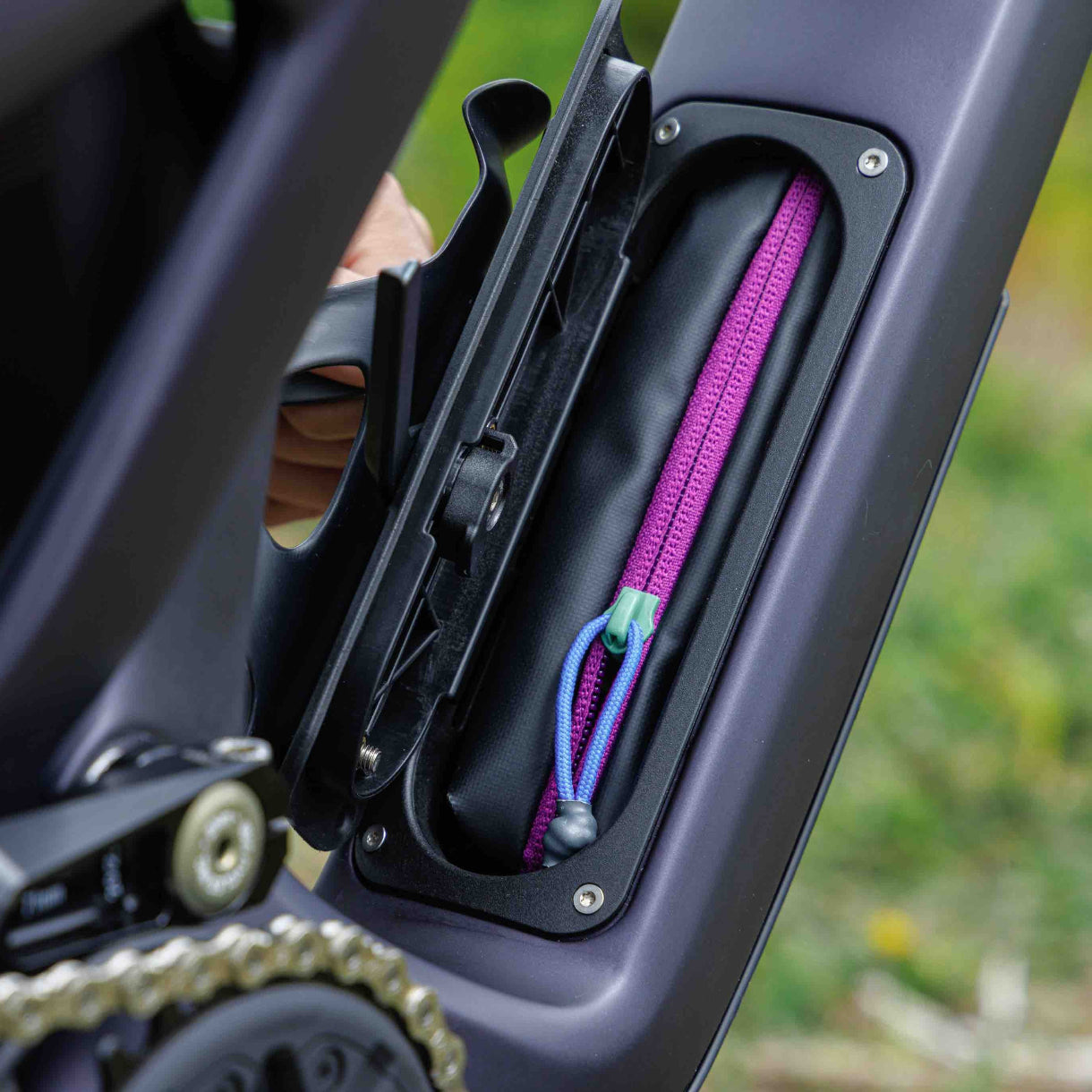

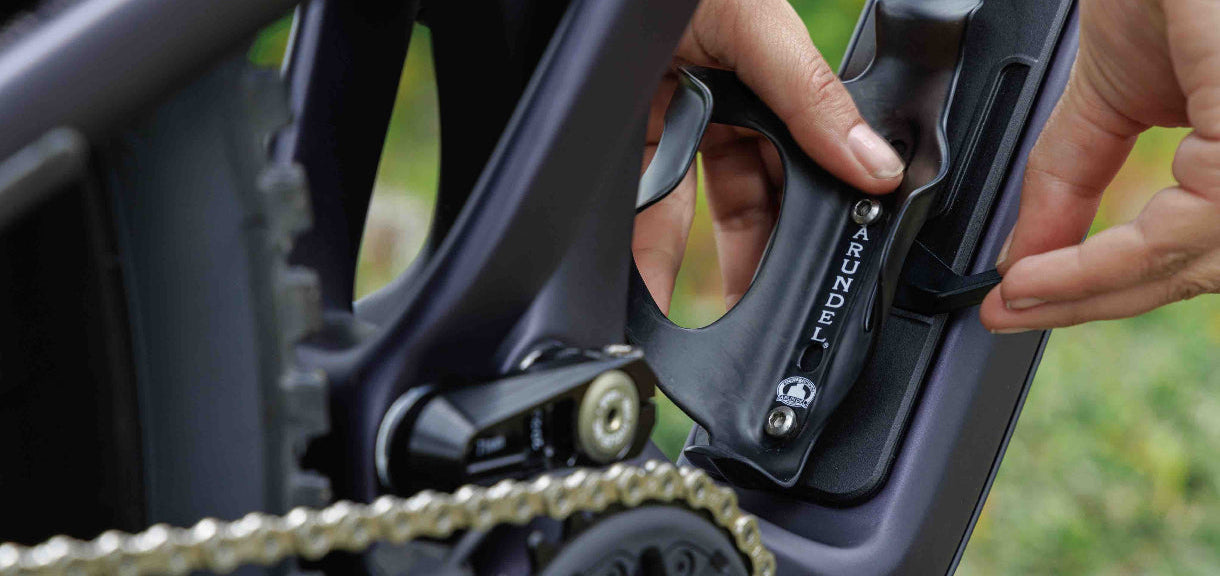

Get the gear off your body and into your frame with our new in frame stor­age sys­tem. STOW (snacks, tools, or what­ev­er) fits two bags inside your bike frame for a clean look that’s rat­tle free and easy access.

Person riding a mountain bike on a dirt path in a forest Person riding a mountain bike on a dirt path in a forest

PROGRESSIVE GEOMETRY

Enhanced bike handling capabilities over rough and steep terrain.

EWS Pro Greg Callaghan Rides the New Ripmo V3!


PROGRESSIVE GEOMETRY

Enhanced bike handling capabilities over rough and steep terrain.

160mm Fork (575mm axle to crown)

64.5° Head Tube Angle

76.5-77.5° Seat Tube Angle

432–440mm Chainstays

Measurement SM MD XM LG XL
ASeat Tube 395 400 415 457 477
BTop Tube 578 605 630 655 685
CHead Tube 85 95 110 125 140
DChainstay 29" 435 435 436 438 440
DChainstay MX 432 432 433 435 437
ESeat Tube Angle 77° 76.5° 76.5° 77° 77.5°
FSaddle Height 650 700 745 790 830
GHead Tube Angle 64.5° 64.5° 64.5° 64.5° 64.5°
HWheelbase 1195 1219 1249 1286 1329
IStack 616 622 633 643 654
JReach 436 456 478 506 540
KBB Drop 29" 36 33 30 27 24
BB Height* 338 341 344 349 350
LStandover 693 734 757 772 784
Recommended
Seatpost Drop
140 170 185 213 213
Crank Length 165 165 170 170 170
Tire Size 2.35-2.5" 2.35-2.5" 2.35-2.5" 2.35-2.5" 2.35-2.5"
Water Bottle 1 x 22oz 1 x 26oz 1 x 26oz 1 x 26oz 1 x 26oz

Sizing Guide (Rider Height)

S
152–168 cm
M
165–175 cm
XM
173–183 cm
L
180–191 cm
XL
188–201 cm

Setup & Dropper Insert

Setup

Suspension Setup Guides

Use the correct guide for the suspension fitted to your Ripmo. These setup guides give starting points for sag, air pressure, damping and volume spacers.

Sag

Starting Setup

Fork sag 18–25% of 160mm travel
Fork sag range 28.8mm–40mm
Shock sag 25–30% of 60mm stroke
Shock sag range 15mm–18mm
Setup mode Set sag in open mode with riding gear on
Seatpost Dropper Insert & Saddle Height +

Maximum Seatpost Insertion

Frame Size SM MD XM LG XL
Max Insertion 300 310 310 320 385

Bike Yoke Revive Saddle Height Range

Measurement from centre BB to centre of saddle rail, in mm.

Drop Range SM MD XM LG XL
Revive v3 125 Min 552 557 572 612 632
Revive v3 125 Max 670 675 690 730 750
Revive v3 160 Min 587 592 607 647 667
Revive v3 160 Max 720 725 740 780 800
Revive v3 185 Min 612 617 632 672 692
Revive v3 185 Max 740 745 760 800 820
Revive v3 213 Min 656 651 666 700 720
Revive v3 213 Max 805 810 825 865 885

KS Vantage Saddle Height Range

Measurement from centre BB to centre of saddle rail, in mm.

Drop Range SM MD XM LG XL
140 Min 581 586 601 641 661
140 Max 699 704 719 759 779
170 Min 633 628 643 671 691
170 Max 749 754 769 809 829
210 Min 713 708 723 711 731
210 Max 819 824 839 879 899
