HAKKA MX

The Hakka MX is our answer to the Swiss Army Knife.

HAKKA MX Features

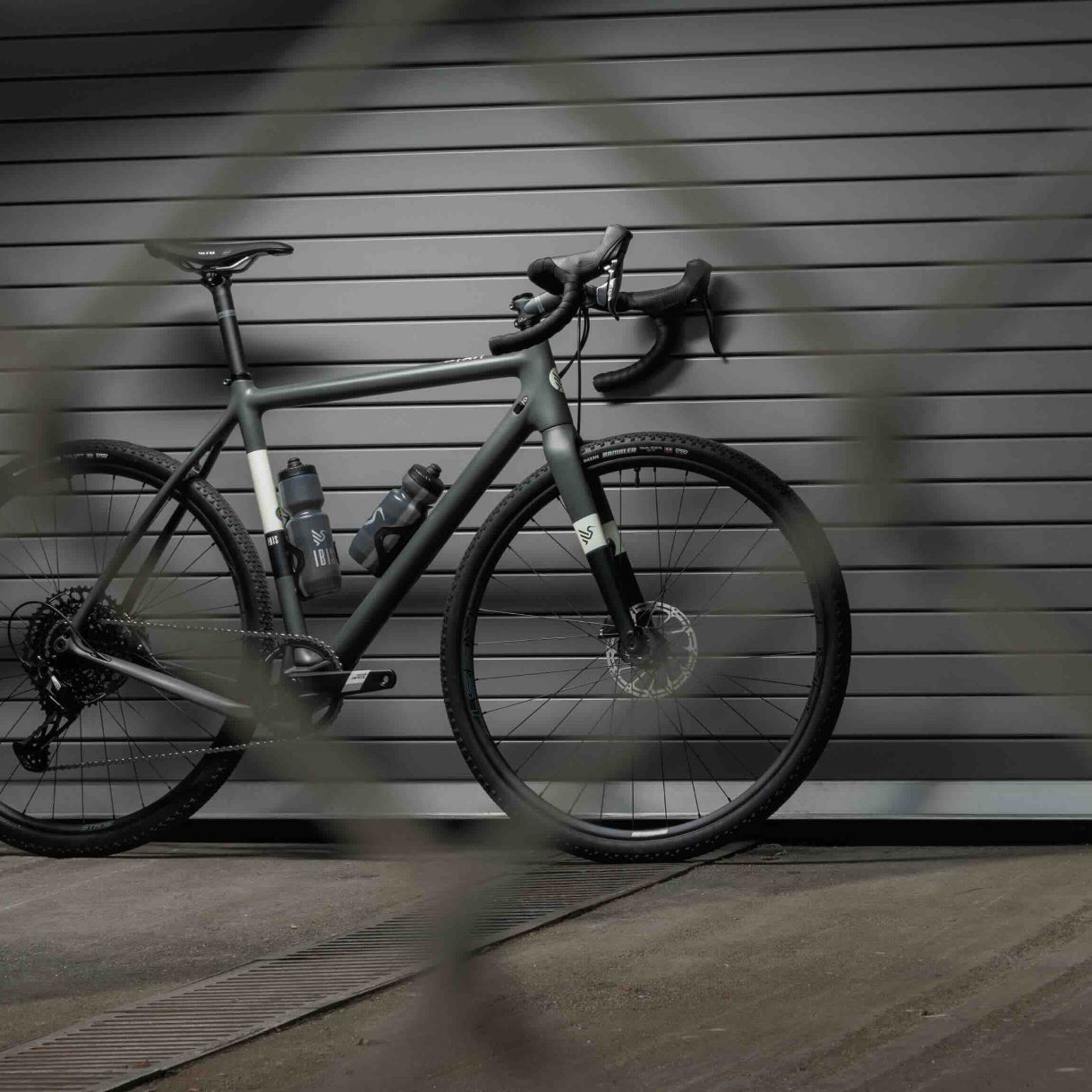

Lightweight

With its ultra versatile geometry and 1000g frame weight, the Hakka MX is just as happy crushing the local club ride as it is jumping barriers or camping out.

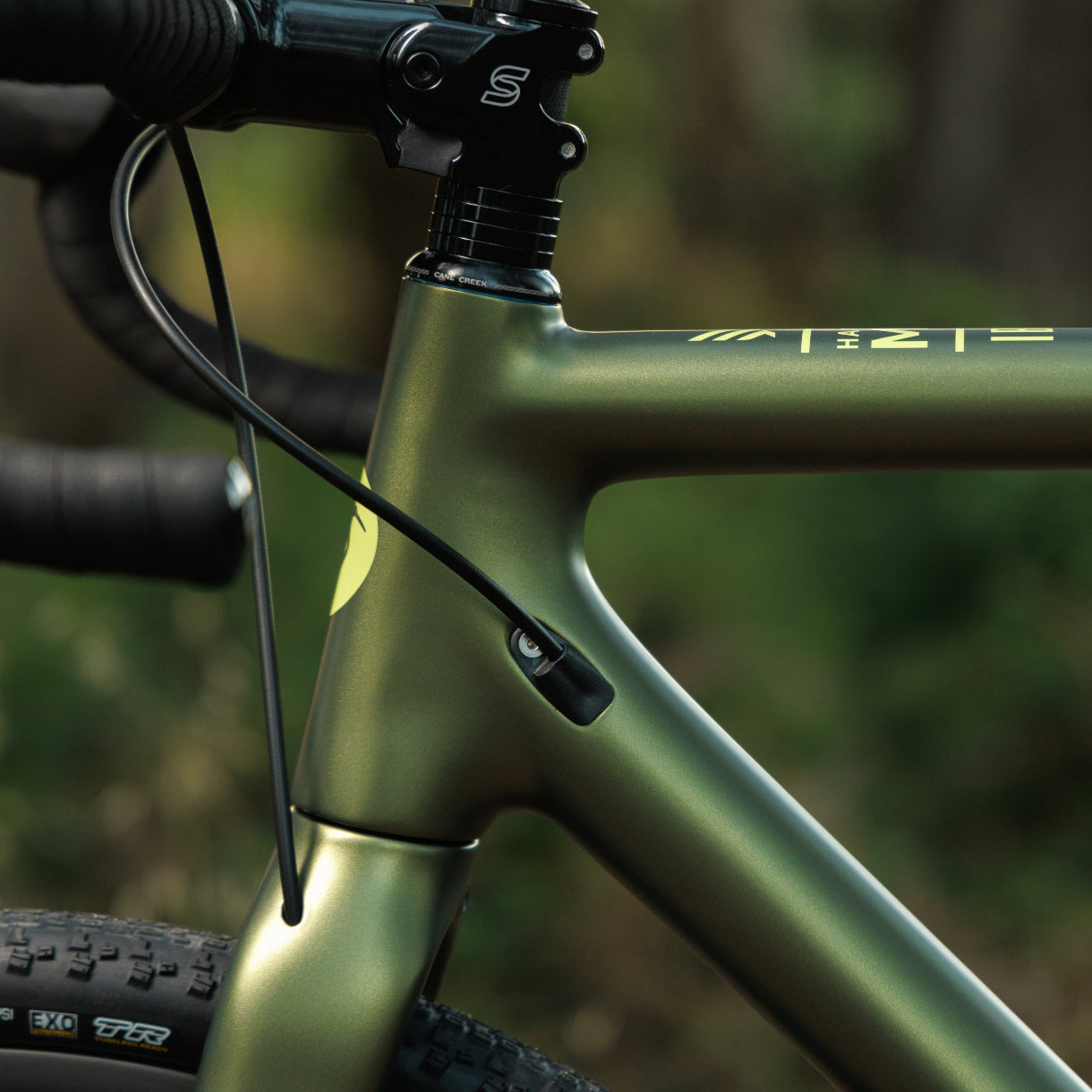

Cable Routing Options Galore

The Hakka MX offers internal routing for 1x drivetrains and a dropper post, plus compatibility with Di2 or AXS 2x gearing and a sleek downtube-mounted Di2 battery.

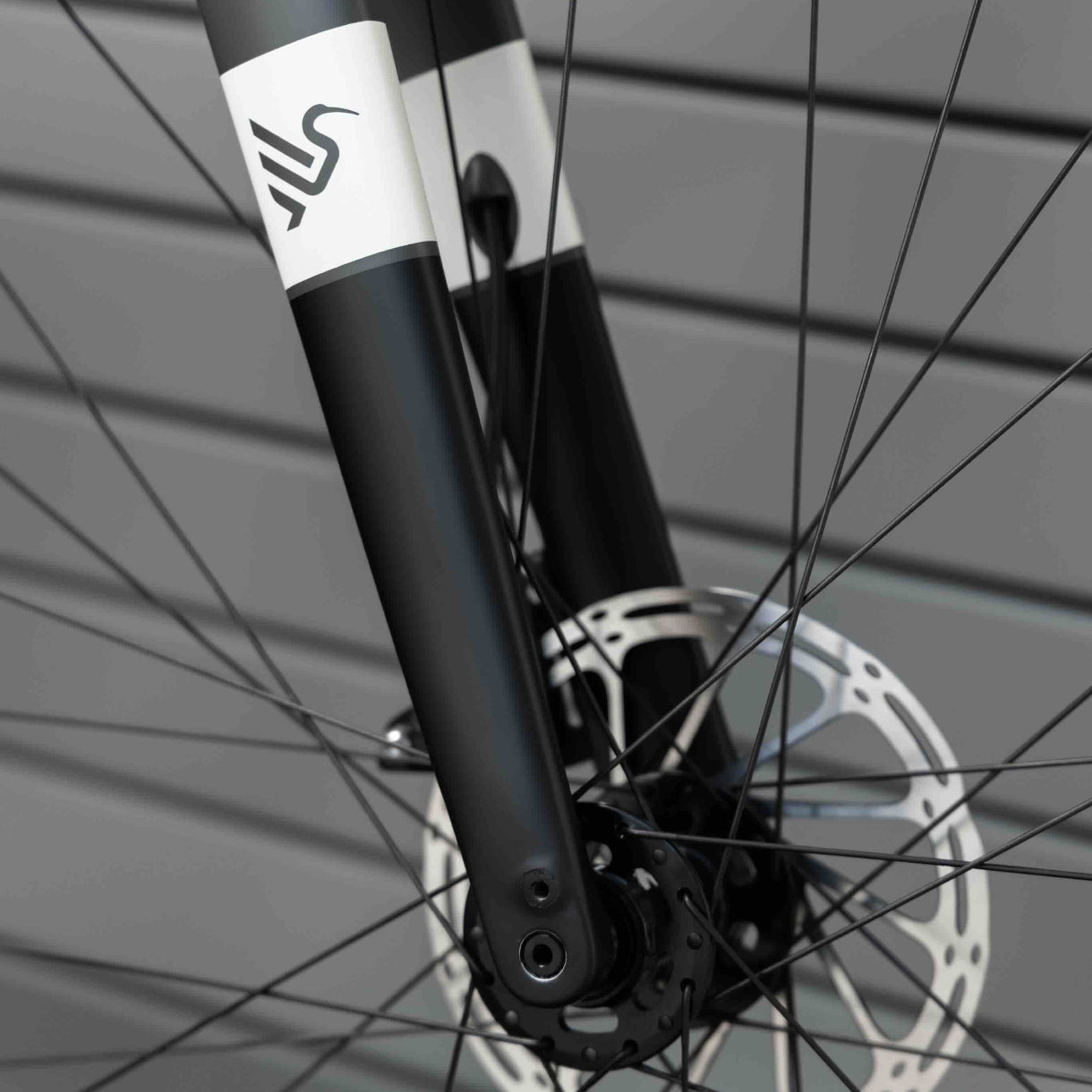

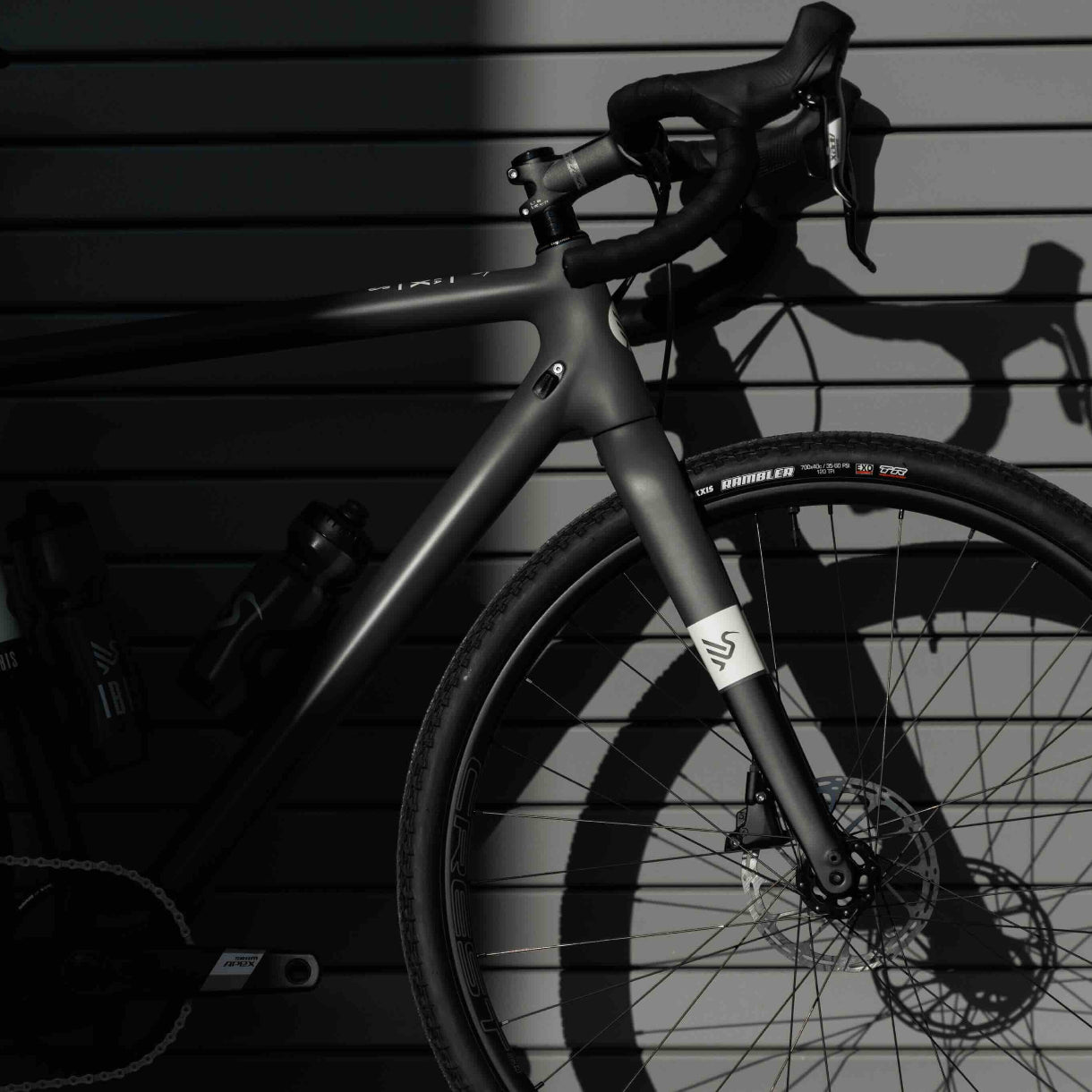

Disc Brakes & Fender Mounts

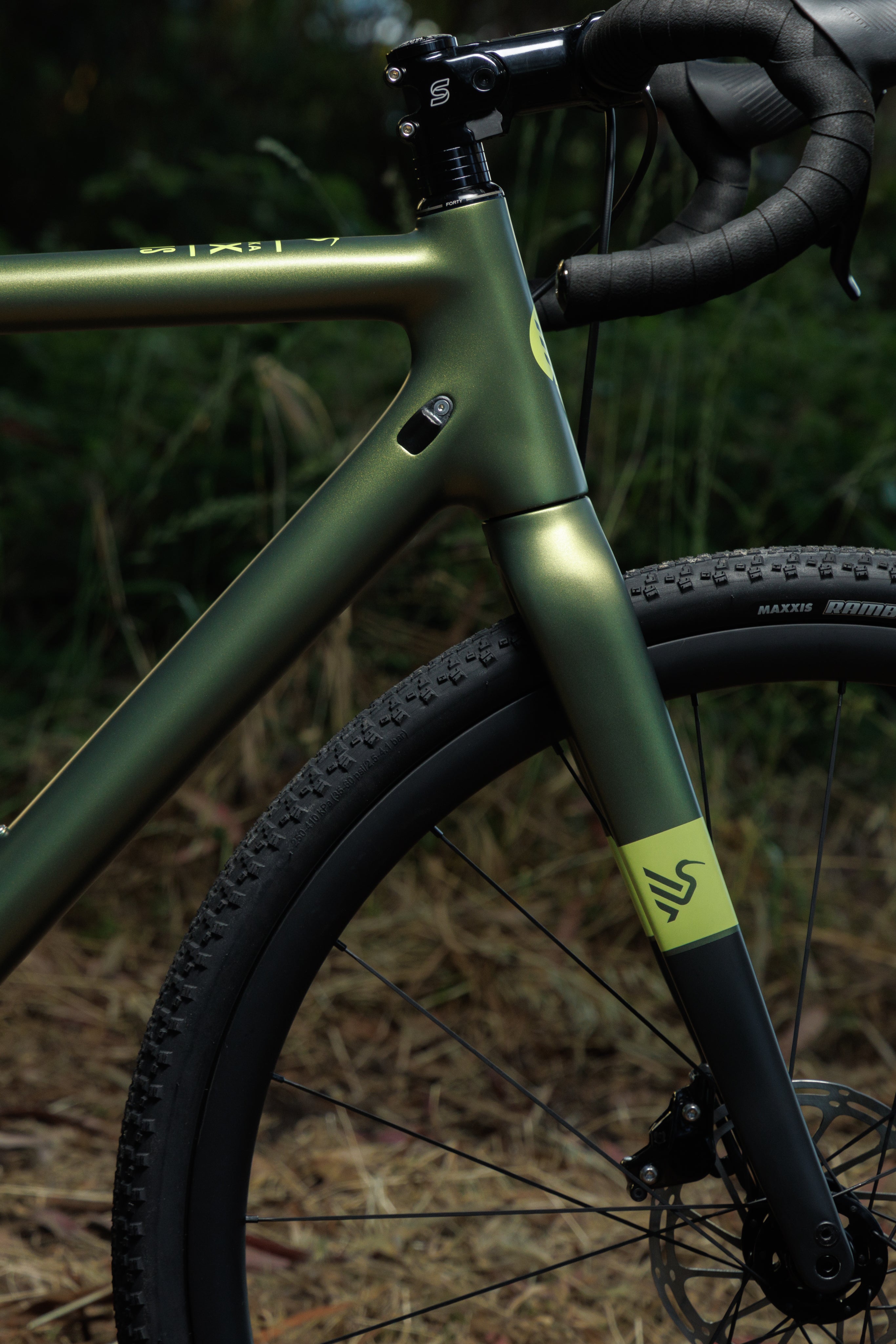

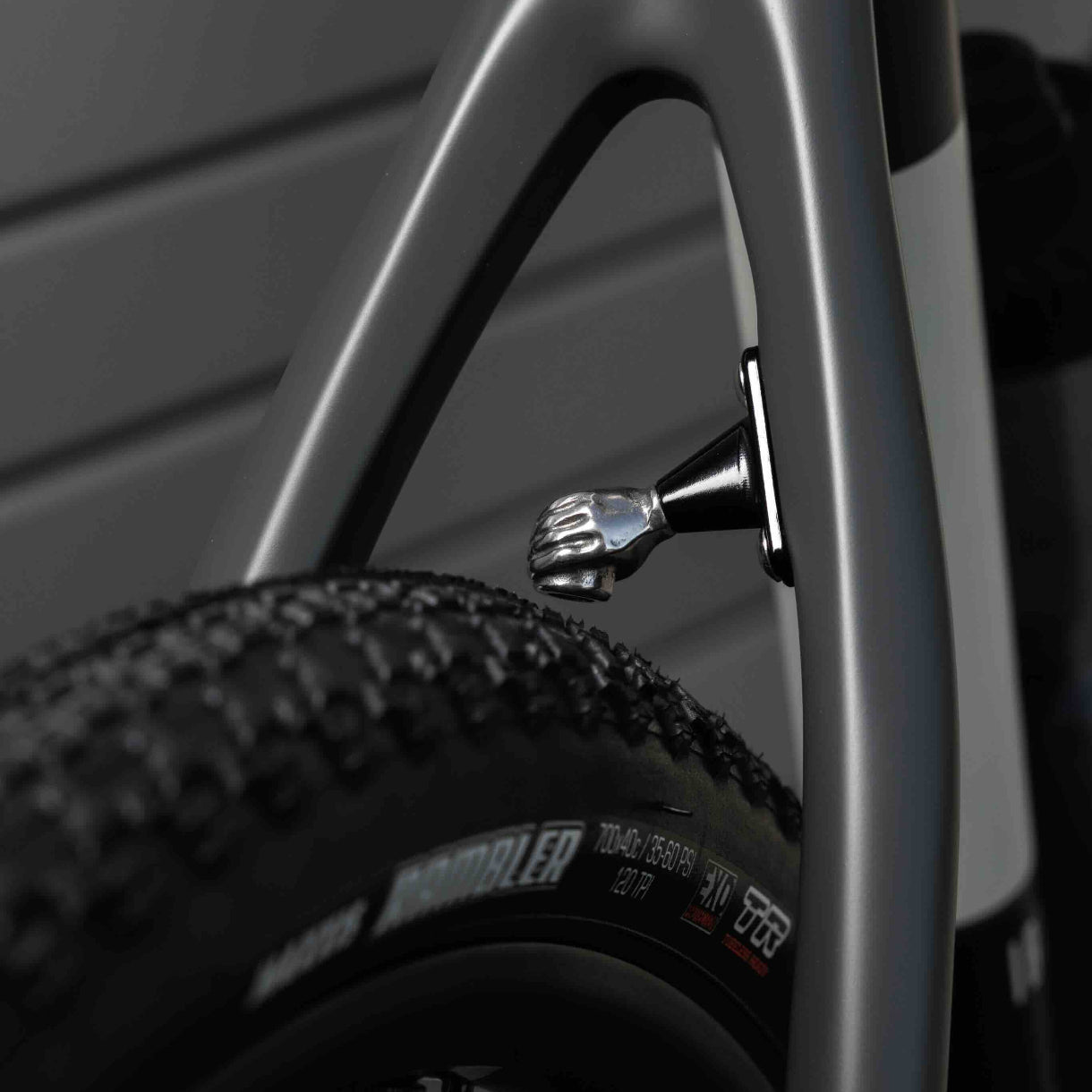

The Hakka MX has flat-mount disc mounts and fits a 160mm rotor. The fork has fender eyelets, internal cable routing, and monster clearance for 700c x 45c tires. There’s also a removable rear fender mount on the seat stays.

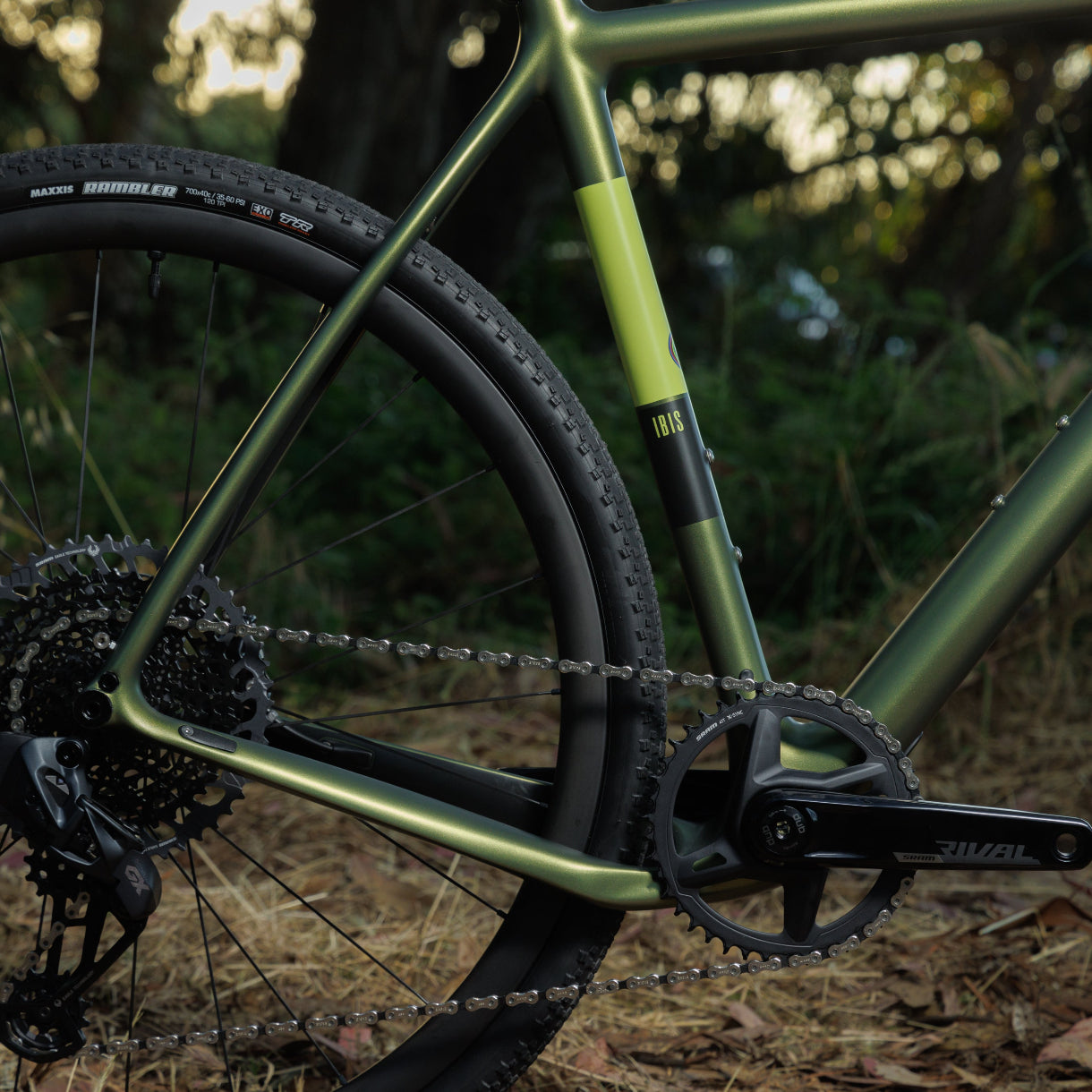

Bottom Bracket

Every bottom bracket under the sun has been tested, and in the end, nothing has proven more reliable than a threaded system. The Hakka is built around the T47 bottom bracket standard, using 30mm bearings to support the latest generation of lightweight cranksets. This approach delivers the ideal balance between a traditional threaded interface and modern 30mm spindle compatibility. It is lightweight, quiet, and highly durable, because no one appreciates a creaky bike.

Five Sizes

The Hakka comes in five frame sizes: 49, 53, 55, 58, 61

Lifetime Warranty

If it's our fault, we'll fix it. Simple as that.

Lightweight

With its ultra versatile geometry and 1000g frame weight, the Hakka MX is just as happy crushing the local club ride as it is jumping barriers or camping out.

Cable Routing Options Galore

The Hakka MX offers internal routing for 1x drivetrains and a dropper post, plus compatibility with Di2 or AXS 2x gearing and a sleek downtube-mounted Di2 battery.

Disc Brakes & Fender Mounts

The Hakka MX has flat-mount disc mounts and fits a 160mm rotor. The fork has fender eyelets, internal cable routing, and monster clearance for 700c x 45c tires. There’s also a removable rear fender mount on the seat stays.

Bottom Bracket

Every bottom bracket under the sun has been tested, and in the end, nothing has proven more reliable than a threaded system. The Hakka is built around the T47 bottom bracket standard, using 30mm bearings to support the latest generation of lightweight cranksets. This approach delivers the ideal balance between a traditional threaded interface and modern 30mm spindle compatibility. It is lightweight, quiet, and highly durable, because no one appreciates a creaky bike.

Five Sizes

The Hakka comes in five frame sizes: 49, 53, 55, 58, 61

Lifetime Warranty

If it's our fault, we'll fix it. Simple as that.

Hakka MX Geometry

70.5–72° Head Tube Angle

73.5–74.5° Seat Tube Angle

430mm Chainstays

Hakka MX Geometry

Measurement	49	53	55	58	61
Seat Tube Length A	455	525	550	575	605
Top Tube Length B	517	539	554	568	589
Head Tube Length C	110	135	155	173	195
Chainstay Length D	430	430	430	430	430
Seat Tube Angle E	74.5°	74°	73.5°	73.5°	73.5°
Head Tube Angle F	70.5°	72°	72°	72°	72°
Wheelbase G	1008	1011	1021	1037	1057
Stack	532	561	580	598	616
Reach	370	377	382	392	406
Bottom Bracket Drop	70	70	70	70	70
Standover Height	729	785	802	827	853

Size Guide

49 150–163cm

53 160–173cm

55 170–183cm

58 180–188cm

61 185–198cm

Hakka MX Setup Details

Frame

Core Specs

Frame materialCarbon fibre monocoque

Frame weight1000g

Wheel size700c or 650b / 27.5"

Rear axle142mm x 12mm thru-axle

Front axle100mm x 12mm thru-axle

Seatpost31.6mm / dropper compatible

Bottom bracketT47 threaded, 68mm, external cups

HeadsetIS 41/28.6 upper, IS 52/40 lower

Fit

Clearance & Compatibility

Rear tyre clearanceUp to 700c x 40c or 27.5" x 50c

Fork rakeOptimised around 47mm

Front brakeFlat-mount disc, 160mm rotor

Rear brakeFlat-mount disc, 140mm rotor

Drivetrain1x or 2x compatible

Max 1x ring48t

Minimum ring34t

Chain line45.0–45.5mm, or 47.5mm with SRAM Wide

Guides

Setup PDFs

Use the Ibis bottom bracket and cable port guides when building or servicing the Hakka MX.

Hakka MX T47 Bottom Bracket Guide Hakka MX Cable Port Guide

Torque

Torque Specs

Cable port2 Nm / grease

Rear brake caliper6 Nm / Loctite 243

Seat binder5 Nm / Ti anti-seize

Seat clamp bolt6–8 Nm / grease

Derailleur hanger bolt5 Nm / grease

Hexle rear axleTighten firmly with a 5mm multi-tool
